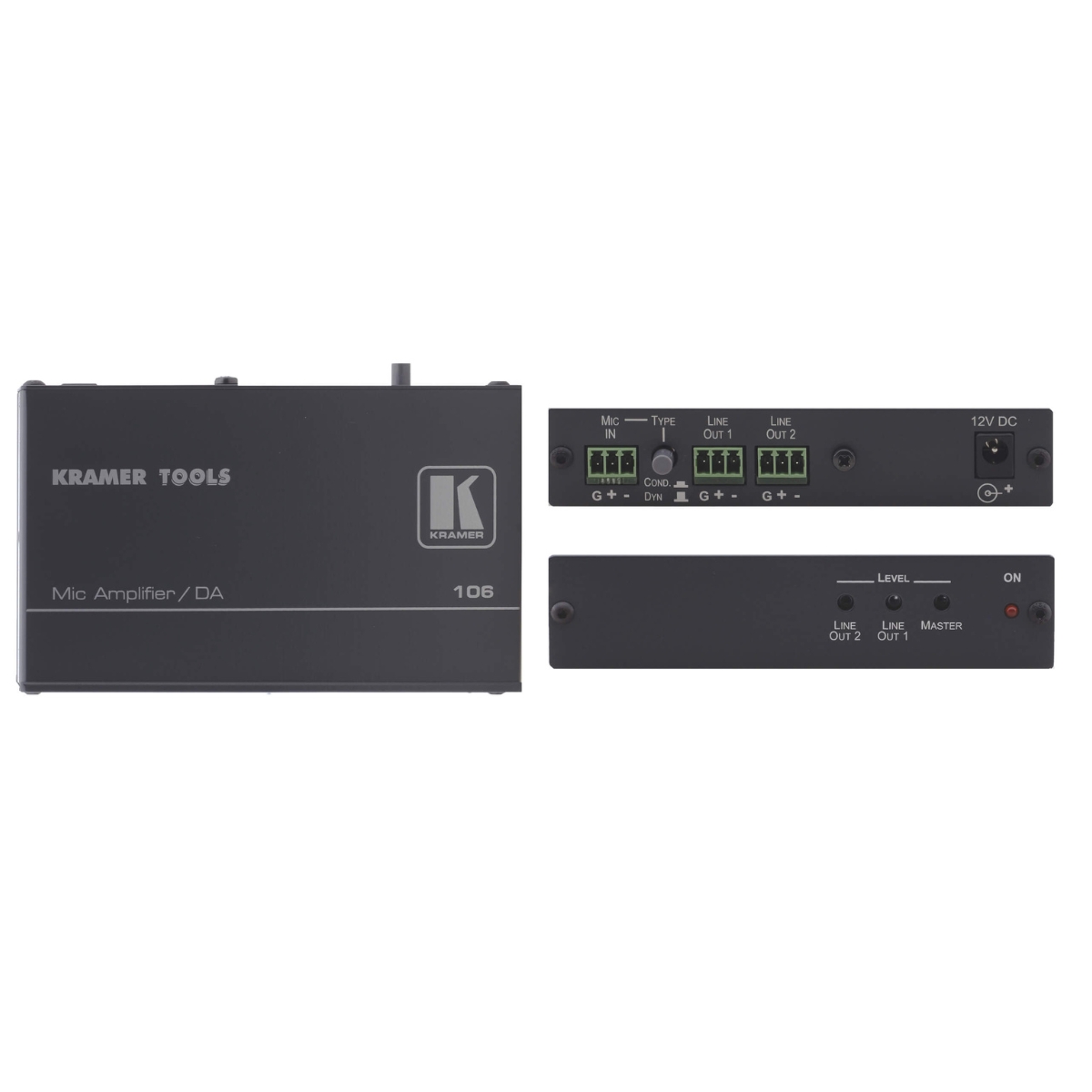

106 Microphone to Line Distribution Amplifier

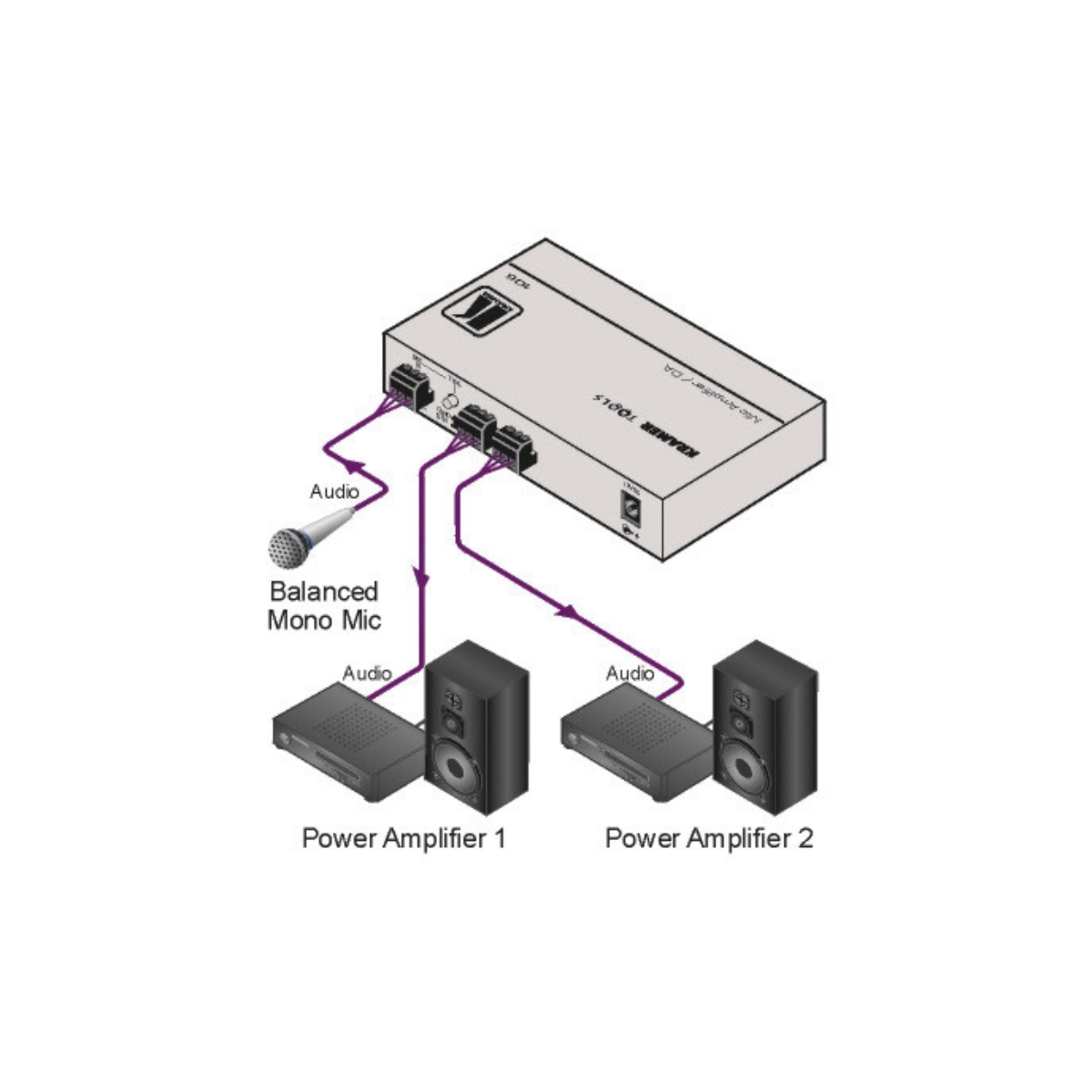

The 106 is a high-quality balanced mono microphone distribution amplifier that accepts one dynamic or condenser microphone input and distributes the signal to two line-level outputs for professional audio applications.
- Mic Input — Condenser or Dynamic
- Phantom Power — 48V DC
- S/N Ratio — 81dB
- Level Controls
- Connectors — Terminal Blocks
| INPUT | 1 balanced mono microphone on a 3−pin terminal block connector |
| OUTPUTS | 2 balanced mono line outputs on 3−pin terminal block connectors |
| MAX. OUTPUT LEVEL | 27Vpp (22dBu) |
| BANDWIDTH | >40kHz |
| S/N RATIO | 81dB |
| CONTROLS | Mic. type selector pushbutton, −14dB to +68dB LINE OUT trimmers (master trimmer at max.), +37dB to +68dB master trimmer (line out trimmer at max.) |
| COUPLING | Input, AC; output, DC |
| INPUT IMPEDANCE | ~10kΩ |
| OUTPUT IMPEDANCE | 50Ω |
| GAIN | Up to 68dB |
| AUDIO THD + NOISE | 0.18% |
| AUDIO 2nd HARMONIC | 0.16% |
| POWER CONSUMPTION | 12V DC, 220mA |
| INCLUDED ACCESSORIES | Power supply, mounting bracket |
