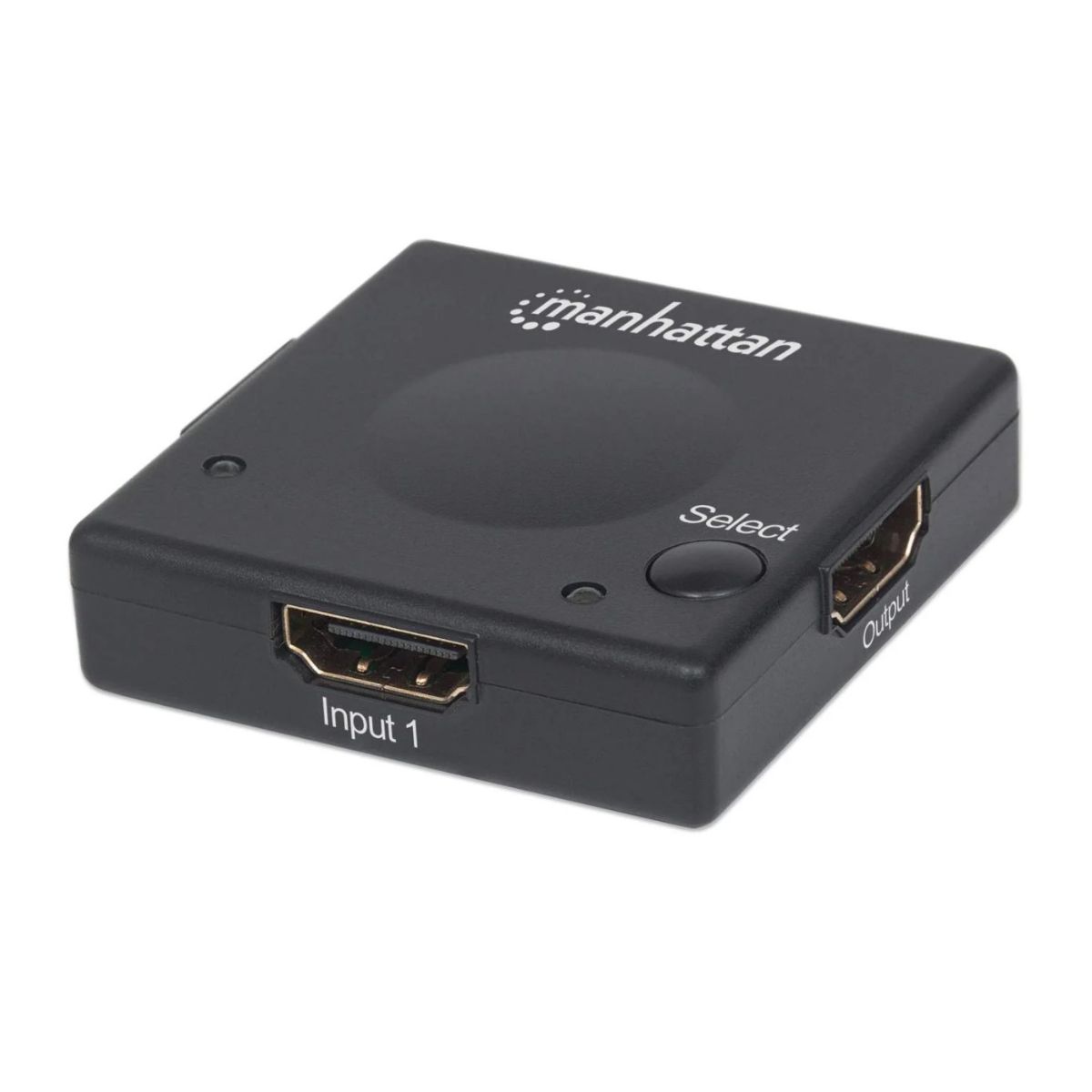

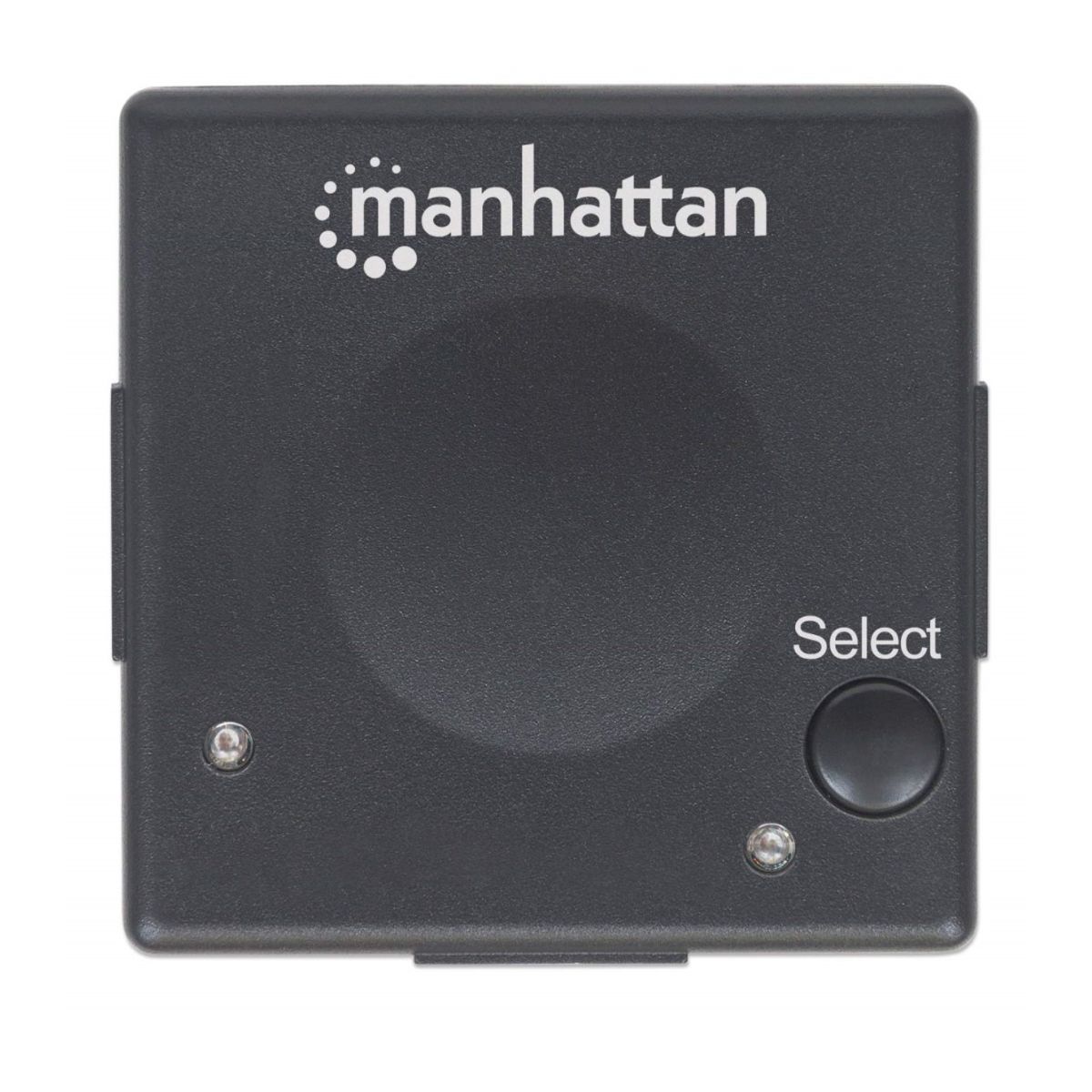

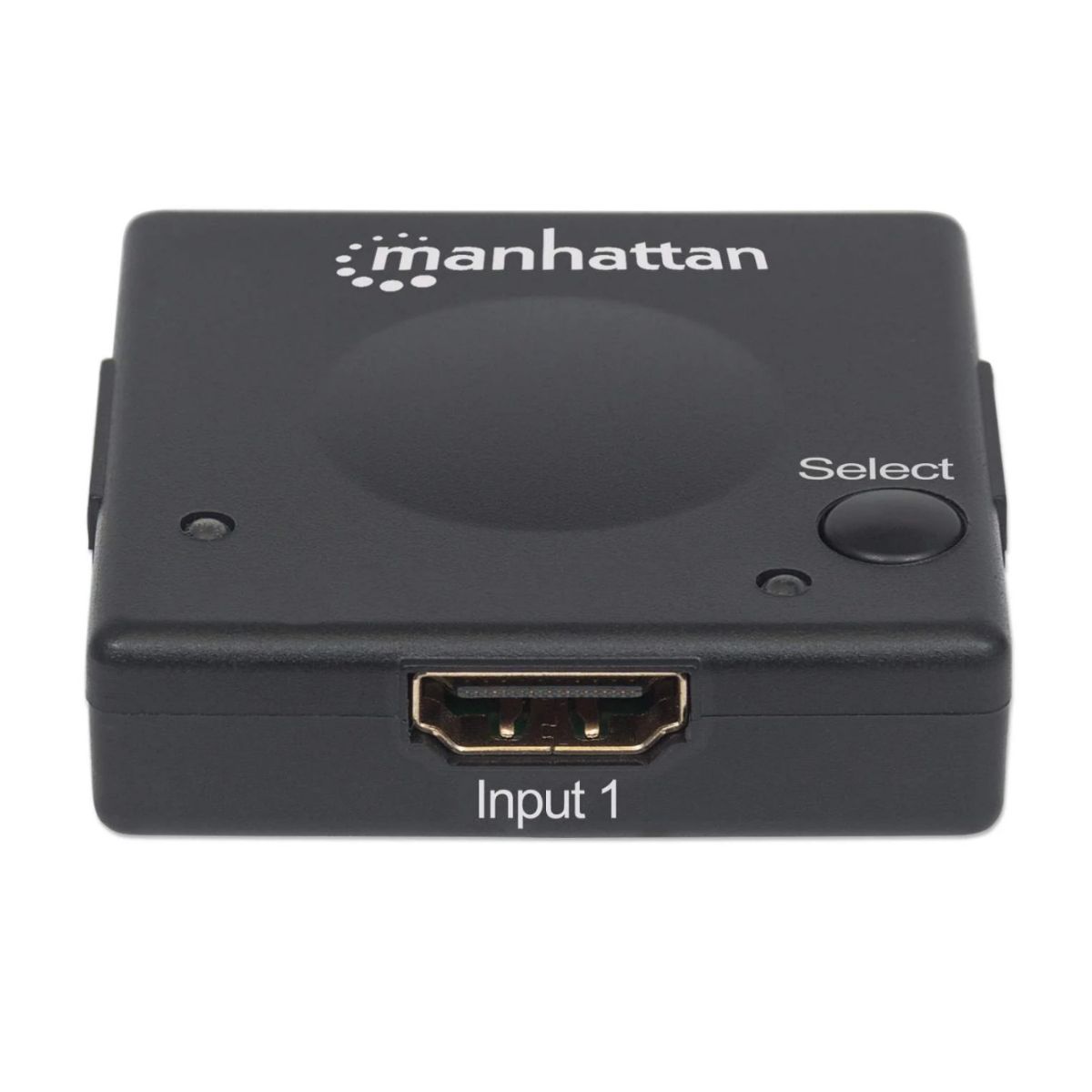

1080p 2-Port HDMI Switch (9207911)
The Manhattan 1080p 2-Port HDMI Switch connects two HDMI video sources—such as gaming consoles, Blu-ray players, satellite receivers, and set-top boxes—to a single high-definition display. It provides a convenient and reliable way to switch between connected devices without repeatedly reconnecting cables.

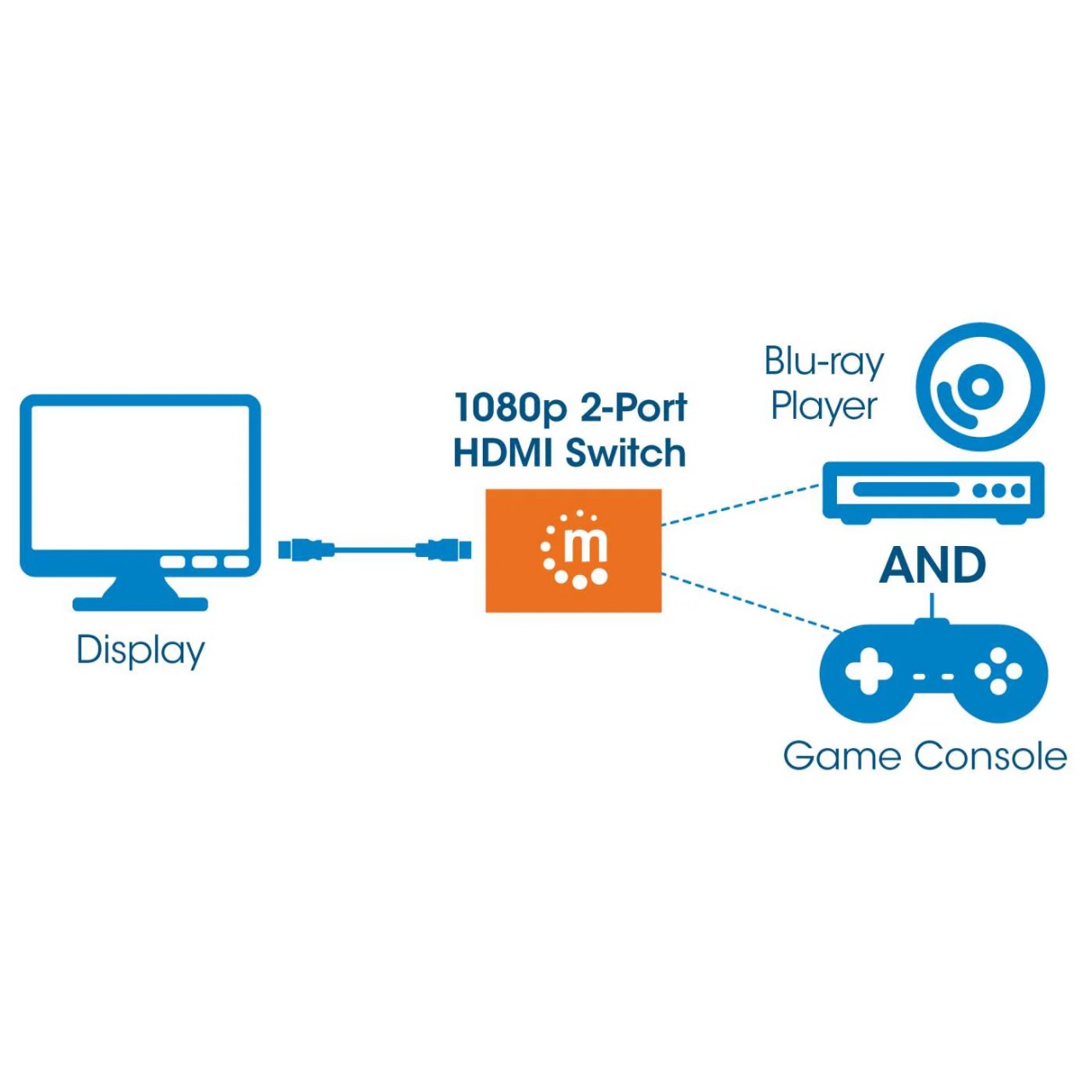

- Connects two HD video sources to a single HDMI display
- Supports video amplifier bandwidth up to 250 MHz and 2.5 Gbps per channel (7.5 Gbps total) for 1080p displays
- 1080p resolution, 3D, Deep Color
- Supports 36-bit Deep Color (12-bits per channel), 4:4:4 chroma subsampling
- Supports automatic switching (when an HD signal is detected) and manual switching (between sources with the push of a button)
- Supports LPCM, DTS Digital, DTS-HD Master Audio, and Dolby TrueHD audio
- Supports 3D video and 8-bit (24-bits total) Deep Color
- Supports video amplifier bandwidth up to 2.5 Gbps for a 1080p display
- Works with PlayStation and Xbox game systems, Blu-ray players, set-top boxes, satellite receivers, and more
- HDCP compliant
- Plug-and-Play
| HDMI 1.3b |
| HDCP 1.0 / 1.1 |
| CE |
| FCC |
| RoHS2 |
| General |
| Source-to-switch range: up to 5 m (16 ft.) |
| Switch-to-display range: up to 5 m (16 ft.) |
| Power consumption: 5 volts |
| Connections |
| One HDMI male (output) |
| Two HDMI female (input) |
