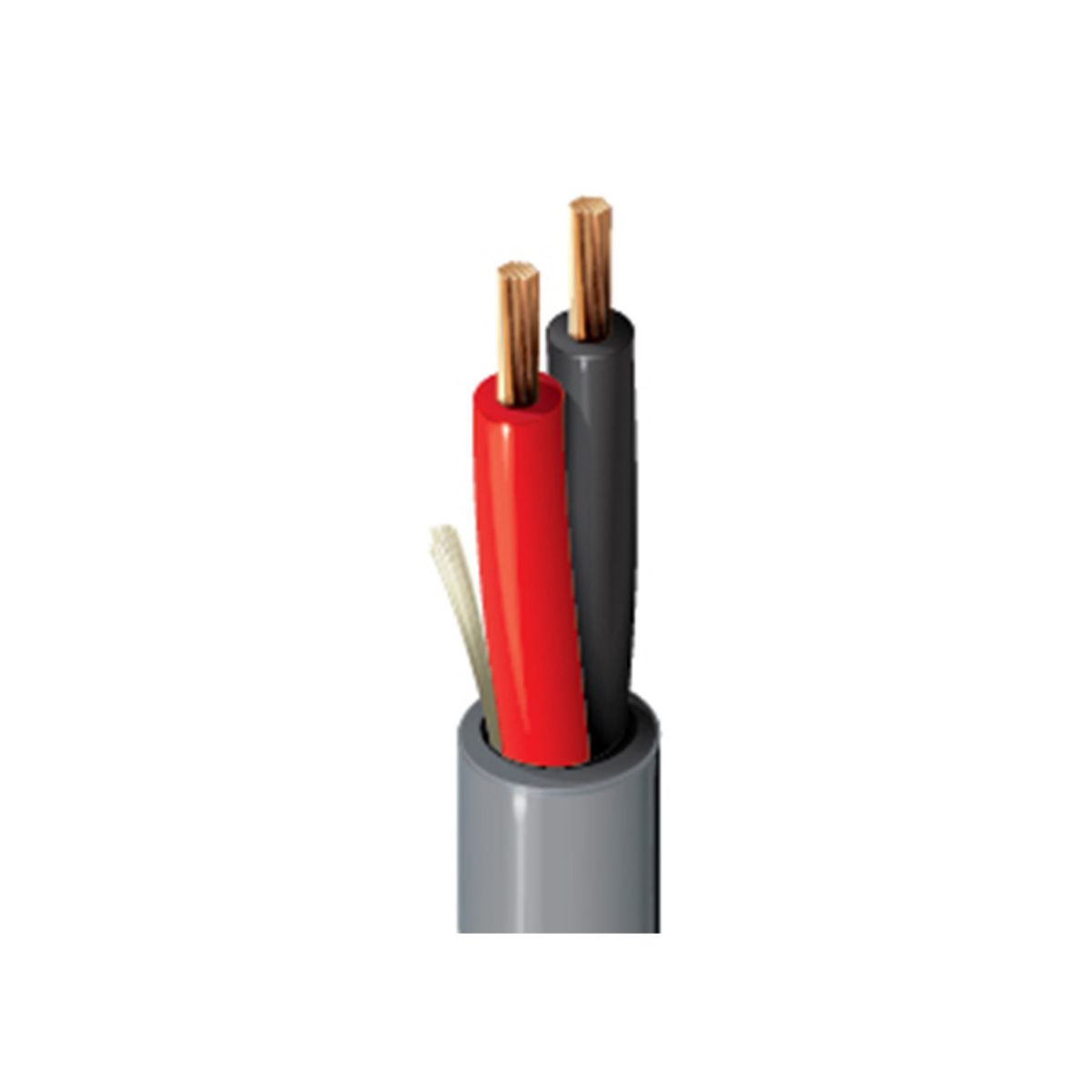

1307A 16 AWG OFC SPEAKER CABLE
Speaker Cable, 2 Conductor 16 AWG (65 x 34) Oxygen-Free Bare Copper (High Conductivity), PE Insulation, PVC Jacket, CM, Direct Burial, Flexible
Conductor
| Element | No. of Elements | Size | Stranding | Material |
| Conductor(s) | 2 | 16 AWG | 65x34 | BC - Bare Copper (High Conductivity) |
Insulation
| Element | Material | Nom. Thickness | Nom. Insulation Diameter | Color Code |
| Conductor(s) | PE - Polyethylene | 0.013 in (0.33 mm) | 0.083 in (2.1 mm) | Black, Red |
Electricals
| Element | Nom. Conductor DCR | Nom. Capacitance Cond-to-Cond | Nom. Inductance | Nom. Velocity of Prop. | Max. Current |
| Conductor(s) | 4.27 Ohm/1000ft | 19.9 pF/ft (65.3 pF/m) | 0.16 µH/ft (0.52 µH/m) | 66% | 18 Amps per conductor @ 30°C |
