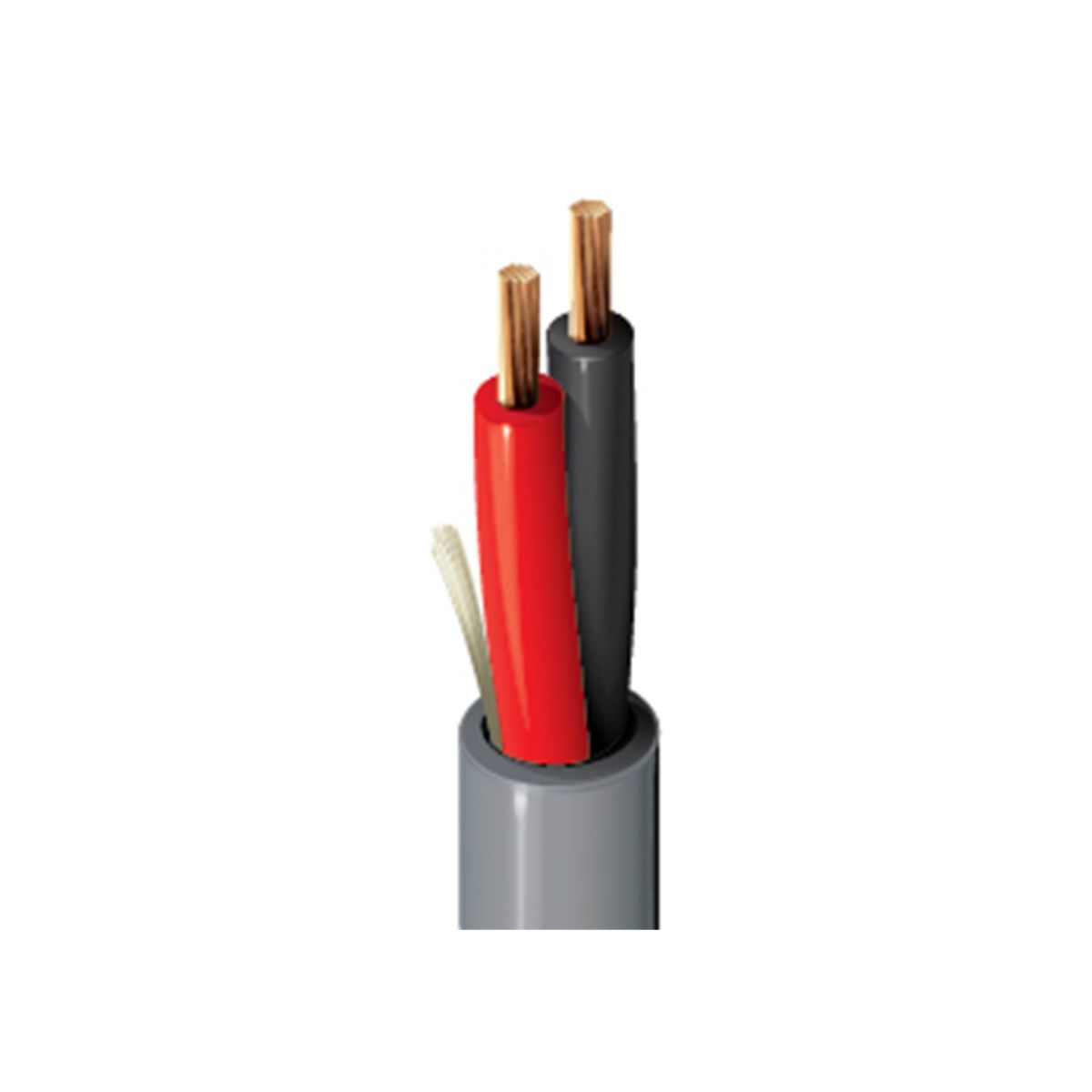

1311A 12 AWG OFC SPEAKER CABLE
Speaker Cable, 2 Conductor 12 AWG (168 x 34) Oxygen-Free Bare Copper (High Conductivity), PE Insulation, PVC Jacket, CM, Direct Burial, Flexible
Conductor
| Element | No. of Elements | Size | Stranding | Material |
| Conductor(s) | 2 | 12 AWG | 168x34 | BC - Bare Copper (High Conductivity) |
Insulation
| Element | Material | Nom. Thickness | Nom. Insulation Diameter | Color Code |
| Conductor(s) | PE - Polyethylene | 0.018 in (0.46 mm) | 0.14 in (3.6 mm) | Black, Red |
Electricals
| Element | Nom. Conductor DCR | Nom. Capacitance Cond-to-Cond | Nom. Inductance | Nom. Velocity of Prop. | Max. Current |
| Conductor(s) | 1.6 Ohm/1000ft | 22.3 pF/ft (73.2 pF/m) | 0.15 µH/ft (0.49 µH/m) | 66% | 30 Amps per conductor @ 30°C |
