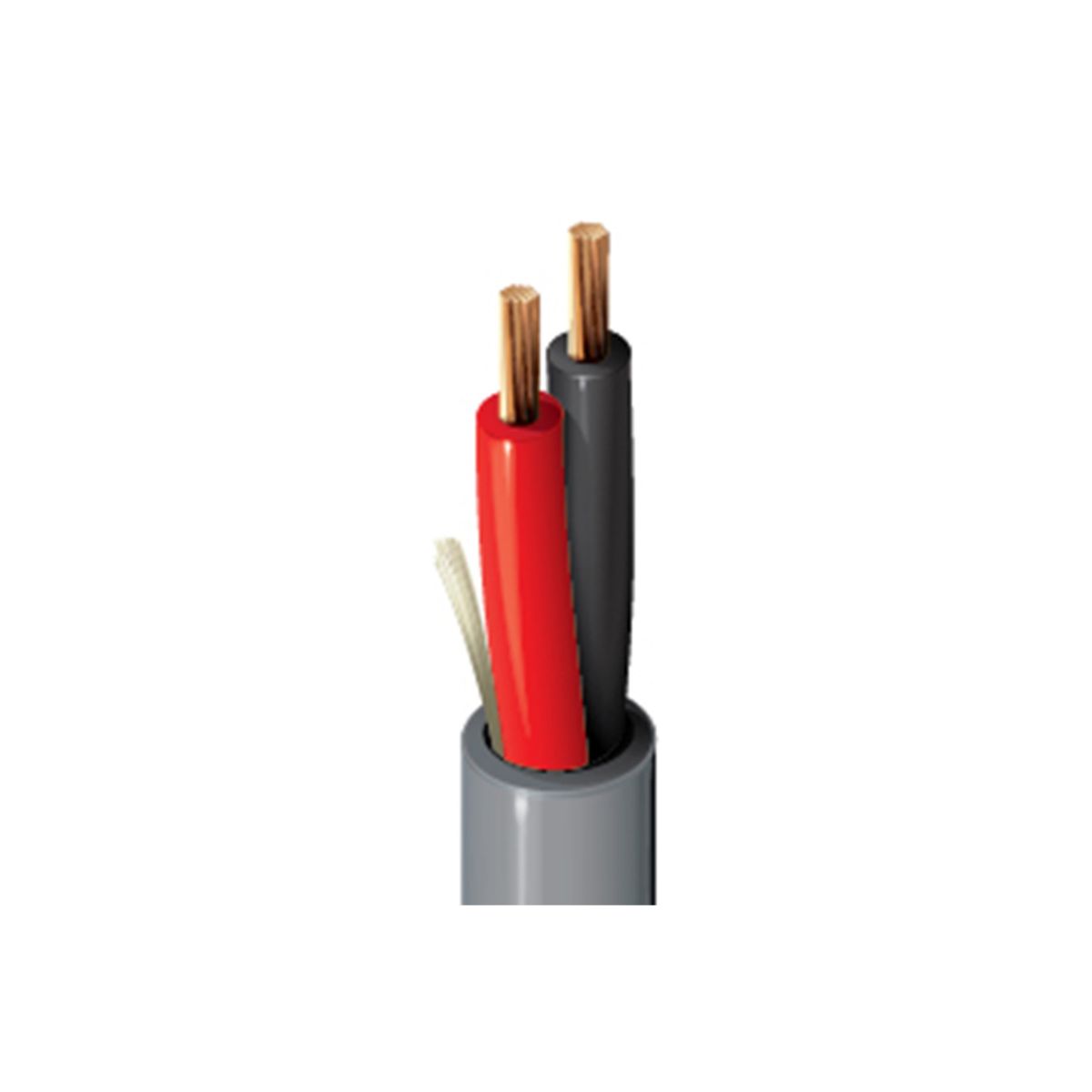

1313A 10 AWG OFC SPEAKER CABLE
Speaker Cable, 2 Conductor 10 AWG (259 x 34) Oxygen-Free Bare Copper (High Conductivity), PE Insulation, PVC Jacket, CM, Direct Burial, Flexible
Conductor
| Element | No. of Elements | Size | Stranding | Material |
| Conductor(s) | 2 | 10 AWG | 259x34 | BC - Bare Copper (High Conductivity) |
Insulation
| Element | Material | Nom. Thickness | Nom. Insulation Diameter | Color Code |
| Conductor(s) | PE - Polyethylene | 0.019 in (0.48 mm) | 0.17 in (4.3 mm) | Black, Red |
Electricals
| Element | Nom. Conductor DCR | Nom. Capacitance Cond-to-Cond | Nom. Inductance | Nom. Velocity of Prop. | Max. Current |
| Conductor(s) | 1 Ohm/1000ft | 23.2 pF/ft (76.1 pF/m) | 0.15 µH/ft (0.49 µH/m) | 66% | 40 Amps per conductor @ 30°C |
