1510C Audio Snake Cable

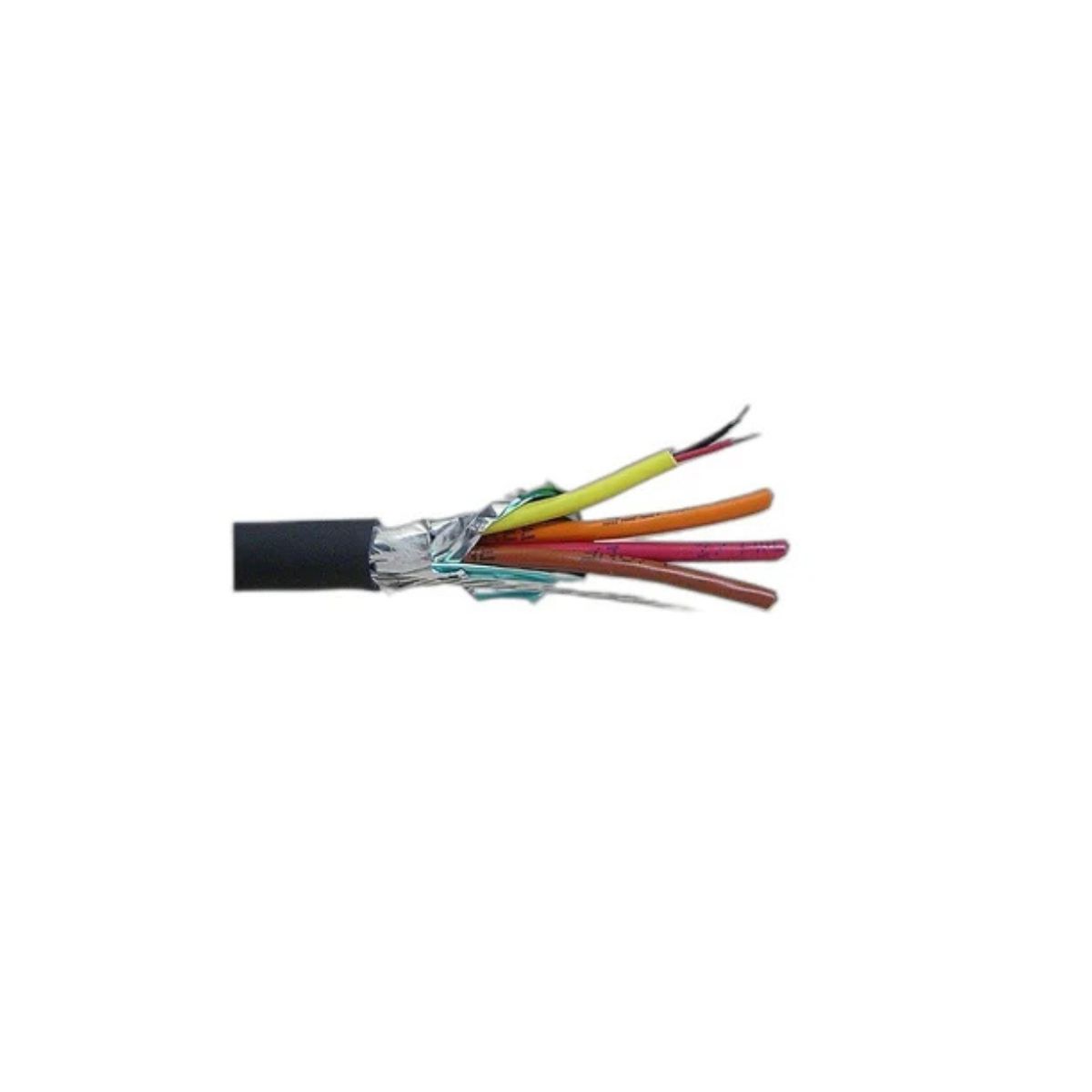

Audio Snake Cable, CM-Rated, 4-24 AWG tinned copper pairs, polyolefin insulation, individually shielded with Beldfoil® bonded to numbered/color-coded PVC jackets, so both strips simultaneously, overall Beldfoil® shield, drain, flexible PVC jacket
Conductor
| Element | No. of Elements | Size | Stranding | Material |
| Conductor(s) | 4 | 24 AWG | 7x32 | TC - Tinned Copper |
Electricals
| Nom. Conductor DCR | Nom. Inner Shield DCR | Nom. Capacitance Cond-to-Cond | Nom. Capacitance Cond-to-Other (Conds + Shield) | Nom. Inductance | Nom. Velocity of Prop. | Max. Current |
| 28.3 Ohm/1000ft | 20.63 Ohm/1000ft (67.68 Ohm/km) | 31 pF/ft (100 pF/m) | 58 pF/ft (190 pF/m) | 0.18 µH/ft (0.59 µH/m) | 66% | 8.4 Amps per Conductor at 30ºC |
