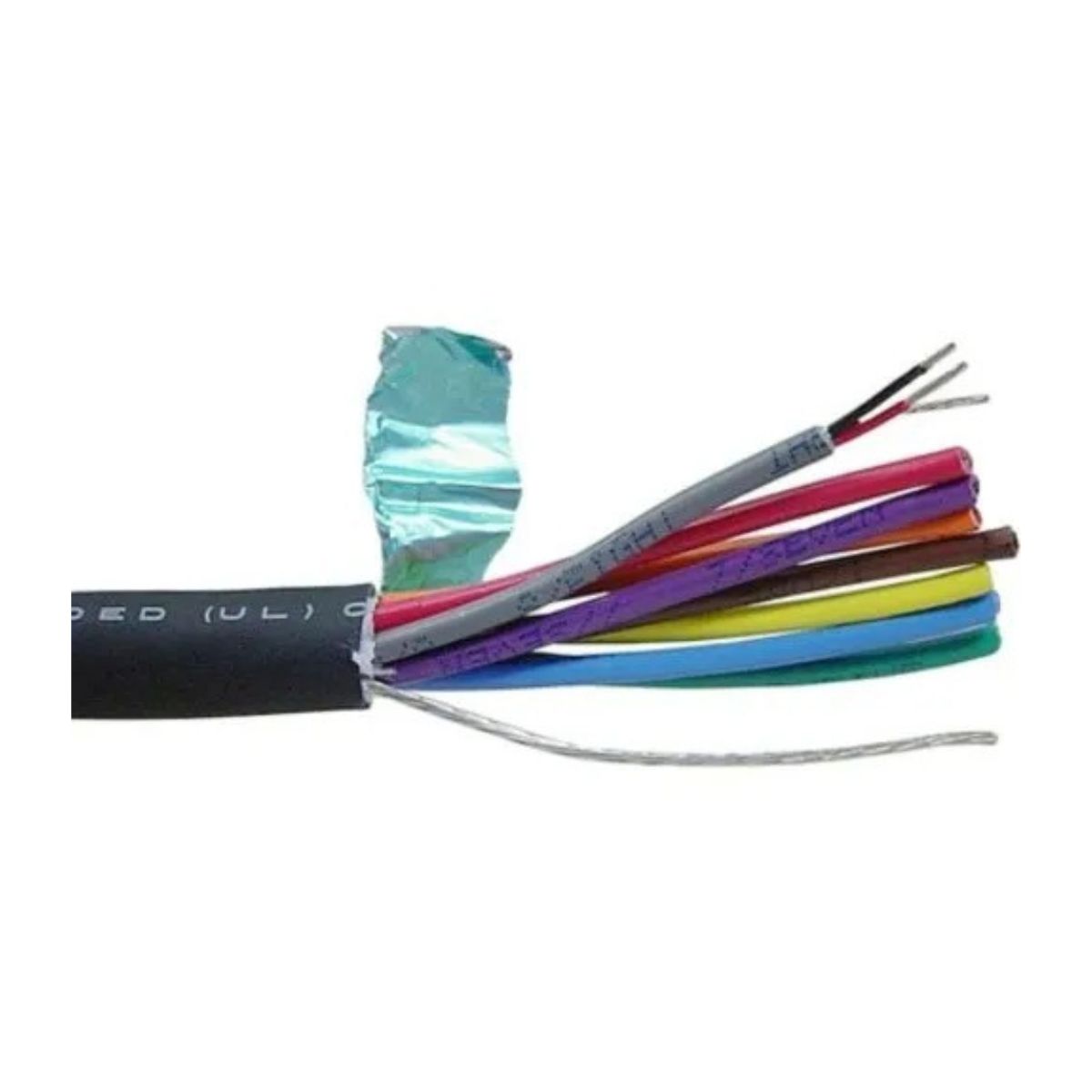

1512C Audio Snake Cable #24-8pr
Audio Snake Cable, CM-Rated, 8-24 AWG tinned copper pairs, polyolefin insulation, individually shielded with Beldfoil® bonded to numbered/color-coded PVC jackets, so both strips simultaneously, overall Beldfoil® shield, drain, flexible PVC jacket
Conductor
| Size | Stranding | Material |
| 24 | 7x32 | TC - Tinned Copper |
Insulation
| Material | Nom. Thickness | Nom. Insulation Diameter | Color Code |
| PP - Polypropylene | 0.008 (unece.unit.INH) | 0.04 in (1.0 mm) | Brown, Red, Orange, Yellow, Green, Blue, Purple, Gray, Red & Black |
Electricals
| Nom. Conductor DCR | Nom. Capacitance Cond-to-Cond | Nom. Capacitance Cond-to-Other (Conds + Shield) | Nom. Inductance | Nom. Velocity of Prop. | Max. Current |
| 23.3 (unece.unit.Ohm/1000ft) | 31 pF/ft (100 pF/m) | 58 pF/ft (190 pF/m) | 0.18 µH/ft (0.59 µH/m) | 66% | 1.05 Amps per Conductor at 25ºC |
