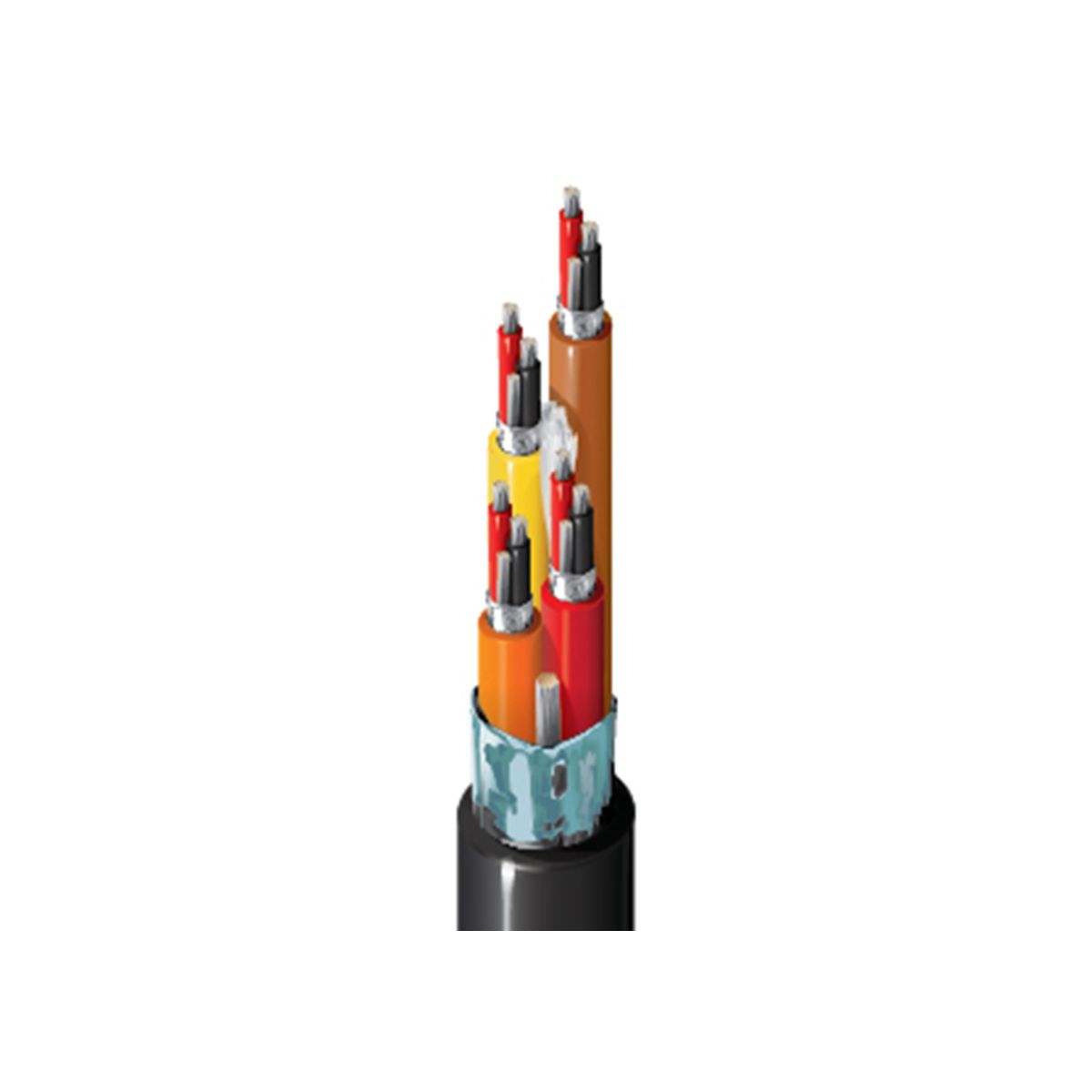

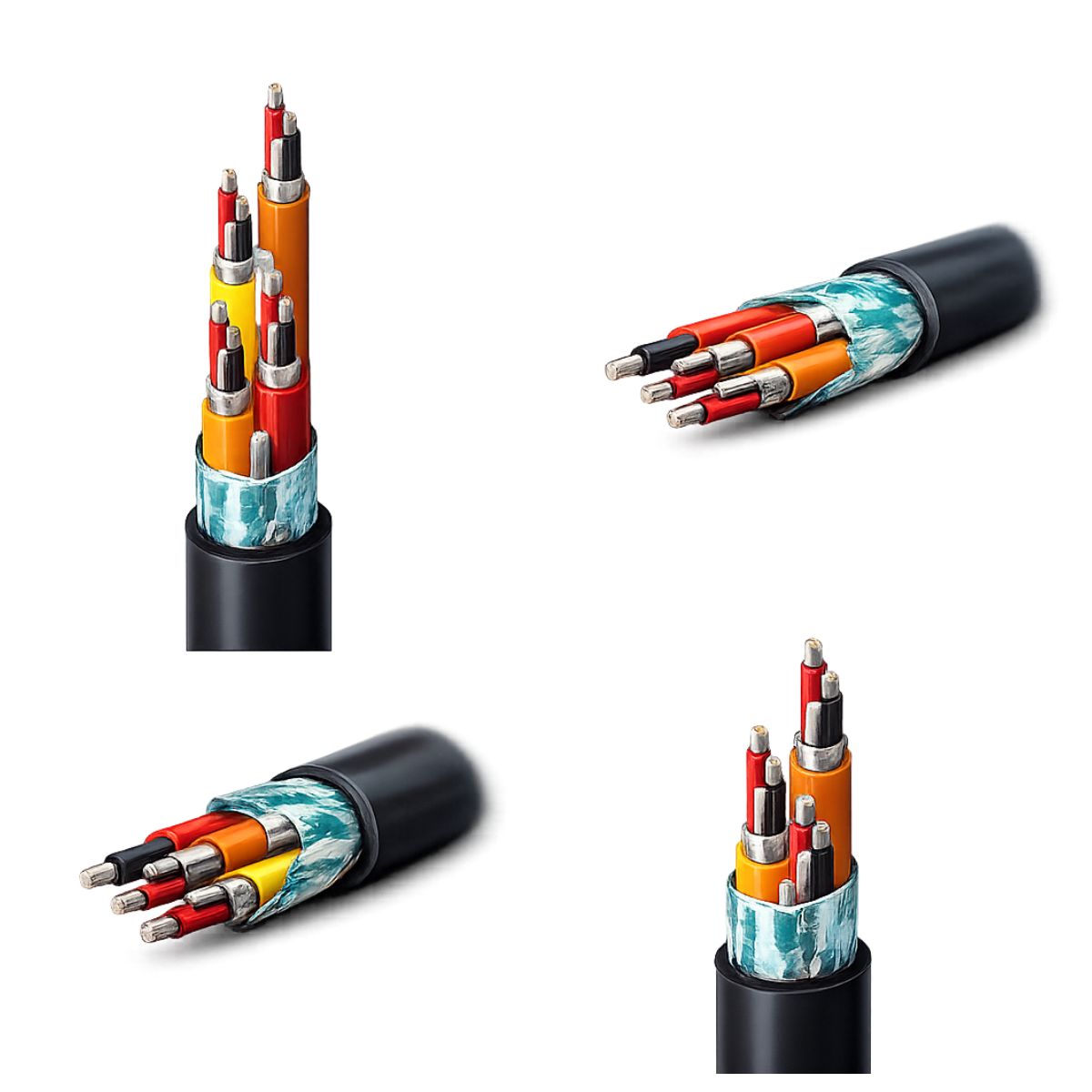

1513C 12 PAIR SNAKE CABLE - AUDIO
Audio Snake Cable, 12 Pair 24 AWG (7 x 32) Tinned Copper, PP Insulation, Individually Foil Shielded and PVC Jacketed, Overall Beldfoil® Shield, PVC jacket, Ripcord, CM, Flexible
Conductor
| Element | No. of Elements | Size | Stranding |
| Pair(s) | 12 | 24 AWG | 7x32 |
Insulation
| Element | Material | Nom. Thickness | Nom. Insulation Diameter | Color Code | Notes |
| Pair(s) | PP - Polypropylene | 0.008 in (0.20 mm) | 0.04 in (1.0 mm) | Black & Red, Yellow, Green, Blue, Violet, Grey, White, Black, Tan, Pink, Brown, Red, Orange | The Colors represented in these rows are for the inner jacket colors |
Electricals
| Element | Nom. Conductor DCR | Nom. Capacitance Cond-to-Cond | Nom. Capacitance Cond-to-Other (Conds + Shield) | Max. Current | Nom. Inductance | Nom. Velocity of Prop. |
| Pair(s) | 23.3 Ohm/1000ft | 31 pF/ft (100 pF/m) | 58 pF/ft (190 pF/m) | 1.05 Amps per conductor @ 25°C | 0.18 µH/ft (0.59 µH/m) | 66% |
