4-Port Dual-Monitor HDMI KVM Switch (153539)
The Manhattan 4-Port Dual-Monitor HDMI KVM Switch provides convenient access and control of up to four HDMI/USB-equipped computers using a single keyboard, mouse, and up to two monitors. Its included combo cables simplify installation by connecting directly to the system without requiring additional cables.
- Controls four HDMI- and USB-A-equipped computers from a single keyboard and mouse and up to two monitors
- Full stereo audio support through 3.5 mm speaker and microphone connections

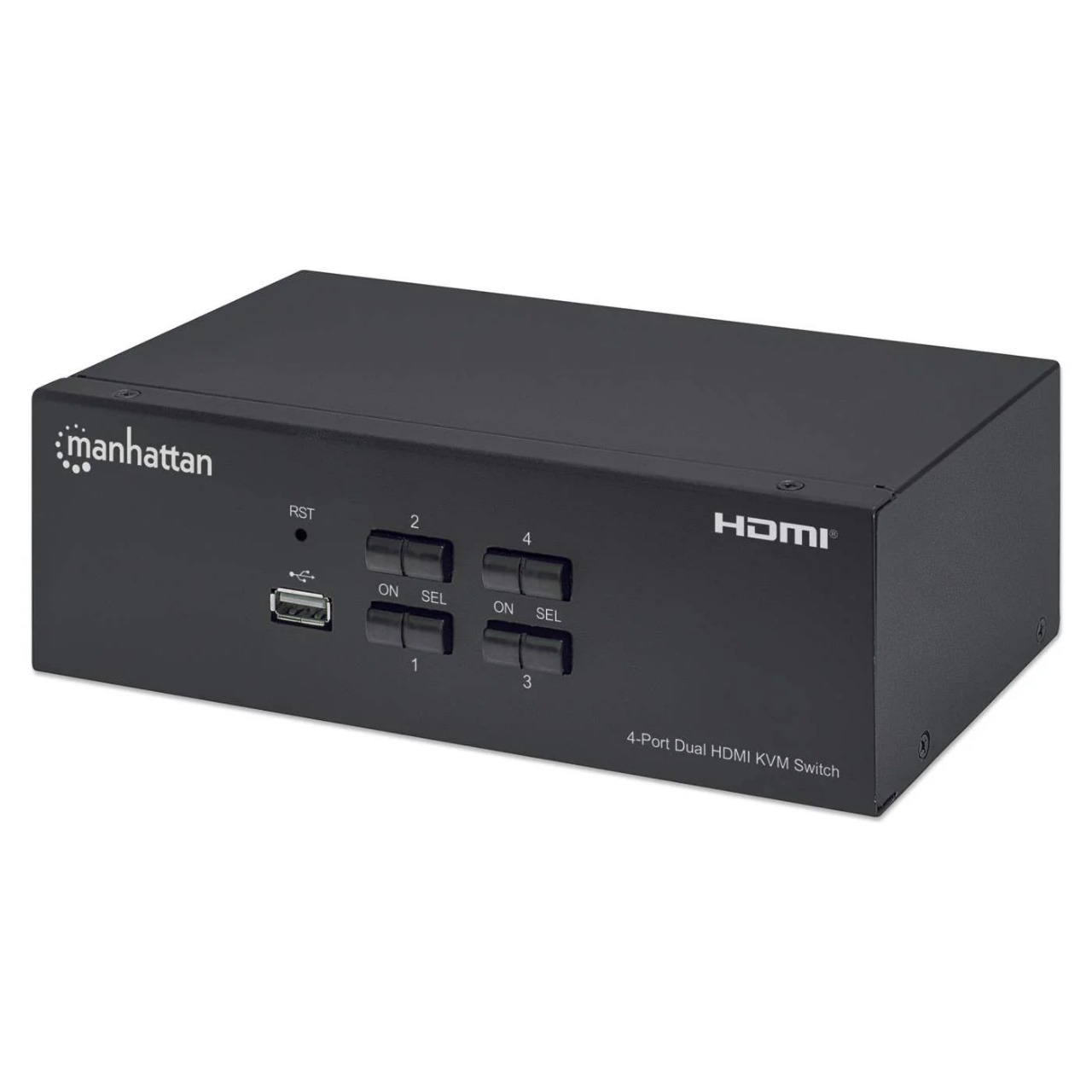

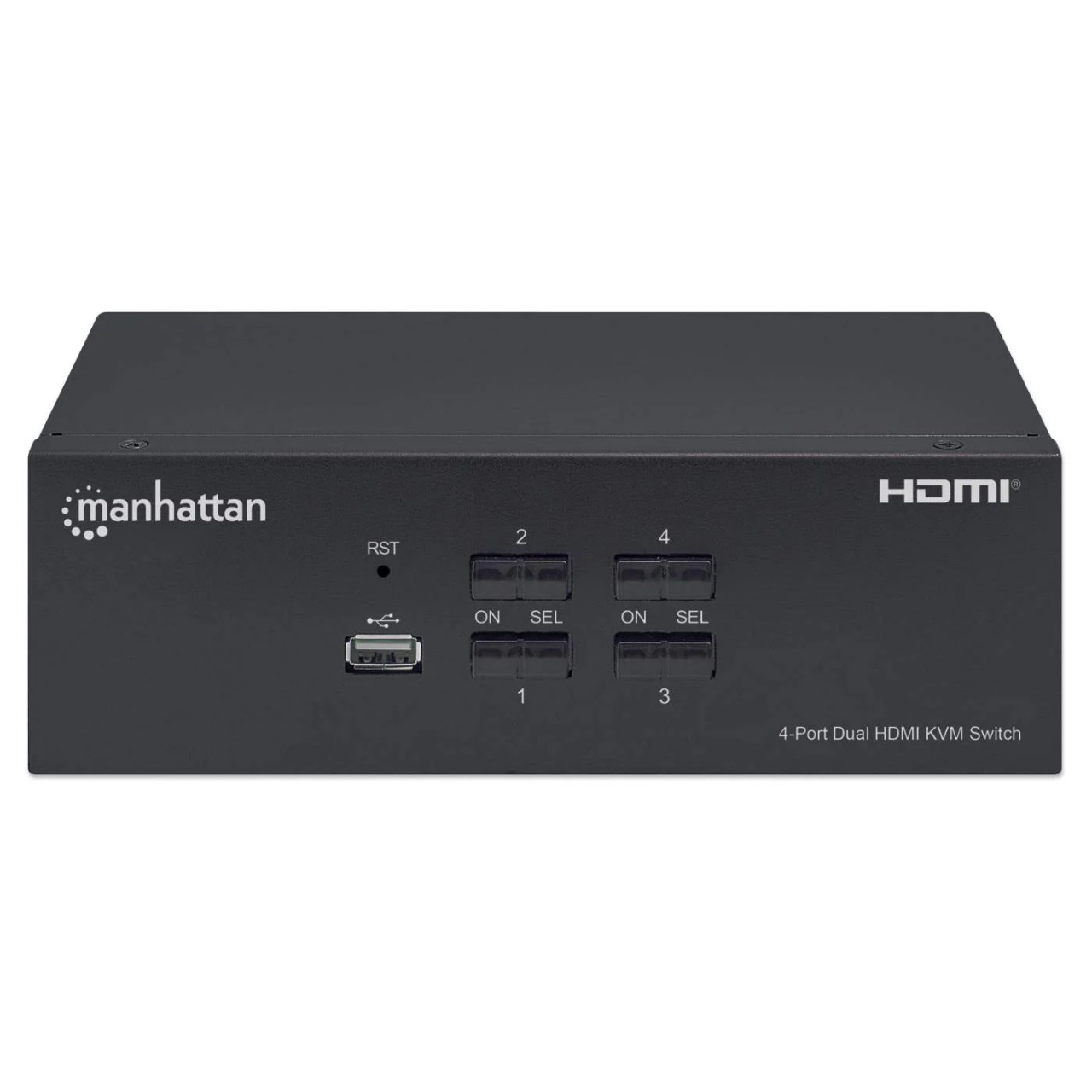

- Switching via front-panel push buttons or keyboard hotkeys
- Resolutions up to Ultra-High-Definition (UHD) 4K@30Hz (3840 × 2160)
- Additional USB 2.0 Type-A hub port to connect storage drives, printers, scanners and more
- Digital audio support through HDMI with Dolby TrueHD and DTS-HD Master Audio
- Ideal for sharing multiple multimedia PCs or notebooks with a single HDMI TV
- Supports Windows®, Mac OS®, Linux®, Unix® and Novell®
- True Transparent USB (TTU) emulation technology supports most keyboard and mouse designs

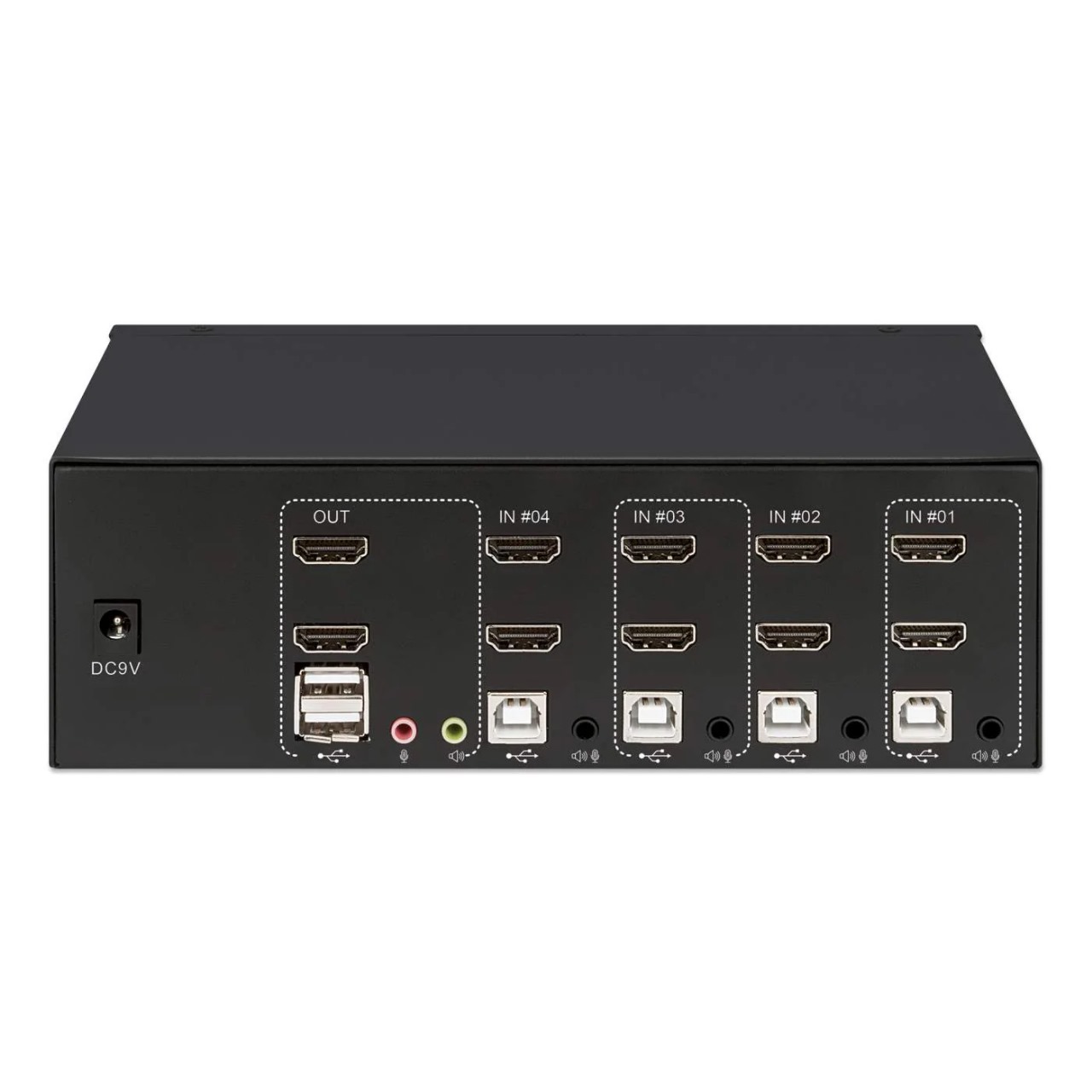

| 2 x HDMI female 19-pin |
| 2 x USB-A female 4-pin |
| 1 x 3.5 stereo audio microphone female |
| 1 x 3.5 stereo audio speaker female |
| 8 x HDMI female 19-pin |
| 4 x USB-B female 4-pin |
| 4 x 3.5 stereo audio microphone/speaker female combo port |
| Other |
| 1 x USB-A female 4-pin |
| 1 x 9.0 V DC / 0.3 A power jack (DC connector: 5.5 x 2.1 mm; polarity: outer = negative, inner = positive) |
| 4-Port Dual-Monitor HDMI KVM Switch |
