482xl Balanced/Unbalanced Stereo Audio Transcoder

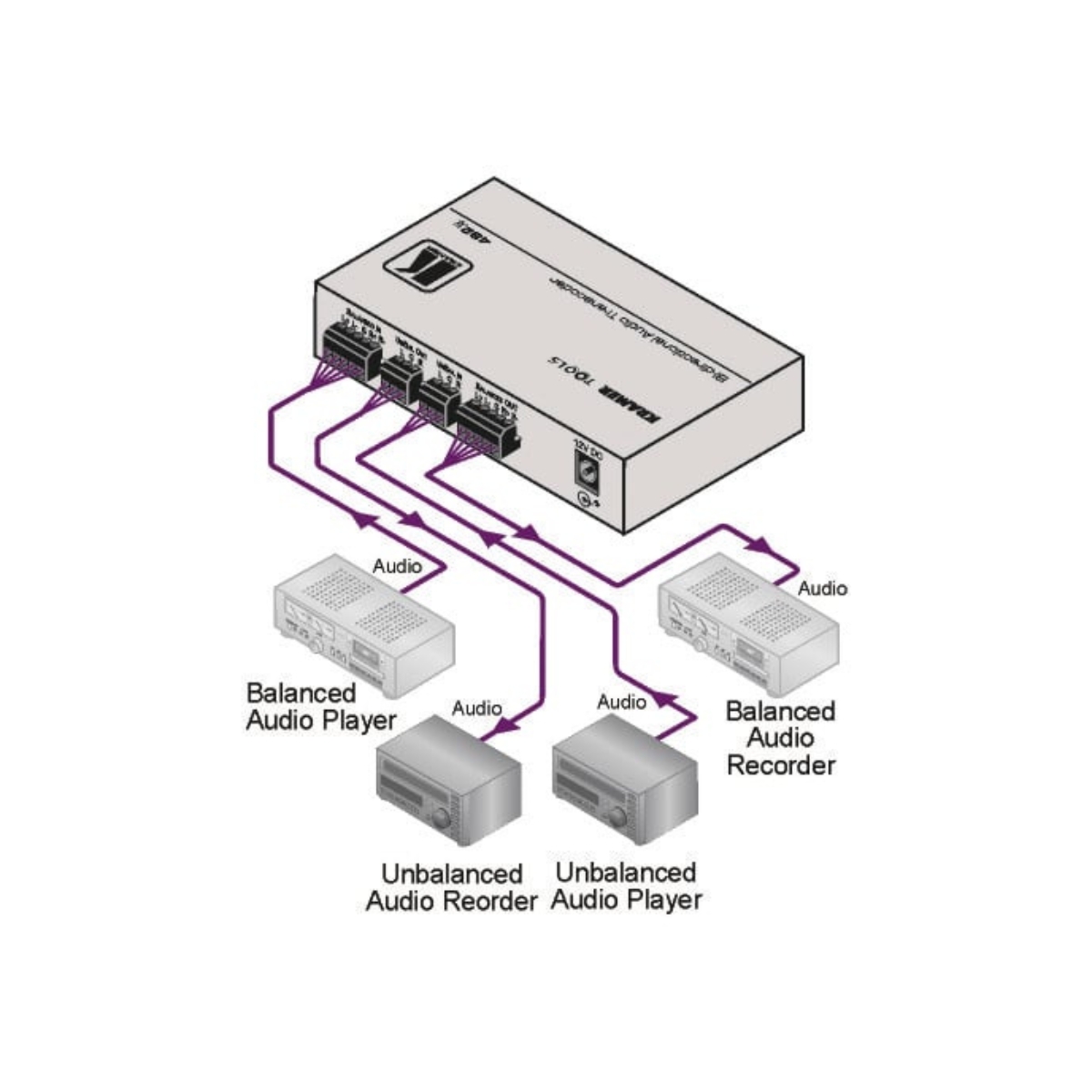

The 482xl is a high-performance audio transcoder that simultaneously converts balanced stereo audio signals to unbalanced stereo audio and vice versa, ensuring seamless audio integration between professional and consumer audio equipment.
- S/N Ratio — 95dB U to B
- L&R Level Controls U & B
- Terminal Blocks
| INPUTS | 1 unbalanced stereo audio on a 3−pin terminal block connector, 1 balanced stereo audio on a 5−pin terminal block |
| OUTPUTS | 1 balanced audio stereo on a 5−pin terminal block connector, 1 unbalanced audio stereo on a 3−pin terminal block connector |
| MAX. OUTPUT LEVEL | Balanced: 21dBu; unbalanced: 21dBu @max gain |
| BANDWIDTH (-3dB) | >100kHz |
| CONTROLS | −57dB to +6dB (balanced to unbalanced level); −16dB to +19dB (unbalanced to balanced level) |
| COUPLING | Balanced to unbalanced: in=AC, out=DC; Unbalanced to balanced: in=AC, out=DC |
| THD+NOISE | 0.049% |
| 2ND HARMONIC | 0.005% |
| S/N RATIO | 95dB/87dB balanced to unbalanced/unbalanced to balanced, unweighted |
| POWER CONSUMPTION | 12V DC, 280mA (fully loaded) |
| INCLUDED ACCESSORIES | Power supply, mounting bracket |
| Product Dimensions | 12.00cm x 7.15cm x 2.44cm (4.72" x 2.81" x 0.96" ) W, D, H |
