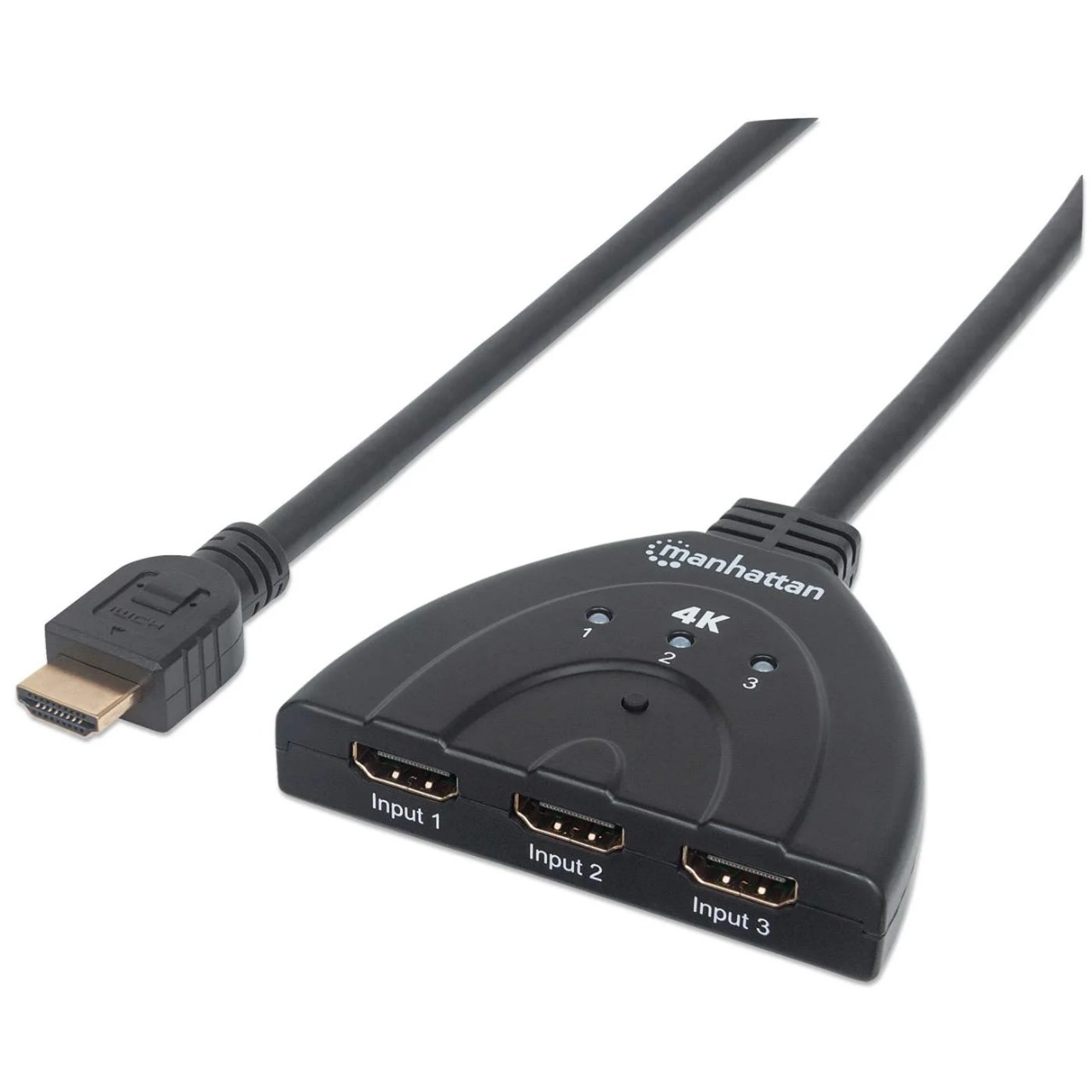

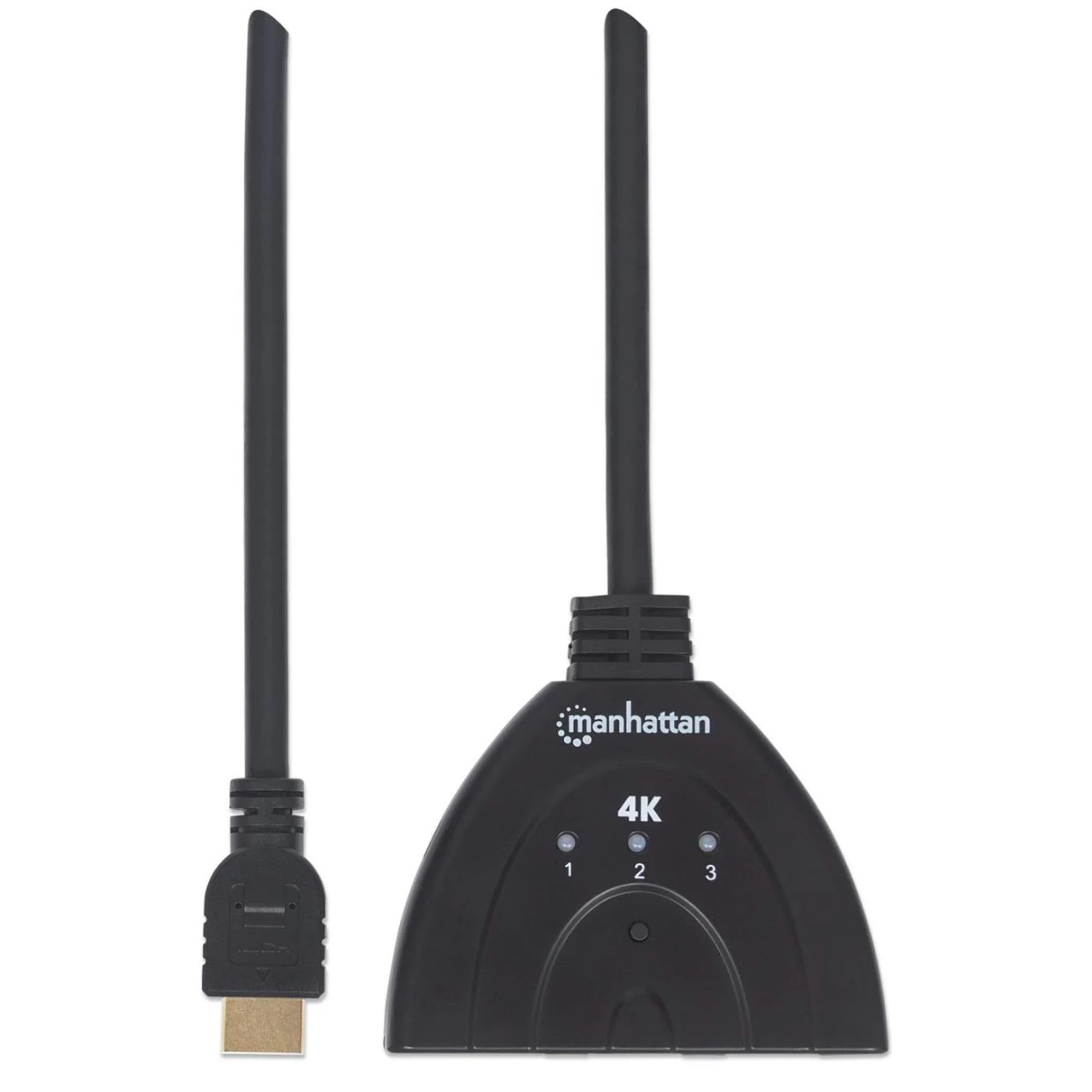

4K 3-Port HDMI Switch (207874)

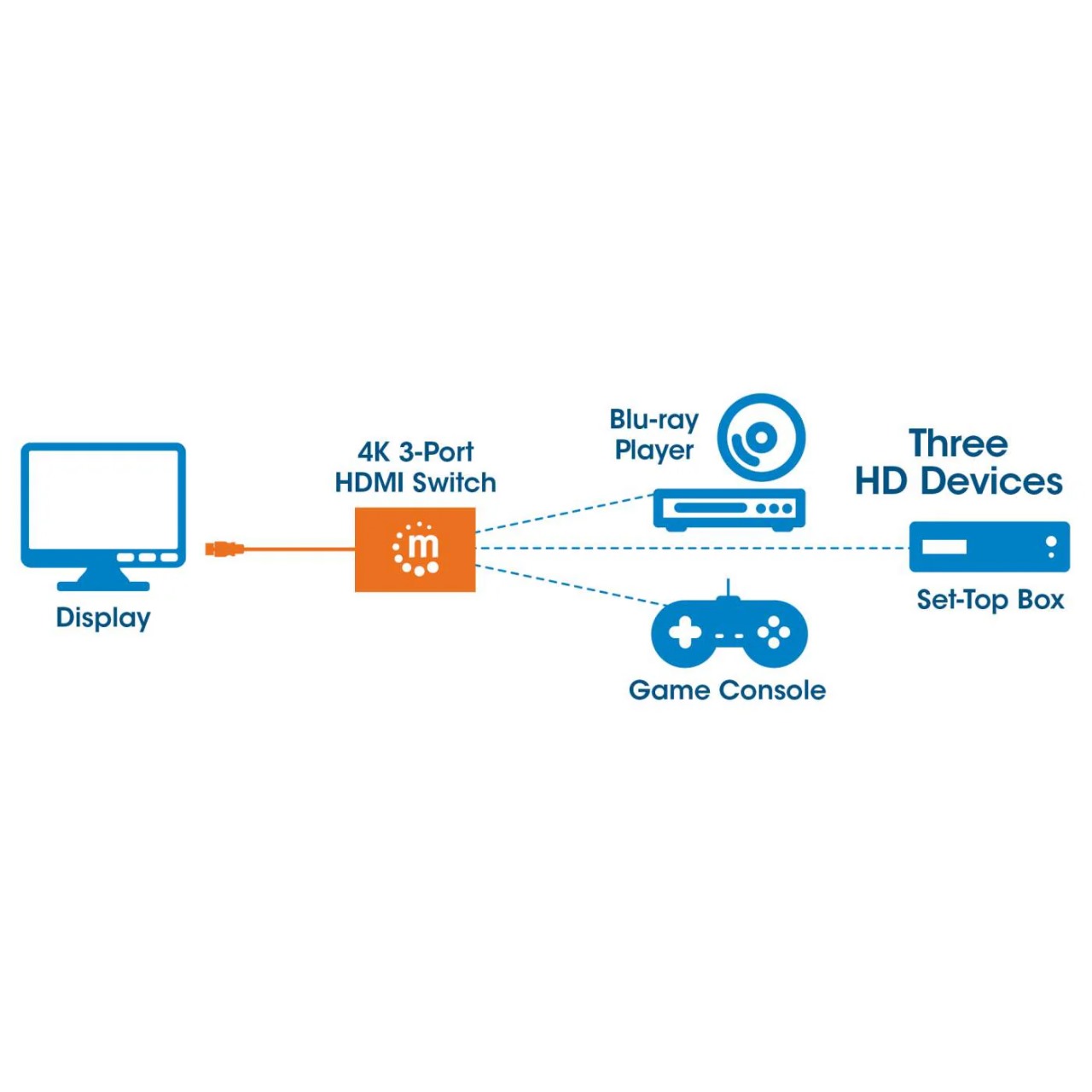

The Manhattan 4K 3-Port HDMI Switch allows users to connect up to three HDMI video sources—such as gaming consoles, Blu-ray players, satellite receivers, digital recorders and set-top boxes—to a single Ultra-High-Definition (UHD) display. It offers convenient switching between multiple devices while delivering high-quality 4K video.

Contact to Seller
  • Connects up to three Ultra-High-Definition (UHD) video sources to a single HDMI display
  • Supports automatic switching (when an UHD signal is detected) and manual switching (between sources with the push of a button)
  • 4K@60Hz resolution, full 3D video, Deep Color and High Dynamic Range (HDR)
  • Supports video amplifier bandwidth up to 600 MHz and 6.0 Gbps per channel (18 Gbps total) for 4Kx2K displays
  • Supports 36-bit Deep Color (12-bits per channel), 4:4:4 chroma subsampling and YCbCr 4:2:0 color formatting
  • Supports compressed DTS-HD Master Audio, 7.1 surround sound, Dolby TrueHD and uncompressed LPCM 8-channel audio
  • Works with PlayStation and Xbox game systems, Blu-ray players, set-top boxes, satellite receivers, and more
  • HDCP compliant
Download Product catalog
HDCP 2.2 / 1.4
CE
FCC
RoHS2
General
Splitter-to-display range: up to 10 m (33 ft.)

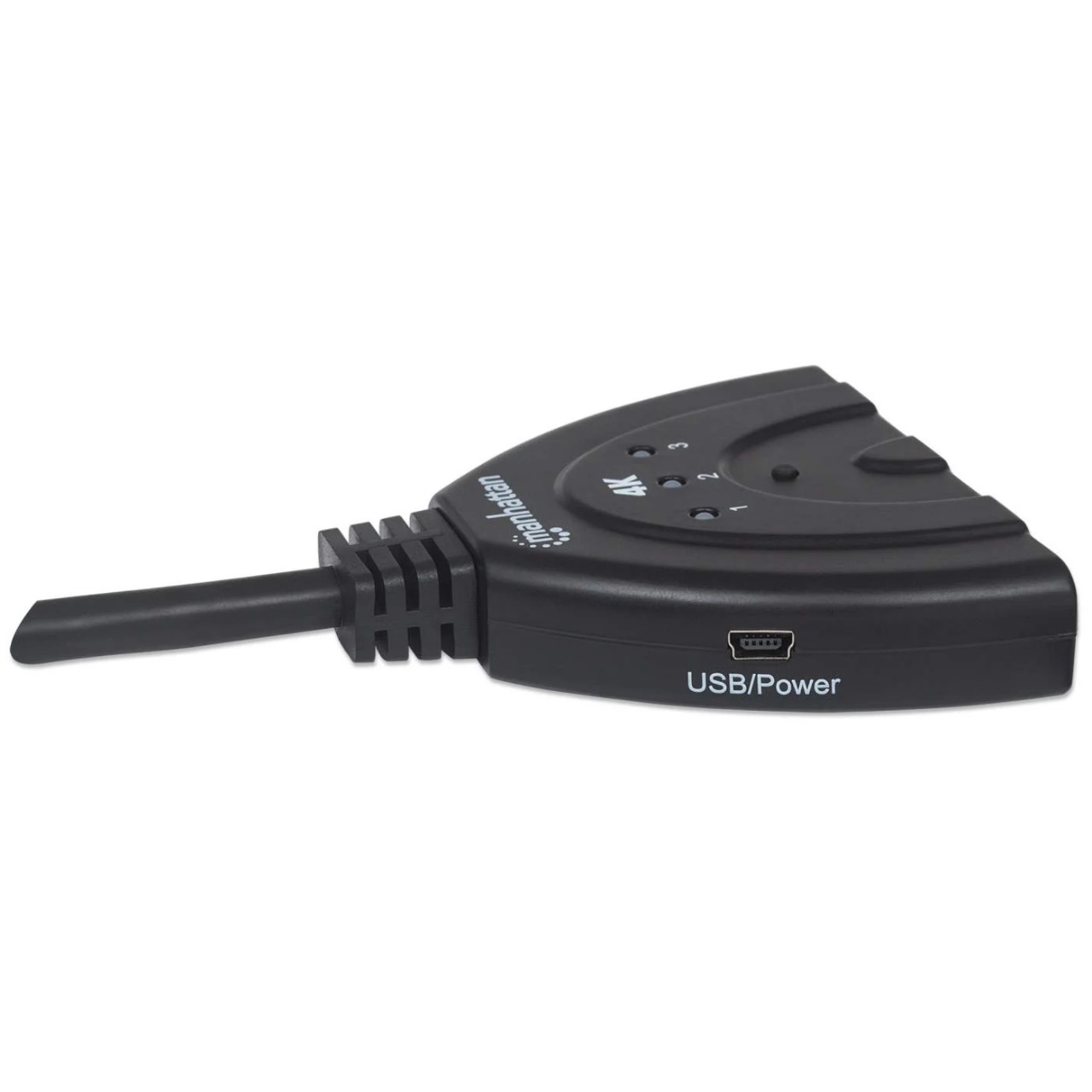

USB Power cable: 0.7 m (2.3 ft.)
Power consumption: 2 W
Distance from Source to Switch:
Up to 5m: 4K@60Hz, 4:4:4, HDR
up to 10m: 1080p
