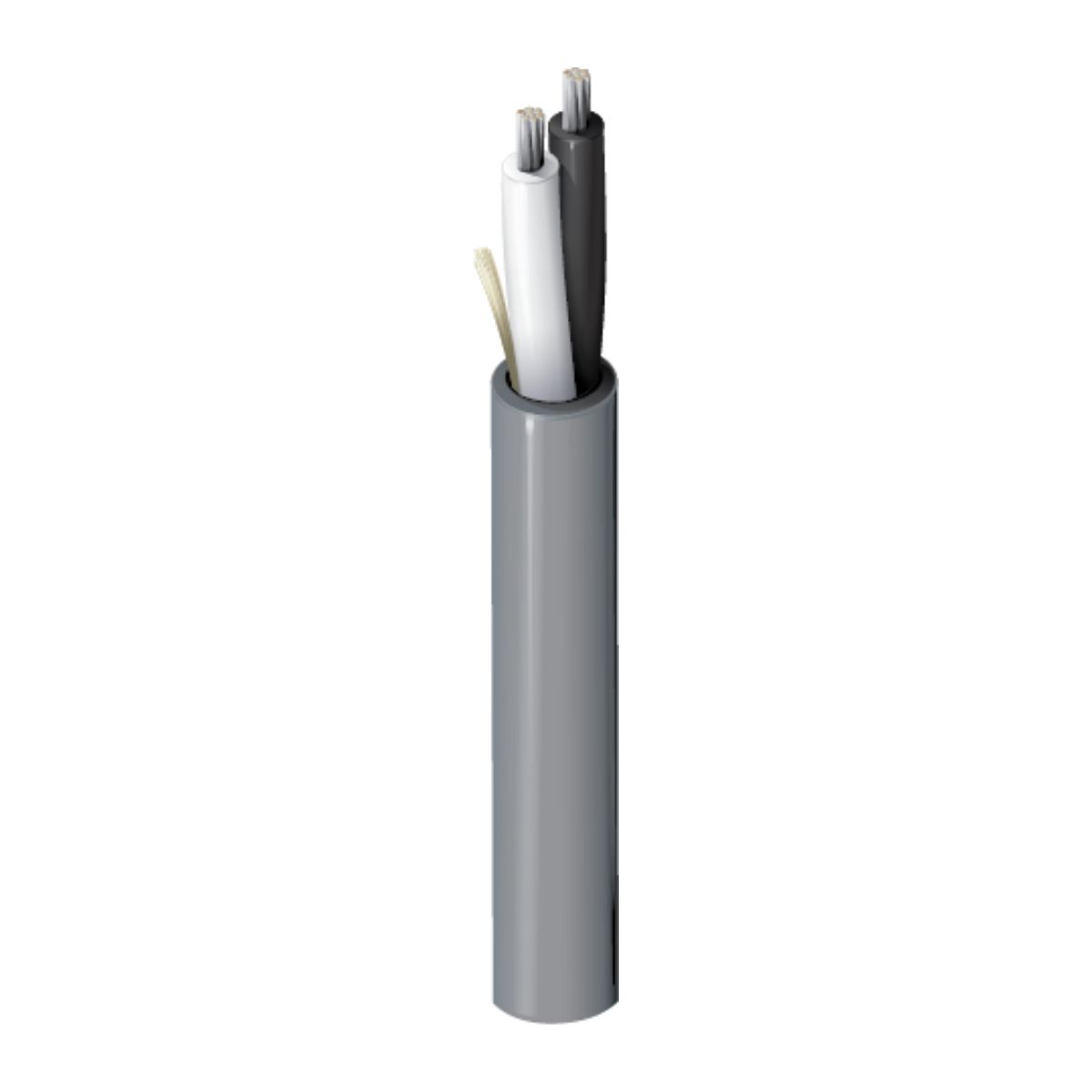

5200UH 2 CORE RISER CABLE ,SPEAKER,16 AWG
Security & Commercial Audio Cable, 2 Conductor 16 AWG stranded (19x29) tinned copper conductors with polyolefin insulation, Riser, PVC jacket with ripcord.
Conductor
| Element | No. of Elements | Size | Stranding | Material |
| Conductor(s) | 2 | 16 AWG | 19x29 | TC - Tinned Copper |
Insulation
| Element | Material | Nom. Thickness | Nom. Insulation Diameter | Color Code |
| Conductor(s) | PP - Polypropylene | 0.008 in (0.20 mm | 0.075 in (1.9 mm) | Black, Red |
Electricals
| Nom. Conductor DCR | Nom. Capacitance Cond-to-Cond | Nom. Inductance | Max. Current |
| 4.2 Ohm/1000ft | 23 pF/ft (75 pF/m) | 0.14 µH/ft (0.46 µH/m) | 6.25 Amps per Conductor at 25ºC |
