550X

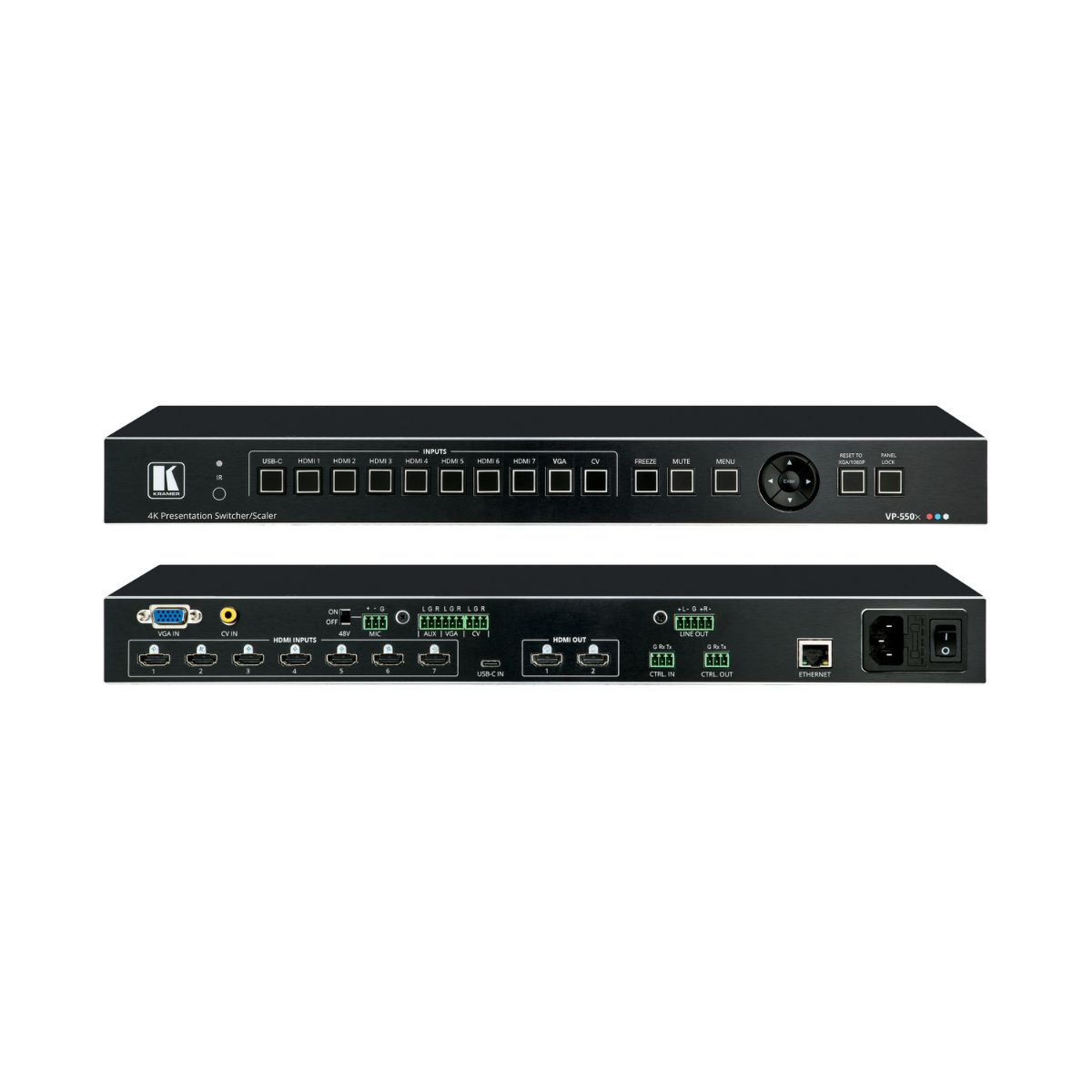

VP−550X is a versatile, professional presentation scaler/switcher for 4K@60 (4:4:4) HDMI, USB−C, VGA, and composite video signals. The unit scales the video and provides options to use the embedded digital audio or to select analog audio input signals. After processing and scaling, the embedded AV signal is sent to the 2 mirrored HDMI outputs simultaneously, and the audio is also sent to a balanced stereo audio output.

Contact to Seller
  • 4K USB–C Input; 7x HDMI inputs; 2 Legacy analog video inputs
  • Mic Input
  • 48V Phantom Power for Microphone
  • Control — RS–232, Ethernet & IR
  • Power provider to USB–C input



Download Product catalog

Inputs
  • 7 HDMI: On female HDMI connectors
  • 1 USB (providing power): On a USB type–C connector
  • 1 Computer Graphics: On a 15–pin HD connector
  • 1 Composite Video: On an RCA connector
  • 3 Unbalanced Stereo Analog Audio (AUX, VGA, and CV): On 3–pin terminal blocks
  • Microphone: On 3–pin terminal block

Outputs
  • 2 HDMI: On female HDMI connectors
  • 1 Balanced Analog Stereo Audio: On a 5–pin terminal block

Ports
  • 1 RS–232 (Data): On a 3–pin terminal block
  • 1 RS–232 (Control): On a 3–pin terminal block
  • 1 Ethernet: 100Mbps, on an RJ–45 connector

User Interface
  • Controls: IR remote, Input selection, freeze, mute, XGA/1080p reset, and panel lock buttons, OSD menu
  • Indicators: IR, selected input LEDs

Power
  • Source: 100–240V AC 50/60Hz
  • Consumption: 1A

Enclosure
  • Size: 19”
  • Type: Aluminum
  • Cooling: Convection ventilation
