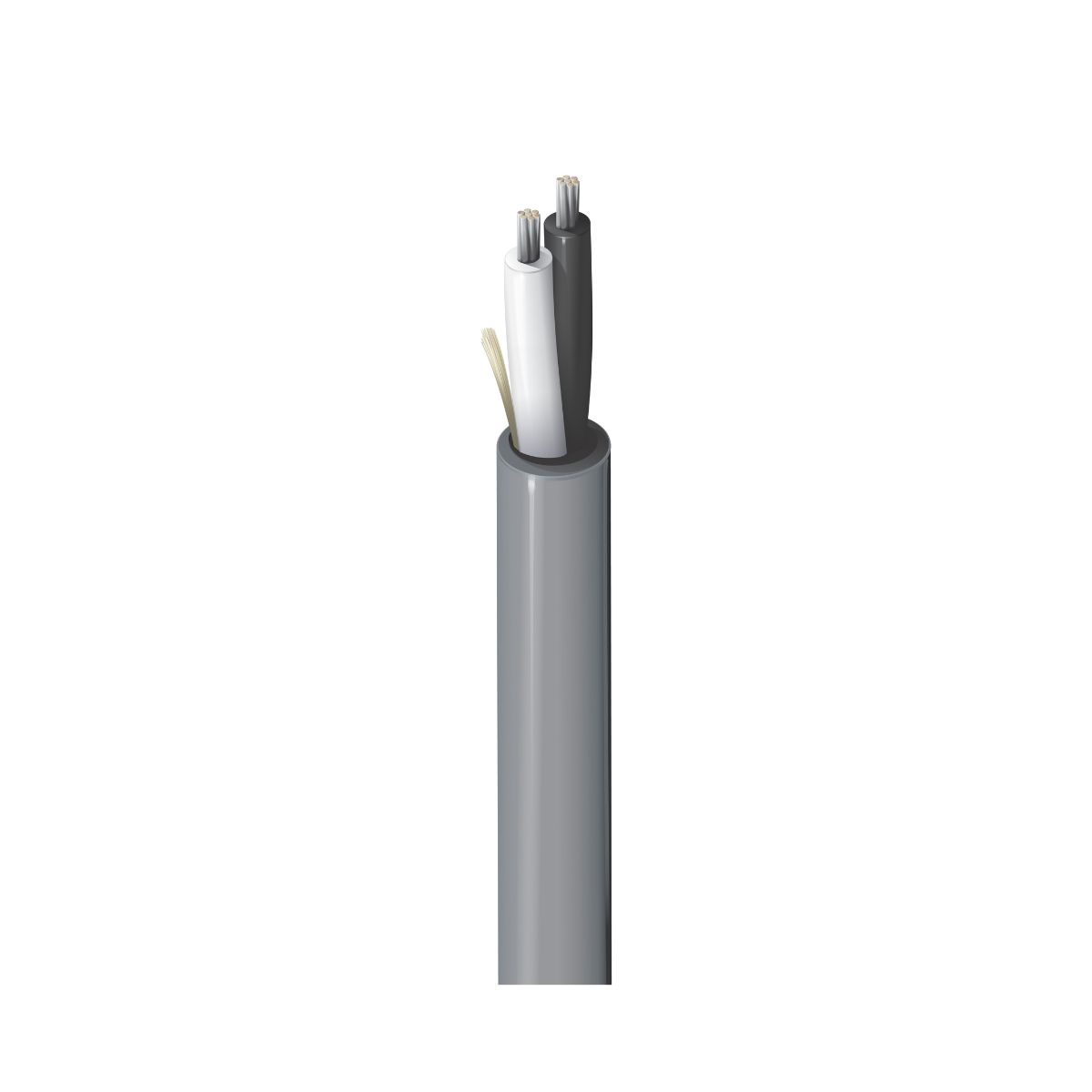

5T00UP 10 AWG BARE COPPER SPEAKER CABLE
Audio Cable, Rated-CL2, 2-10 AWG, highly flexible stranded bare copper conductors with PVC insulation, PVC jacket with ripcord
Conductor
| Element | No. of Elements | Size | Stranding | Material |
| Conductor(s) | 2 | 10 AWG | 65x28 | BC - Bare Copper |
Insulation
| Element | Material | Nom. Thickness | Nom. Insulation Diameter | Color Code |
| Conductor(s) | PVC - Polyvinyl Chloride | 0.020 in (0.51 mm) | 0.152 in (3.86 mm) | Black, White |
Electricals
| Element | Nom. Conductor DCR | Nom. Capacitance Cond-to-Cond | Nom. Inductance | Max. Current |
| Conductor(s) | 1.03 Ohm/1000ft (3.38 Ohm/km) | 26 pF/ft (85 pF/m) | 0.15 µH/ft (0.49 µH/m) | 27.8 Amps per conductor @ 25°C |
Temperature
| UL Temperature | Operating |
| 75°C | -20°C to +75°C |
