617R/T

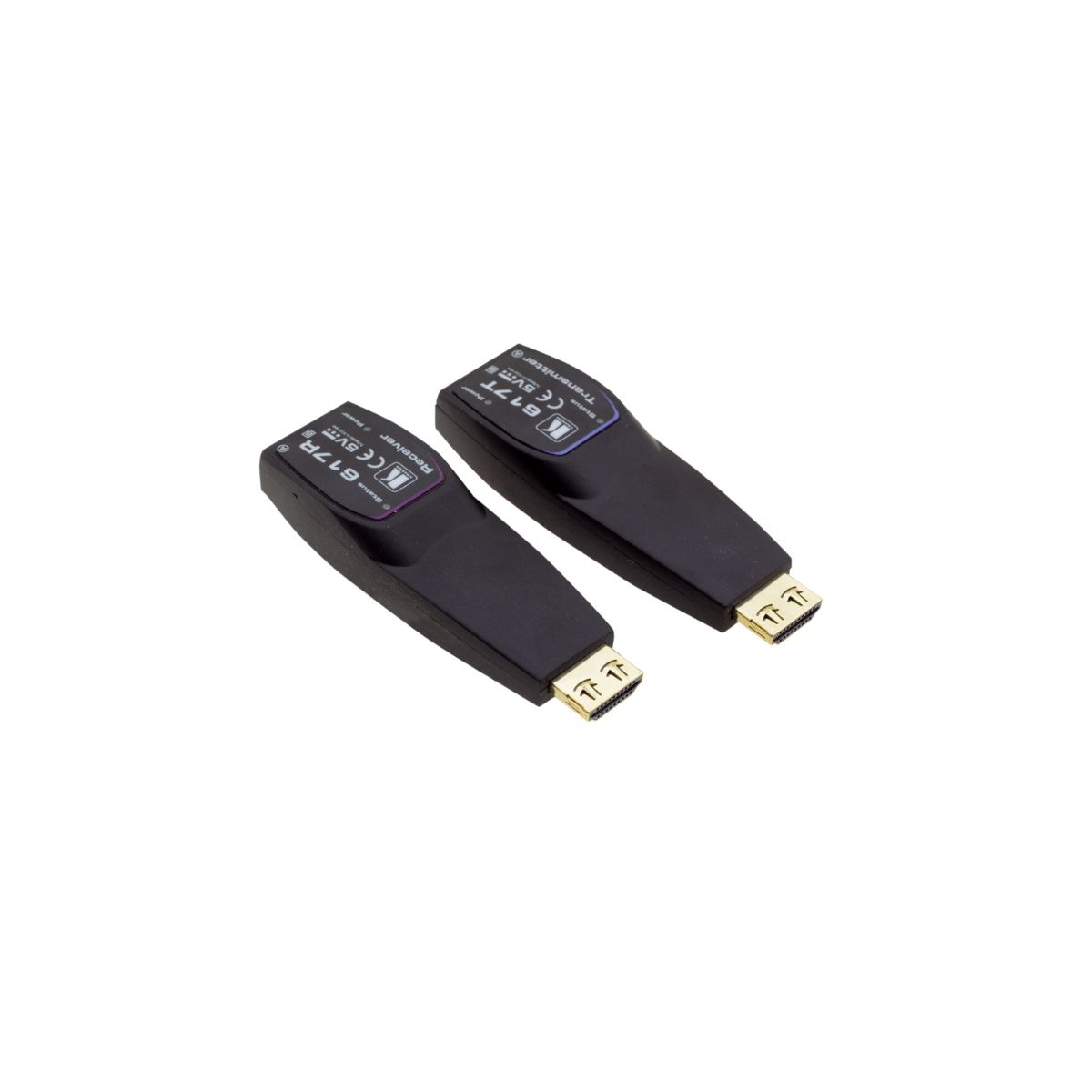

617R/T is a compact fiber optic transmitter and receiver capable of extending HDMI signals over fiber optic cable. This set of extenders supports 4K@60 (4:4:4) resolution up to 656 feet (200 meters) on a dual LC multi−mode fiber cable.

Contact to Seller
  •  Max. Resolution — 4K@60(4:4:4).
  •  Max. Data Rate — 18Gbps.
  •  HDMI Support — HDCP 2.2, EDID, and CEC. 18Gbps, 3D content transmission, and HDR10 as specified in HDMI 2.0.
  •  High Quality Connectors — 24K gold–plated and corrosion–resistant for the best possible connectivity.
  •  K–Lock Pull–Resistant Connectors — Provides 15lbs of restraining force for a non–slip connection.

Video
  • Max. Resolution: 4K @60Hz 4:4:4 (4096x2160)
  • Data Rate: Maximum 6 Gbps per channel
  • Compliance: Supports HDMI 2.0, HDCP 2.2, EDID, and CEC

Ports
  • 617T (source end): Male HDMI connector
  • 617R (display end): Male HDMI connector
  • 617T (source end): Micro USB (for power supply)
  • 617R (display end): Micro USB (for power supply)

Power
  • 5V: Via USB source, Via external source, or HDMI PIN #18 (617T only)
  • Consumption: <2.5W

Recommended Cable
  • Structure: Dual Multi–mode OM3 (50/125um) glass fiber
  • Optical Connectors: Duplex LC connectors
  • Max. Fiber Cable Attenuation (λ=850nm): 2.5dB/KM
  • Max. Skew: 0.4ns

Environmental Conditions
  • Operating Temperature: 0° to +50°C (32° to 122°F)
  • Storage Temperature: –30° to +70°C (–22° to 158°F)
  • Operating Humidity: 0 to 85%

STANDARDS COMPLIANCE
  • CE: EN 55032:2012/AC: 2013 (Class A), EN 61000–3–2:2014, EN 61000–3–3:2013, EN 55024:2010
