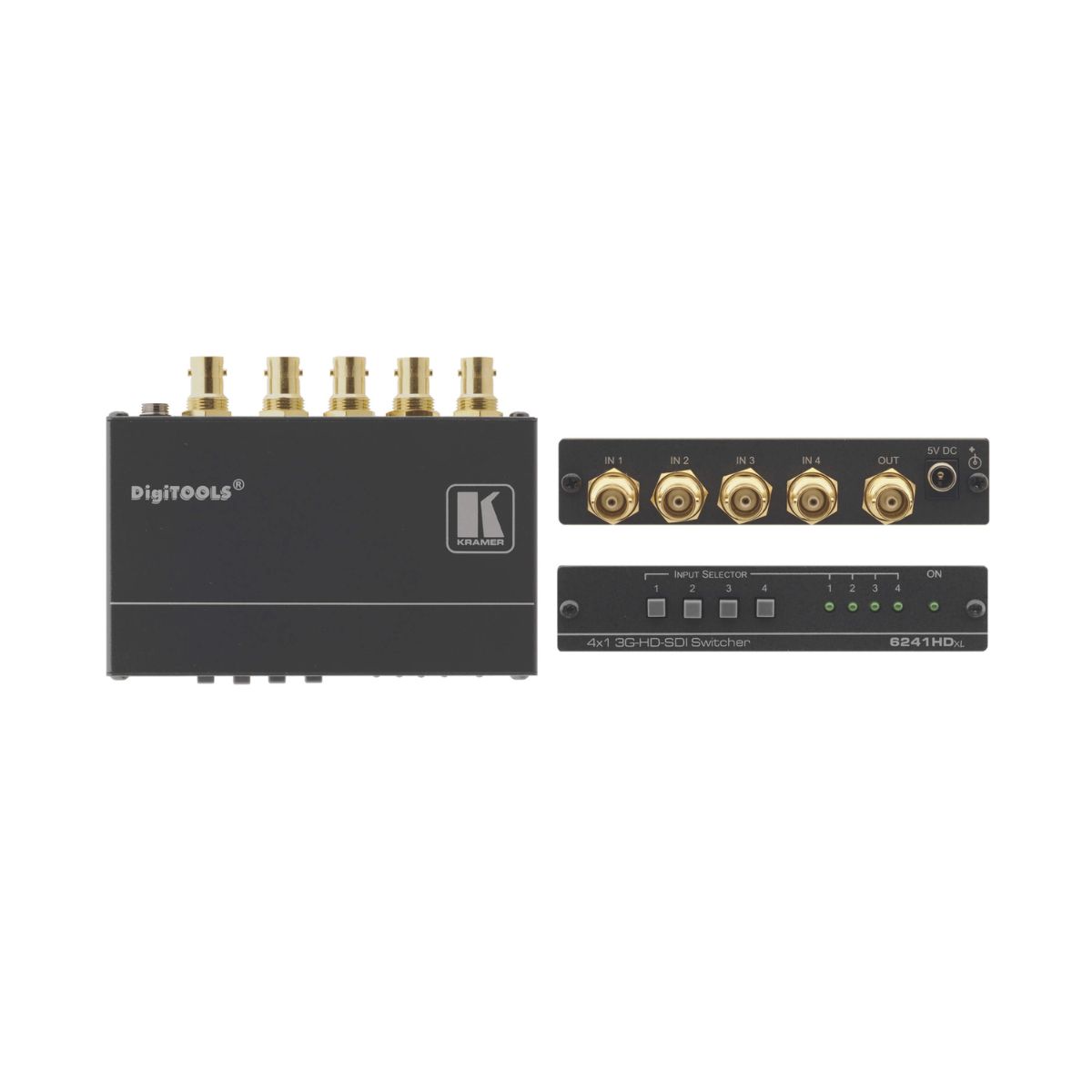

6241HDxl

The 6241HDxl is a high-performance switcher for 3G HD-SDI video signals. It takes any one of four 3G HD-SDI inputs, provides reclocking and equalization, and outputs the signal to one 3G HD-SDI output.

Contact to Seller
  • Max. Data Rate — 3Gbps.
  •  HDTV Compatible.
  •  Multi–Standard Operation — SDI (SMPTE 259M and SMPTE 344M), HD–SDI (SMPTE 292M), and 3G HD–SDI (SMPTE 424M).
  •  Kramer Equalization & re–Klocking™ Technology — Rebuilds the digital signal to travel longer distances.
Download Product catalog

INPUTS
  • 4 SMPTE 259M/344M serial digital video inputs (75Ω) on BNC connectors

OUTPUTS
  • 1 SMPTE 259M/344M serial digital video output (75Ω) on BNC connectors

MAX. DATA RATE
  • 2.97Gbps

MAX. OUTPUT LEVEL
  • 800mVpp/75Ω

EQUALIZATION
  • Automatic equalization for losses on 75Ω coaxial cable

POWER CONSUMPTION
  • 5V DC, 410mA
