675R/T

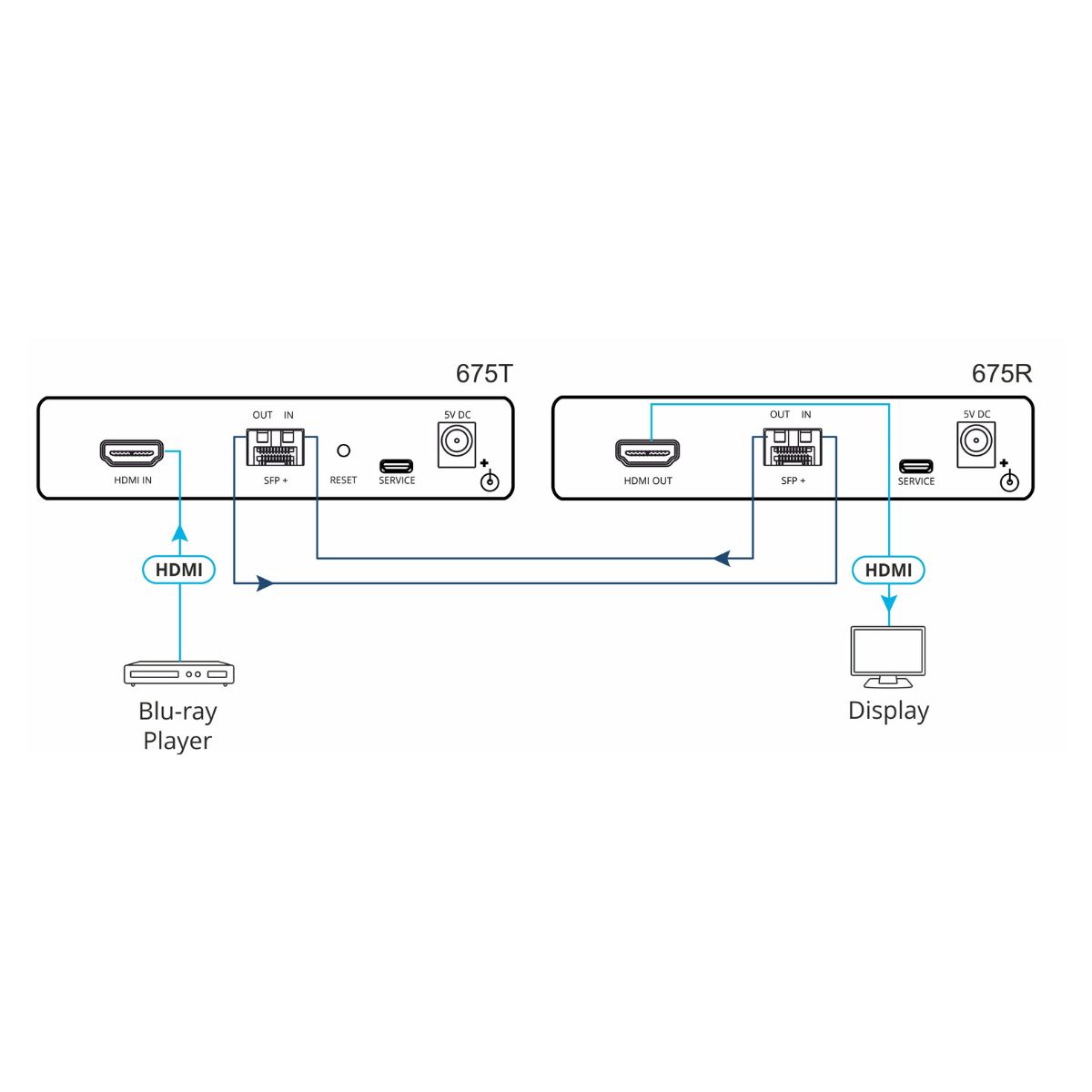

675R/T is a high−performance HDMI fiber extender kit for ultra−reach extension of 4K@60Hz (4:4:4) HDMI signals. 675T converts the HDMI input signal to an optical signal that is transmitted over a fiber optic cable to 675R, which converts it back to an HDMI signal. 675R/T includes 2 multi−mode SFP+ transceivers, but can be used with any Kramer certified SFP+ transceiver, such as a single−mode SFP+ transceiver.

Contact to Seller
  • Compact, plug & play HDMI optical receiver/transmitter kit
  • Supports multi–mode or single–mode fiber
  • Video resolution — Up to 4K@60 (4:4:4)
  • Up to 33km ultra–reach extension

Inputs
  • Fiber Optic: On LC connector(s)
  • HDMI: On a female HDMI connector

Outputs
  • HDMI: On a female HDMI connector
  • Fiber Optic: On LC connector(s)

Ports
  • USB: On a female micro USB connector

Video
  • Max Bandwidth: 18Gbps
  • Max Resolution: 4096x2160@60Hz 4K@60 (4:4:4)
  • Latency: ≤10µsec — virtually none
  • Compliance: HDMI 2.0 and HDCP 2.2

Extension Line
  • Optical Fiber: Multi–mode (MM) or single–mode (SM)
  • Optical Module: Kramer 10Gbps SFP+ IEEE 802.3ae compliant modules (MM is included)

STANDARDS COMPLIANCE
  • Compliance: G.651.1 OFNR fiber
  • Laser Safety Compliance: Class 1
  • SFP Regulatory Certifications: FDA CDRH 21 CFR 1040 and Laser Notice No. 50, UL and CUL EN60950–2:2007, RoHS6, EMC EN 55022 and EN 55024, IEC 62368–1 and IEC 60825–1 and — 2
