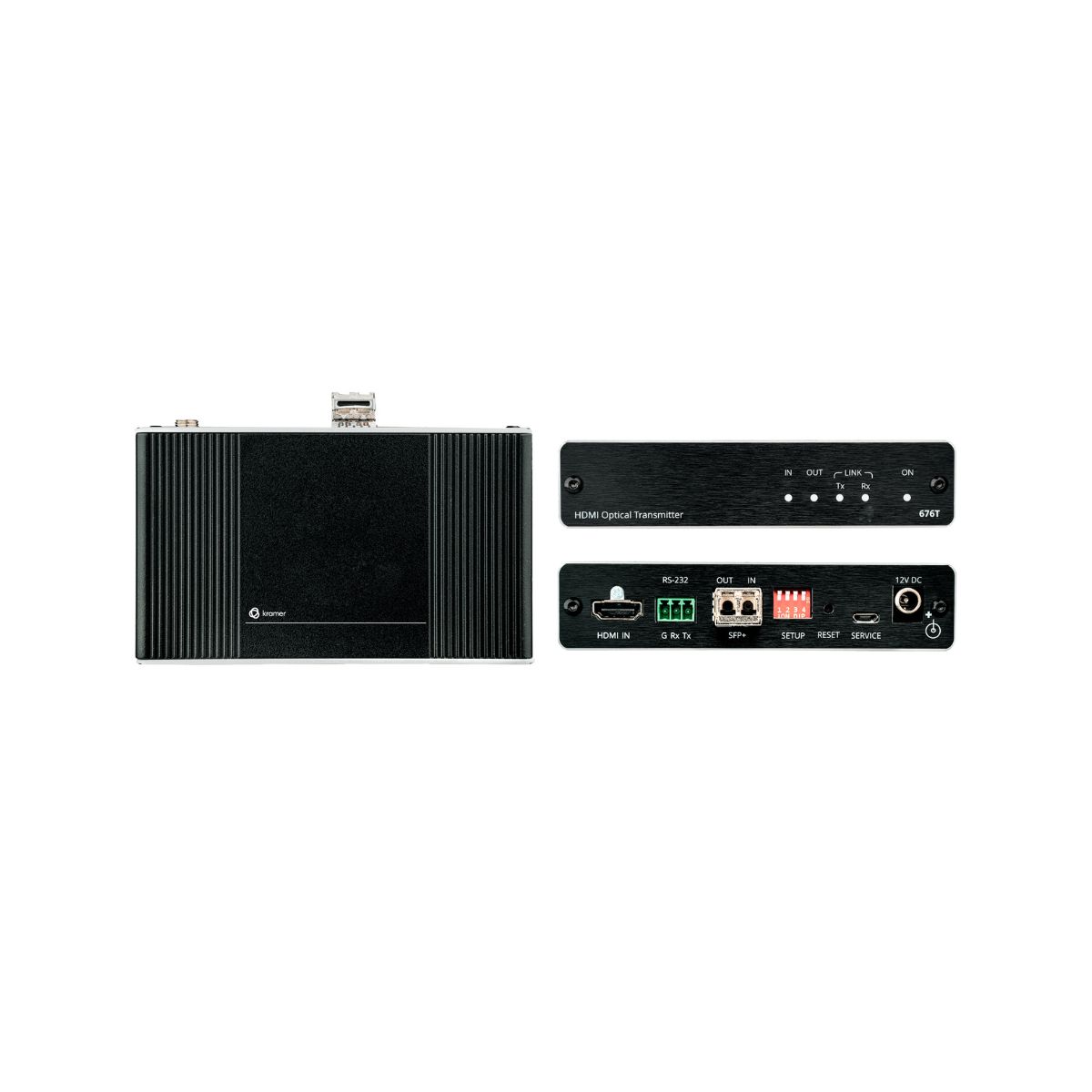

676T

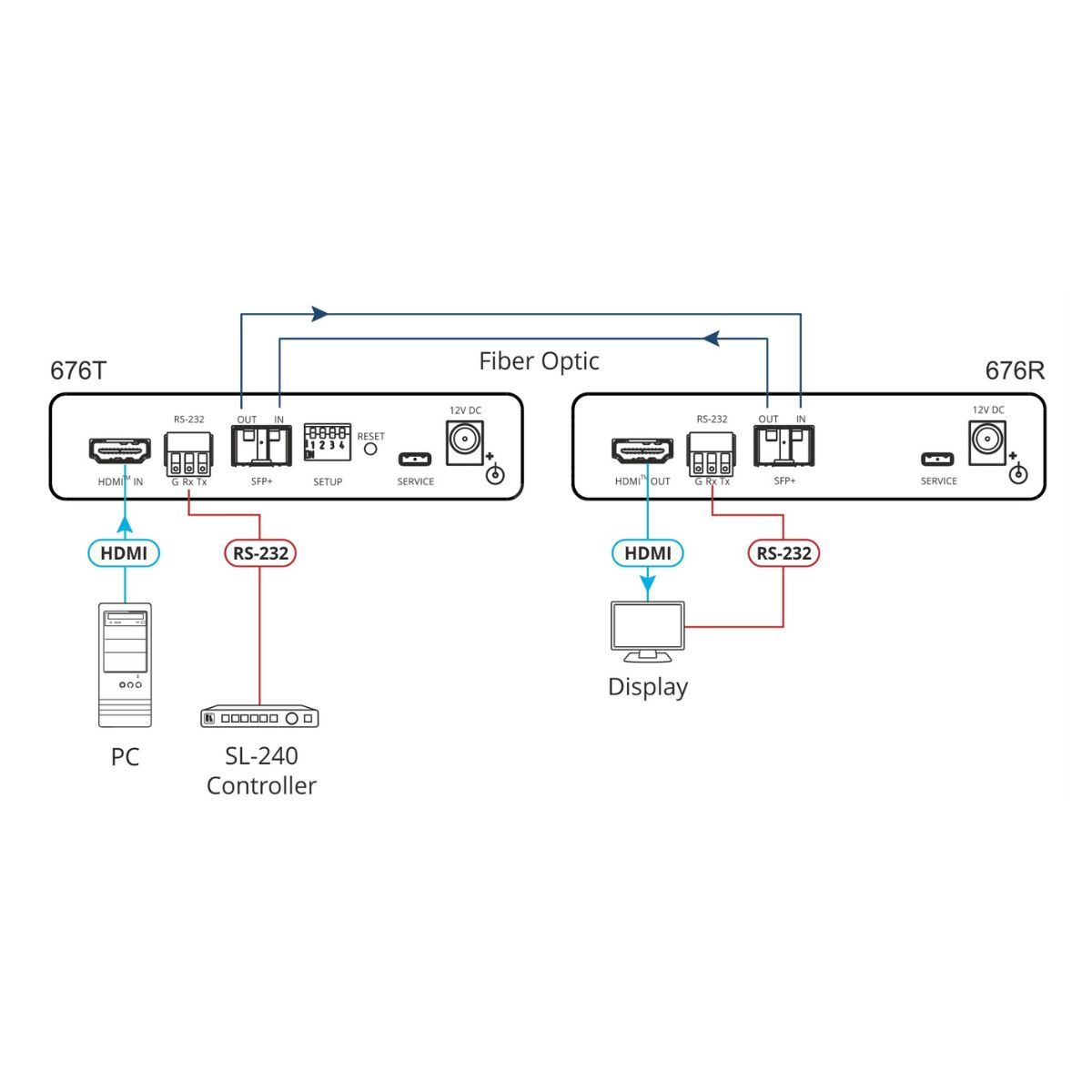

676T is a high−performance HDMI fiber transmitter for ultra−reach extension of 4K@60Hz (4:4:4) HDMI signals. 676T converts the HDMI and RS−232 input signal to an optical signal that is transmitted over a fiber optic cable to a compatible receiver that converts it back to HDMI and RS−232 signals. 676T includes a multi−mode SFP+ transceiver, but can be used with any Kramer-certified SFP+ transceiver, such as a single−mode SFP+ transceiver.

Contact to Seller
  • Compact, plug & play HDMI optical transmitter
  • Multi–mode or single–mode fiber
  • Video resolution — Up to 4K@60 (4:4:4)
  • Control extension
  • Up to 33km ultra–reach extension

Inputs
  • HDMI: On a female HDMI connector

Outputs
  • Fiber Optic: On LC connector(s)

Ports
  • RS-232: On a 3–pin terminal block connector
  • USB: On a female micro USB connector for firmware upgrade

Video
  • Max Bandwidth: 18Gbps
  • Max Resolution: 4096x2160@60Hz 4K@60 (4:4:4)
  • Compliance: HDMI 2.0 and HDCP 2.2

Extension Line
  • Optical Fiber: Multi–mode (MM) or single–mode (SM)
  • Optical Module: Kramer 10Gbps SFP+ IEEE 802.3ae compliant modules (MM is included)

Multi-mode Line
  • Compliance: G.651.1 OFNR fiber
  • Max Reach over OM3 MM Fiber: 3km (1.8 miles)
