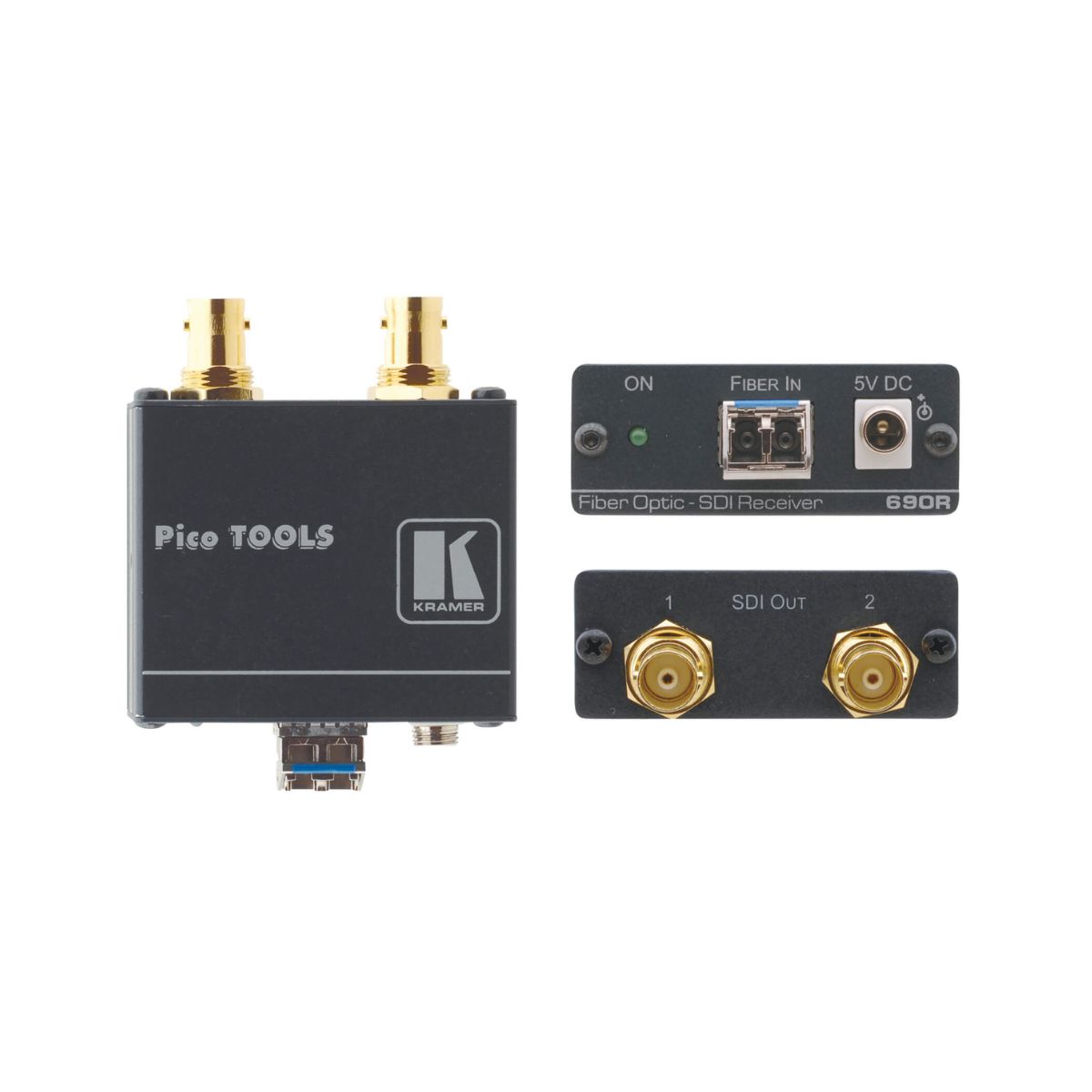

690R

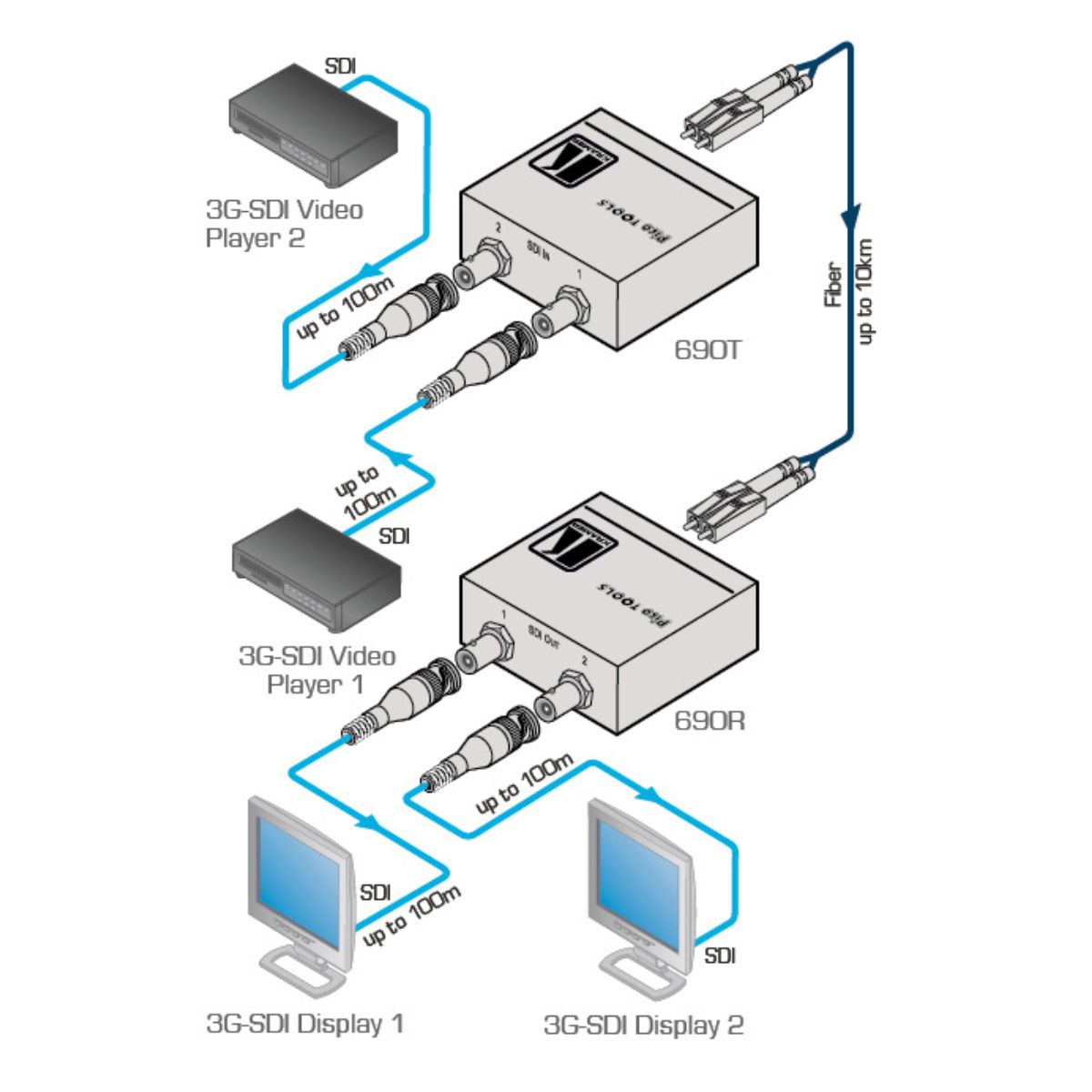

The 690R is a high−performance fiber optic receiver for SDI video signals up to 3G HD−SDI. The 690T converts two 3G HD−SDI signals to single−mode fiber optic, and the 690R receiver converts them back to the two original SDI formats. Compatible with the fiber optic matrix VS−88FO.

Contact to Seller
  • Max. Data Rate — 3Gbps.
  •  Inputs — 2 single–mode fiber optic on LC connectors.
  •  Outputs — 2 SDI on BNC connectors.
  •  HDTV Compatible.
  •  Multi–Standard Operation — SDI (SMPTE 259M and SMPTE 344M), HD–SDI (SMPTE 292M), 3G HD–SDI (SMPTE 424M).
Download Product catalog

INPUTS
  • Dual single–mode fiber (9/125) over LC connectors

OUTPUTS
  • 2 SD/HD/3G HD–SDI on BNC connectors

BANDWIDTH
  • Supports up to 3Gbps bandwidth for each input

FIBER OPTIC EXTENSION
  • Up to 10km (>6.2 miles) for 3G–SDI

INPUT CABLE EQUALIZATION
  • 200m for SDI, 100m for 3G–SDI

POWER CONSUMPTION
  • 5V DC, 350mA
