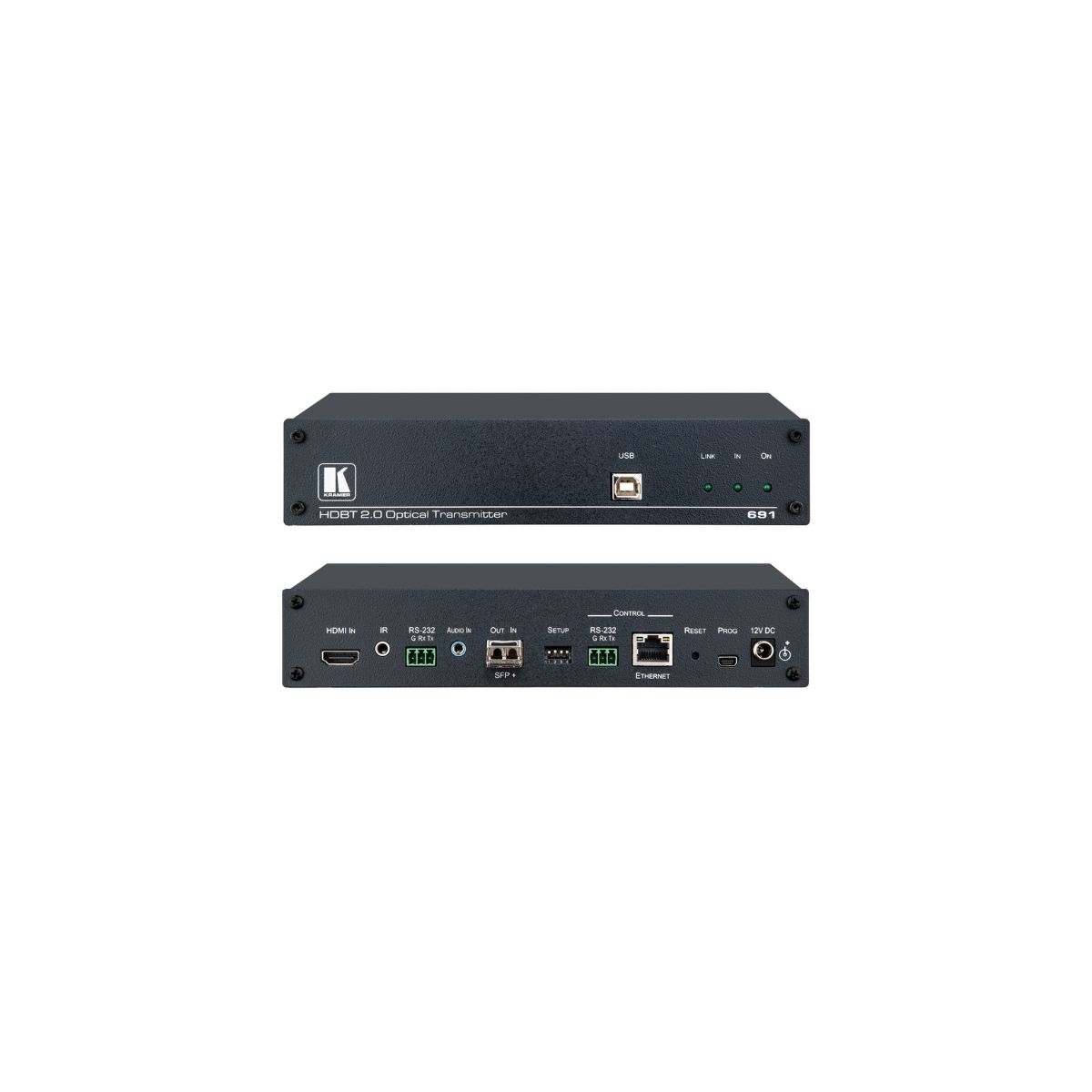

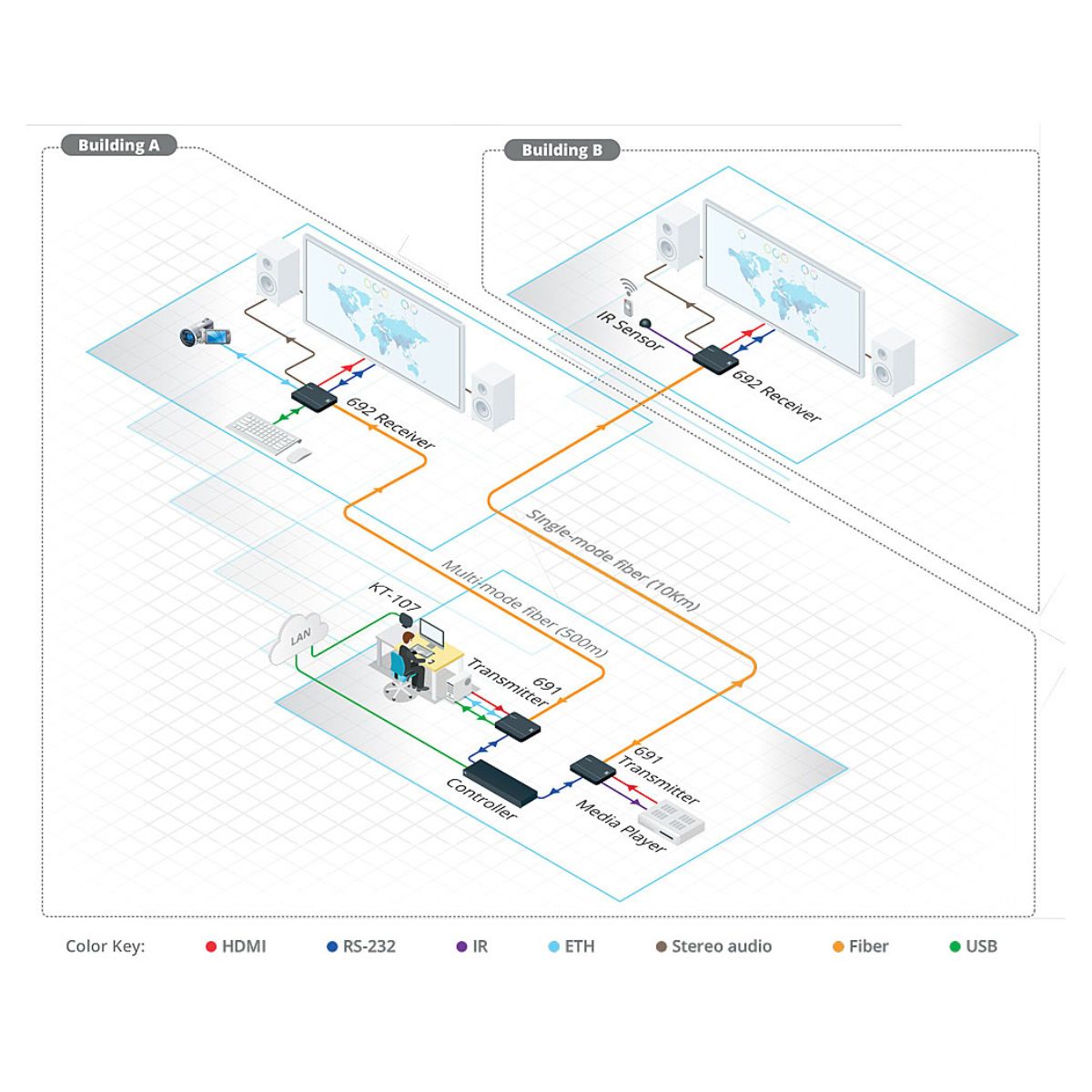

691 is a high−performance HDBaseT 2.0 fiber transmitter for ultra−reach extension of 4K60Hz (4:2:0) HDMI, USB, Ethernet, RS−232, IR, and stereo audio signals over either multi−mode or single−mode fiber optic. 691 converts all input signals to an HDBaseT 2.0 signal that is transmitted over a fiber optic cable to a compatible receiver that converts it back to the HDMI, USB, Ethernet, RS−232, IR, and stereo audio signals. It extends video signals to up to 33km (20.5 miles) over single−mode fiber at up to 4K@60Hz (4:2:0) resolution. 691 includes a multimode OSP+ transceiver, but can be used with a single-mode OSP+ transceiver and fiber as well.

Contact to Seller
  • HDBaseT 2.0 multi / single-mode optical transmitter
  • Ultra–reach using Kramer pluggable OSP fiber SFP+ units
  • Video resolution — Up to 4K@60Hz (4:2:0) 24bpp
  • USB, Ethernet & control signal extension
  • Stereo analog audio embedding (adding)

Inputs
  • 1 HDMI: On the HDMI connector,
  • 1 Stereo Analog Unbalanced Audio: On a 3.5mm mini jack

Outputs
  • 1 fiber optic: On a 10Gbps SFP+ LC connector complying with IEEE 802.3ae

Ports
  • 1 IR: On a 3.5mm mini jack for IR link extension
  • 1 USB: On a female USB–B connector for USB link extension
  • 1 RS–232: On a 3–pin terminal block for serial link extension
  • 1 RS–232: On a 3–pin terminal block for transmitter control
  • 1 100BaseT Ethernet: On an RJ–45 female connector for device control and LAN extension

Extension Line
  • Optical Fiber: Multi–mode (MM) or single–mode (SM)
  • Optical Module: Kramer 10Gbps SFP+ IEEE 802.3ae compliant modules (MM is included)
  • Compliance: HDBaseT 2.0

Multi-mode Line
  • Compliance: G.651.1 OFNR fiber
  • Nominal Peak Wavelength: 850 nm
  • Typical Optical Transmission Power: –2.5dBm
  • Typical Optical Maximum Loss Budget: 8.6dB
  • Max Reach over OM3 MM Fiber: 3km (1.8 miles)

Single-mode Line
  • Compliance: G.652D OFNR fiber
  • Nominal Peak Wavelength: 1310 nm
  • Typical Optical Transmission Power: –2.5dBm,
  • Typical Optical Maximum Loss Budget: 11.9dB
  • Max Reach over OS1 SM Fiber: 33km (20.5 miles)
