692

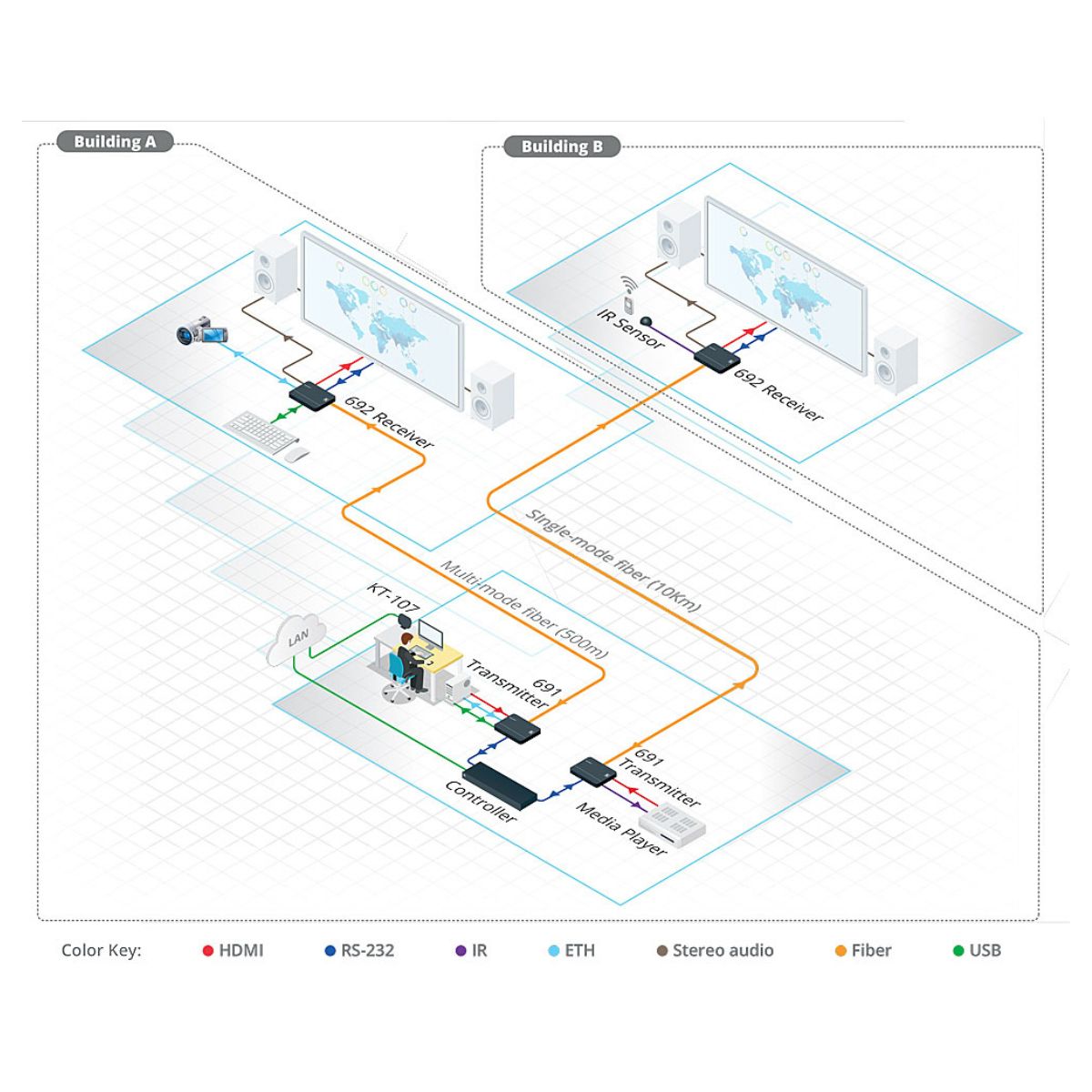

692 is a high−performance HDBaseT 2.0 fiber receiver for ultra−reach extension of 4K60Hz (4:2:0) HDMI, USB, Ethernet, RS−232, IR and stereo audio signals over either multi−mode or single−mode fiber optic. 692 converts the HDBaseT 2.0 fiber optics signal received from an extended line transmitter back into 4K60Hz (4:2:0) HDMI, USB 2.0, Ethernet, RS−232, IR

Contact to Seller
  • HDBaseT 2.0 multi / single-mode optical transmitter
  • Ultra–reach using Kramer pluggable OSP fiber SFP+ units
  • Video resolution — Up to 4K@60Hz (4:2:0) 24bpp
  • USB, Ethernet & control signal extension
  • Stereo analog audio de–embedding (drop–and–continue)

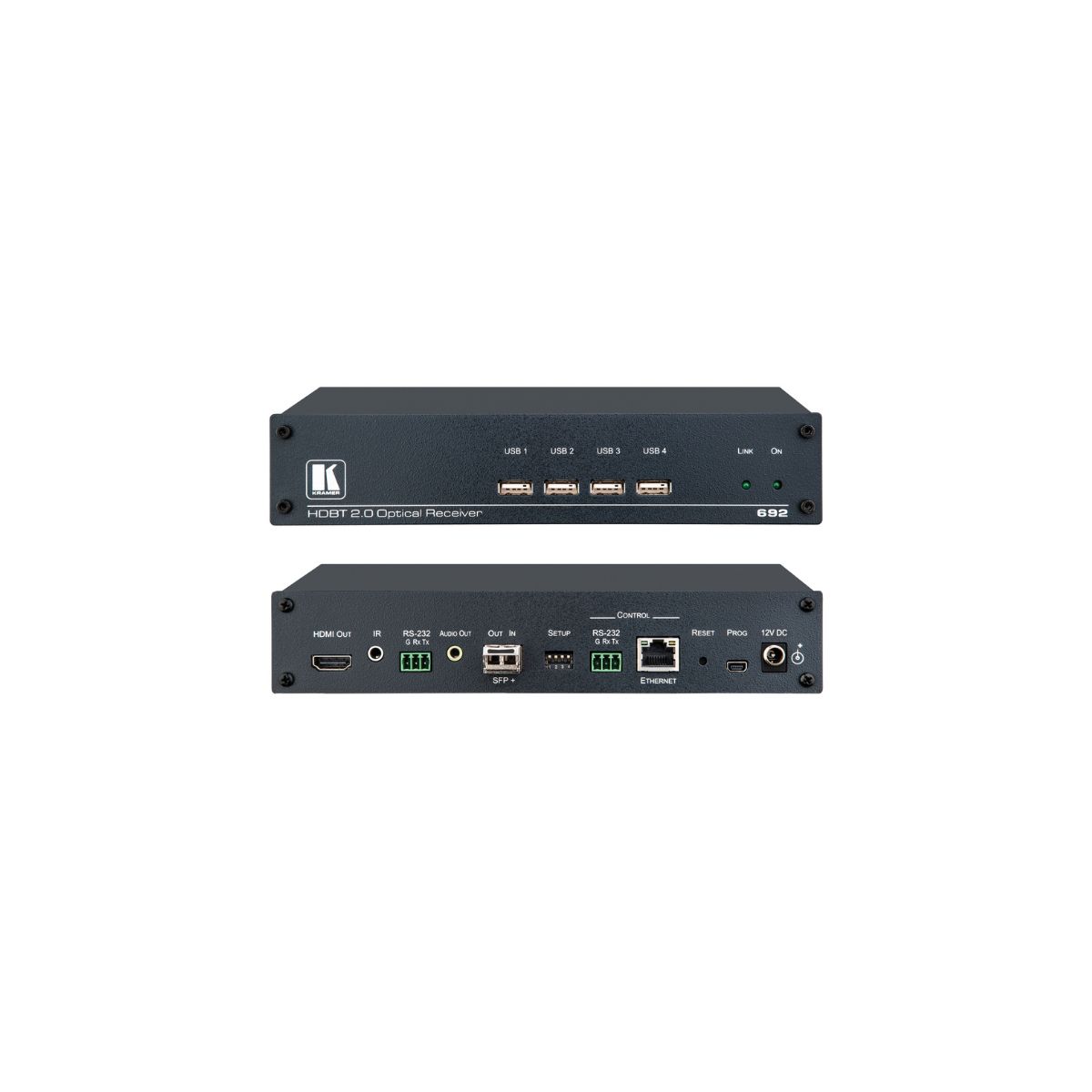

Inputs
  • 1 fiber optic: On a 10Gbps SFP+ LC connector complying with IEEE 802.3ae

Outputs
  • 1 HDMI: On the HDMI connector,
  • 1 Stereo Analog Unbalanced Audio: On a 3.5mm mini jack

Ports
  • 1 IR: On a 3.5mm mini jack for IR link extension
  • 1 USB: On a female USB–B connector for USB link extension
  • 1 RS–232: On a 3–pin terminal block for serial link extension
  • 1 RS–232: On a 3–pin terminal block for transmitter control
  • 1 100BaseT Ethernet: On an RJ–45 female connector for device control and LAN extension

USB Features
  • Integrated USB Hubs: 1

Extension Line
  • Optical Fiber: Multi–mode (MM) or single–mode (SM)
  • Optical Module: Kramer 10Gbps SFP+ IEEE 802.3ae compliant modules (MM is included)
  • Compliance: HDBaseT 2.0

Multi-mode Line
  • Compliance: G.651.1 OFNR fiber
  • Nominal Peak Wavelength: 850 nm
  • Typical Optical Transmission Power: –2.5dBm
  • Typical Optical Maximum Loss Budget: 8.6dB
  • Max Reach over OM3 MM Fiber: 3km (1.8 miles)
