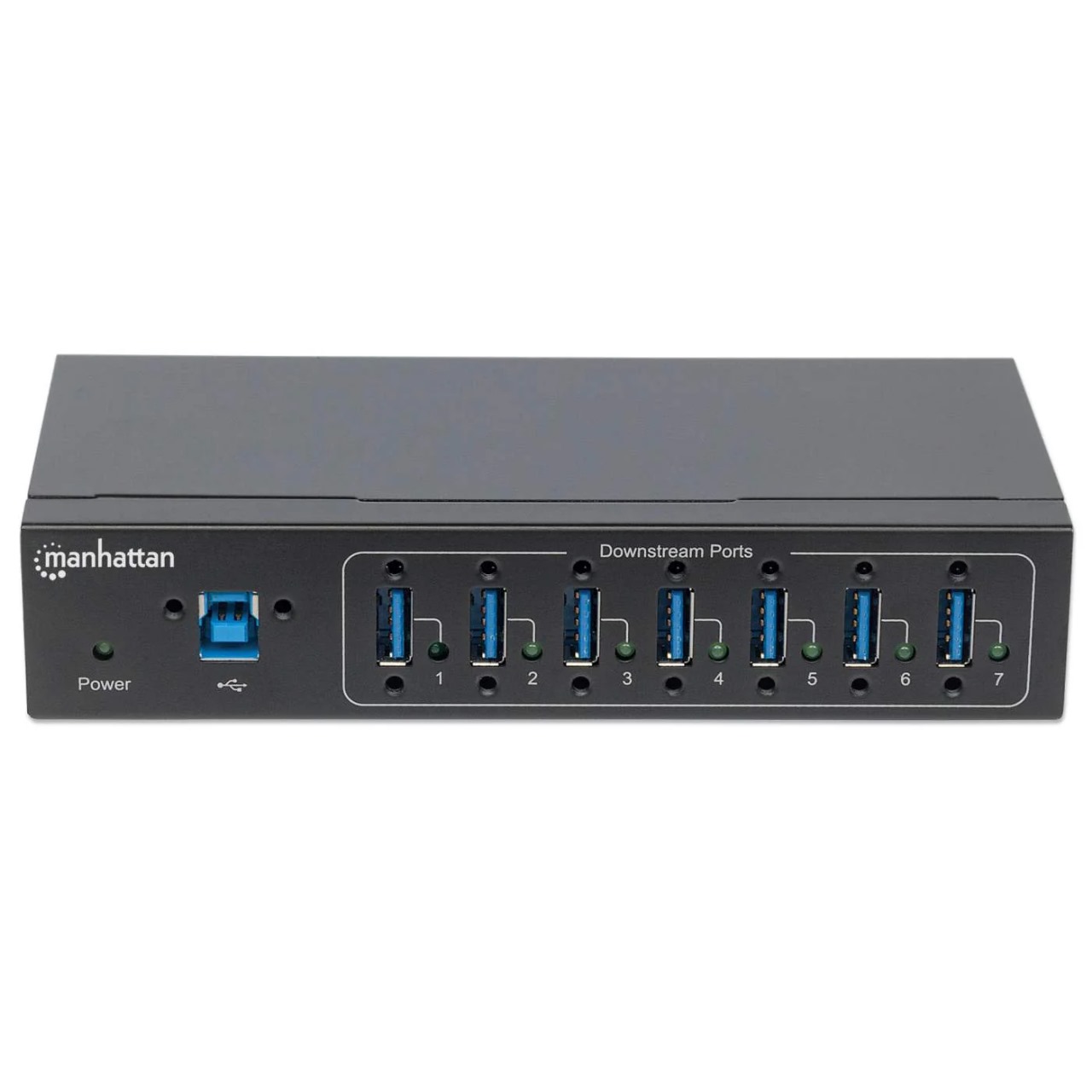

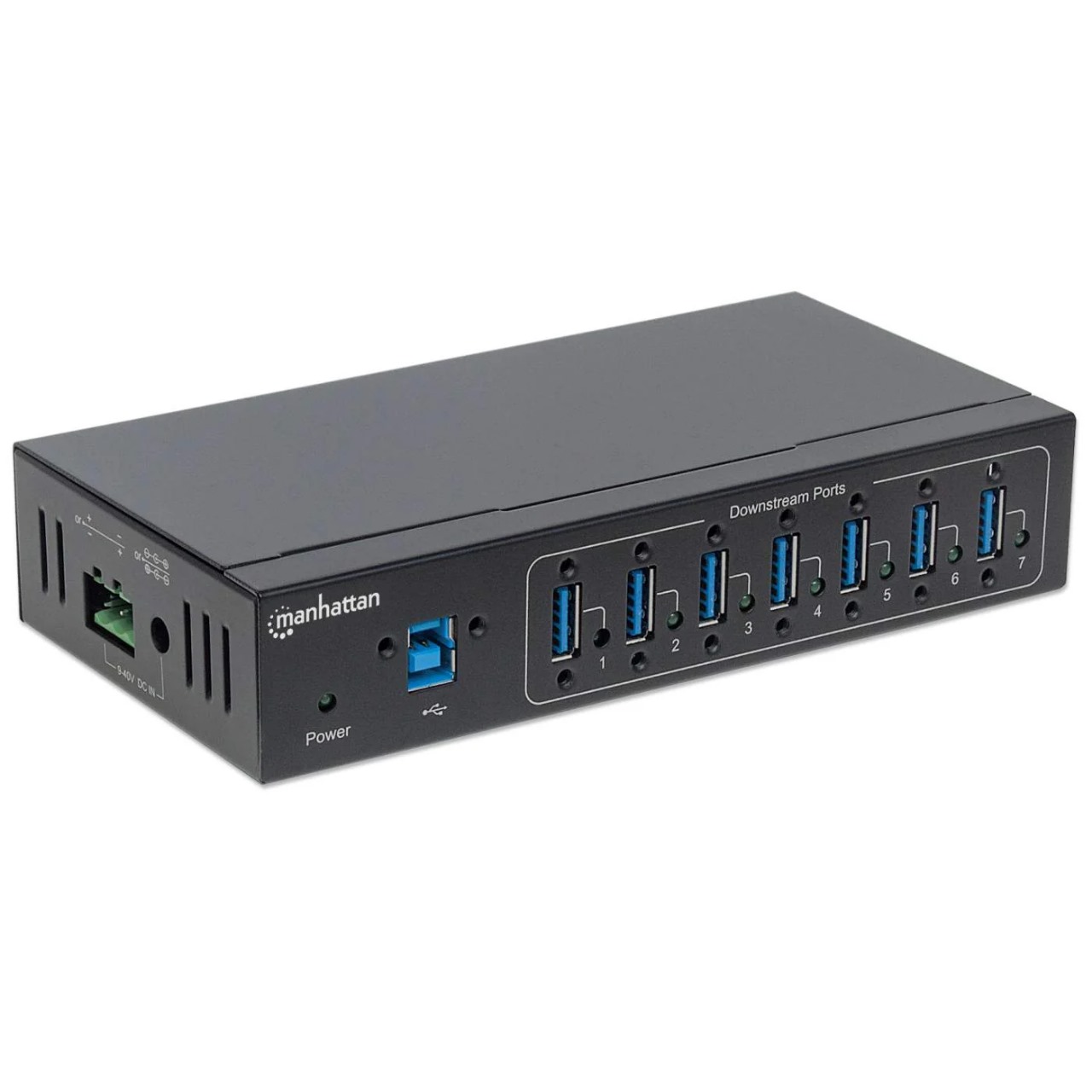

7-Port Industrial USB 3.0 Hub (164405)

The Manhattan 7-Port Industrial USB 3.0 Hub expands USB connectivity in demanding industrial environments and high-traffic areas. Its rugged design and versatile mounting options allow secure installation on a wall, desktop or DIN rail. Seven SuperSpeed USB 3.0 ports provide convenient connections for external hard drives, printers and other peripherals, with data transfer speeds of up to 5 Gbps. Built-in screw-lock ports help secure cables and improve stability in vibration-prone environments. Backward compatibility with previous USB standards ensures support for older devices, while plug-and-play and hot-swap capabilities provide easy and flexible operation.

Contact to Seller
  • Provides seven SuperSpeed USB 3.0 ports for additional peripherals
  • Supports data transfer rates up to 5 Gbps
  • Rugged metal housing and screw-locking USB connections offer robust security in high-traffic areas and industrial environments
  • Built-in rubber feet, detachable wall mounts and DIN-rail support provide multiple installation options
  • AC, bus-powered and terminal-block power options with overcurrent and 20 kV ESD protection; does not support simultaneous use of terminal block and AC power
  • Supports battery-charge specification 1.2 (BC 1.2)
  • Backward compatible with all USB 2.0 and 1.1 devices
  • Power and port-activation LED indicator
Download Product catalog
Transfer speeds: 12 Mbps / 480 Mbps / 5 Gbps
Seven USB 3.0 type A
One USB 3.0 Type-B
9–40 reverse–polarity VDC port: 5.5 x 2.1 x 9.5 mm
9–40 reverse–polarity VDC port, three-pin terminal block; recommended industrial power supply: 32 W/12 VDC
Dimensions (L x W x H): 175 x 110 x 65 mm (6.89 x 4.33 x 2.55 in.)
Net weight: 347 g (0.77 lbs.)
Gross weight: 563 g (1.24 lbs.)
USB 3.0 Type-A to Type-B cable: 1 m (3 ft.); screw-lock connector
Housing: metal
Detachable metal wall-mount brackets
Detachable DIN-rail mount bracket
DIN-rail: In accordance with IEC/EN 60715 (top hat)
