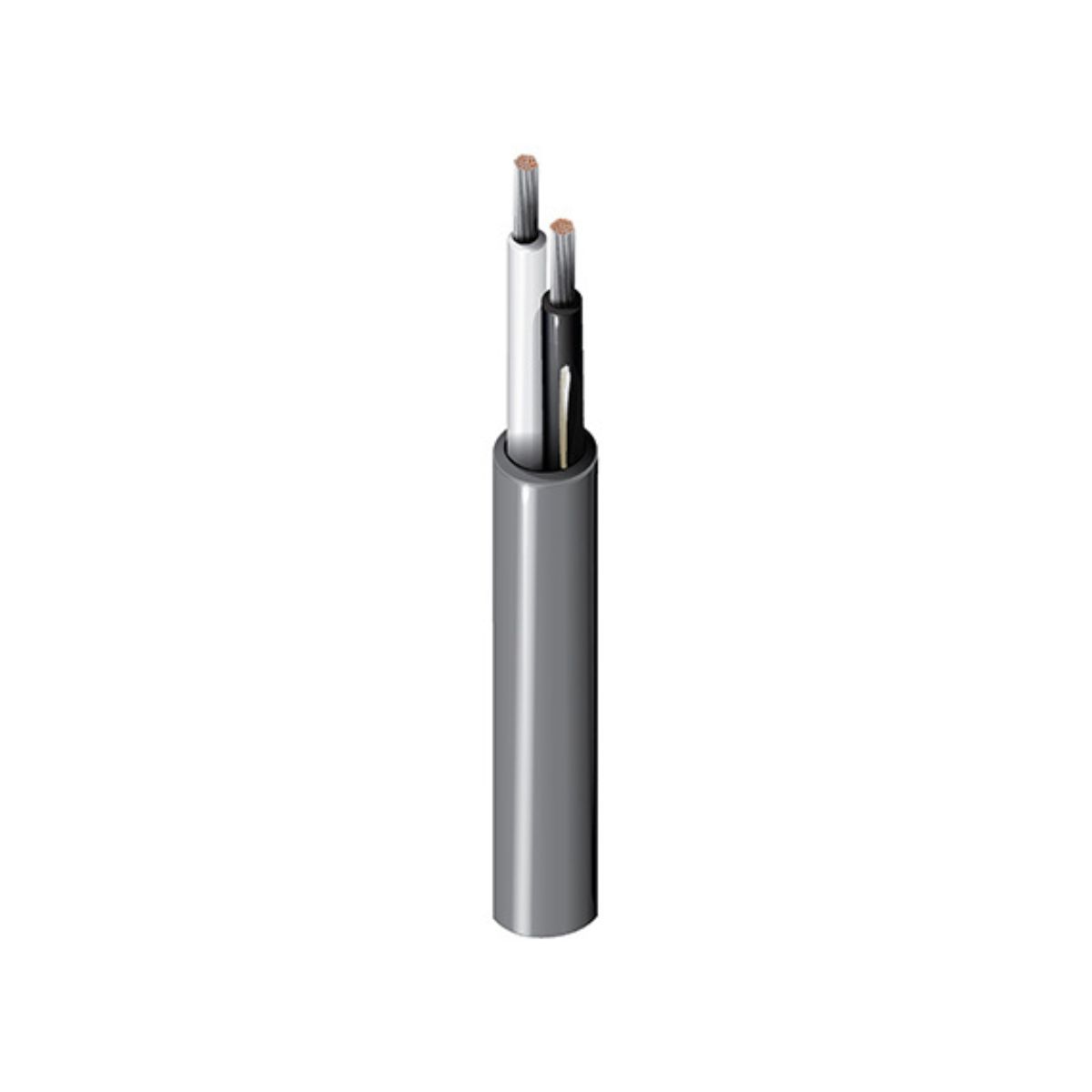

8471 16 AWG,2 CORE SPEAKER CABLE, TIN COPPER, CHROME
Electronic, 2 Conductor 16AWG (19x29) Tinned Copper, PVC Insulation, PVC Outer Jacket, CMG
Conductor
| Element | No. of Elements | Size | Stranding | Material |
| Pair(s) | 1 | 16 AWG | 19x29 | TC - Tinned Copper |
Insulation
| Element | Material | Nom. Thickness | Nom. Insulation Diameter | Color Code |
| Pair(s) | PVC - Polyvinyl Chloride | 0.023 in (0.58 mm) | 0.105 in (2.67 mm) | Black & White |
Electricals
| Element | Nom. Conductor DCR | Nom. Capacitance Cond-to-Cond | Nom. Inductance | Max. Current |
| Pair(s) | 4.52 Ohm/1000ft (14.8 Ohm/km) | 33 pF/ft (110 pF/m) | 0.19 µH/ft (0.62 µH/m) | 18 Amps per Conductor at 30ºC |
Temperature
| UL Temperature | Operating |
| 60°C | -20°C to +60°C |
