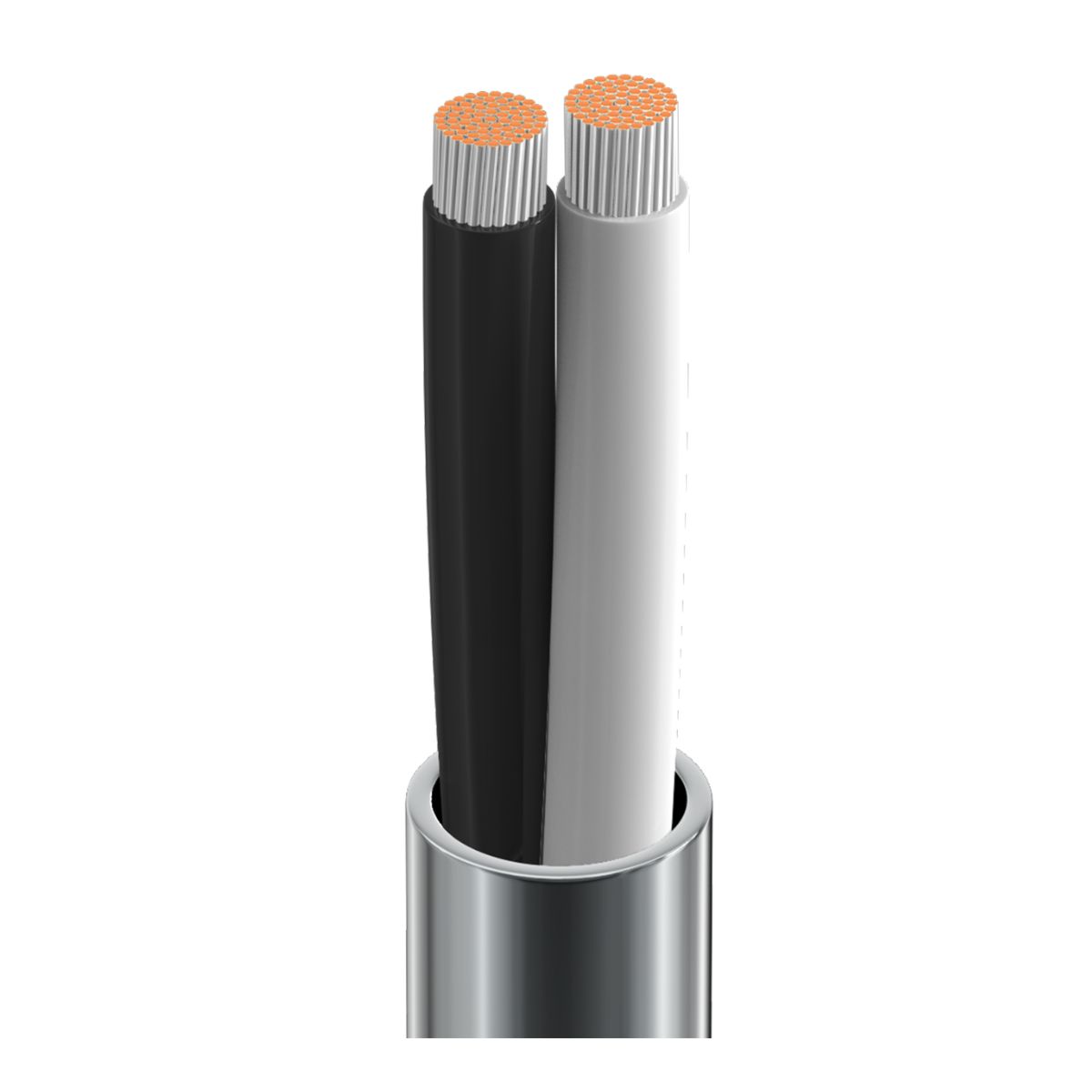

8477 12 AWG,2 CORE SPEAKER CABLE, TIN COPPER, CHROME
Electronic, 2 Conductor 12AWG (65x30) Tinned Copper, PVC Insulation, PVC Outer Jacket, CL3R
Conductor
| Element | No. of Elements | Size | Stranding | Material |
| Pair(s) | 1 | 12 AWG | 65x30 | TC - Tinned Copper |
Insulation
| Element | Material | Nom. Thickness | Nom. Insulation Diameter | Color Code |
| Pair(s) | PVC - Polyvinyl Chloride | 0.033 in (0.84 mm) | 0.158 in (4.01 mm) | Black & White |
Electricals
| Element | Nom. Conductor DCR | Nom. Capacitance Cond-to-Cond | Nom. Inductance | Max. Current |
| Pair(s) | 1.78 Ohm/1000ft | 35 pF/ft (110 pF/m) | 0.18 µH/ft (0.59 µH/m) | 30 Amps per Conductor at 30ºC |
Temperature
| UL Temperature | Operating |
| 90°C | -20°C to +90°C |
