AAD-OUT2-F16

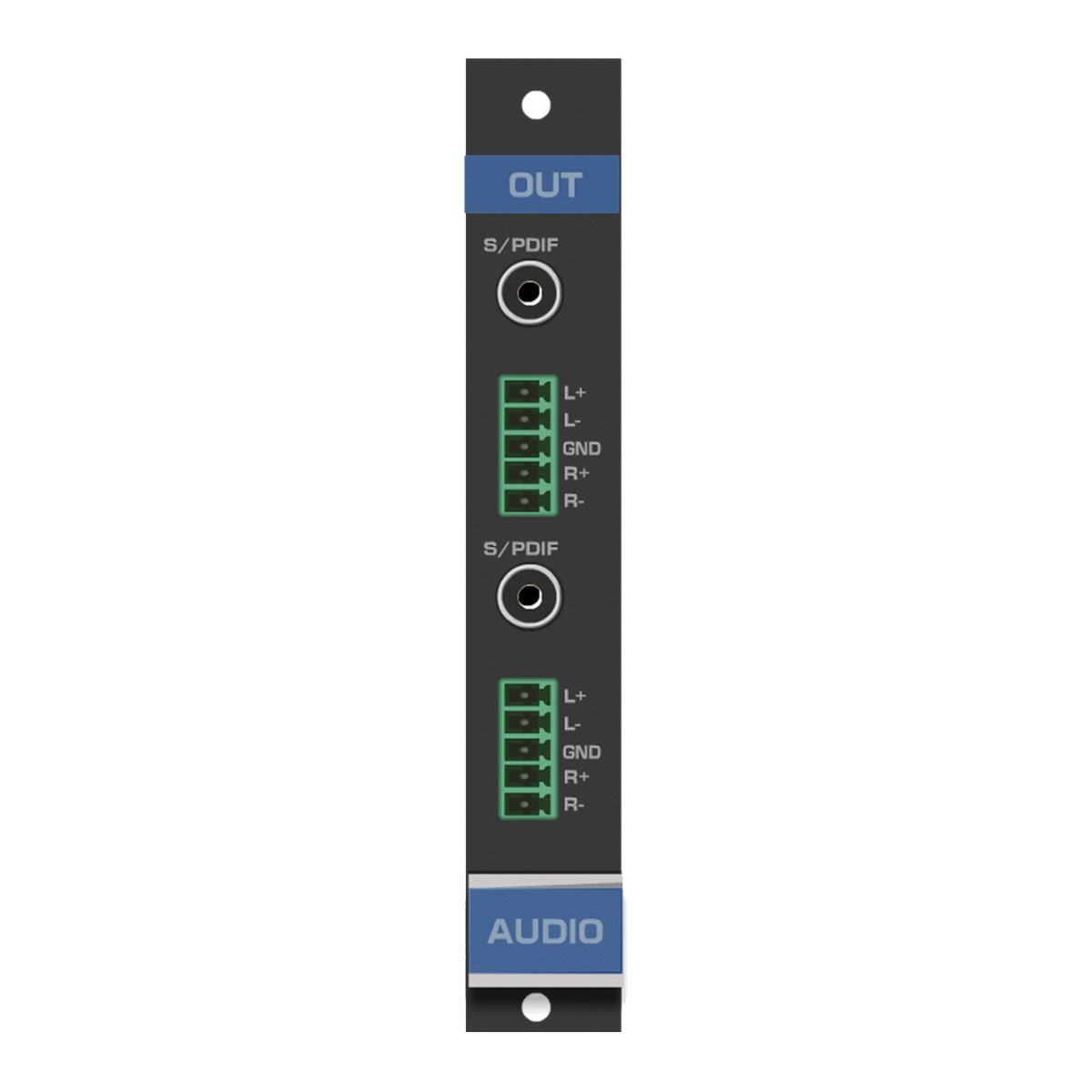

AAD−OUT2−F16 is a two−channel analog and digital output card for the VS−1616 Series Modular Multi−Format Digital Matrix Switchers. The AAD−OUT2−F16 outputs two analog and digital signals from the chassis.

Contact to Seller
  • Balanced Analog Audio over Terminal Block Connector.
  •  S/PDIF Digital Audio over RCA Connector.
Download Product catalog

PORTS
  • 2 S/PDIF (digital audio) on RCA connectors, 2 balanced audio stereo (analog audio) on 5–pin terminal blocks

TOTAL BANDWIDTH
  • Analog (–3db): >100kHz, Digital: 32kHz — 192kHz sample frequency

POWER CONSUMPTION
  • 5.8W

OPERATING TEMPERATURE
  • 0° to +40°C (32° to 104°F)

STORAGE TEMPERATURE
  • –40° to +70°C (–40° to 158°F)

HUMIDITY
  • 10% to 90%, RHL non–condensing
