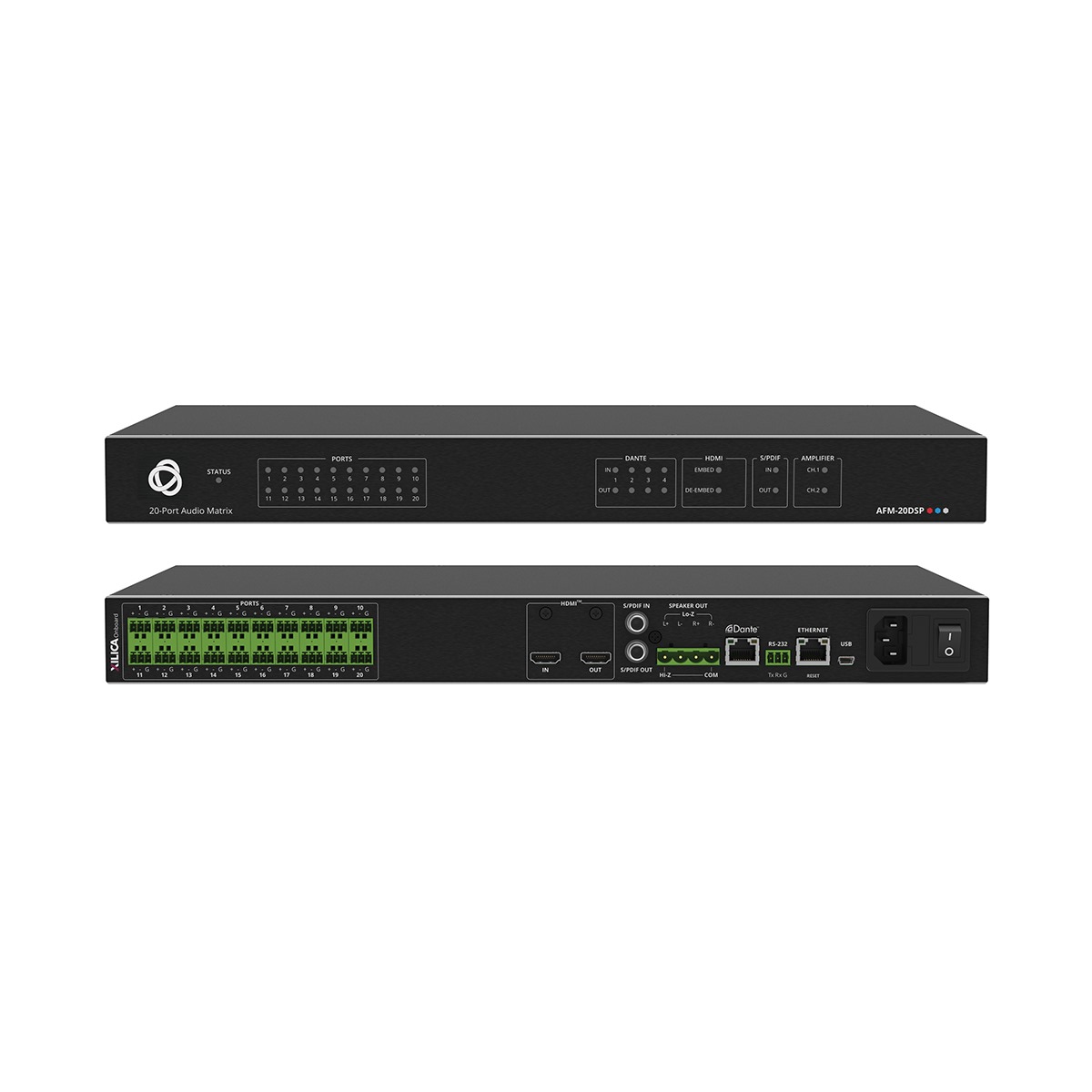

The AFM-20DSP is an advanced professional audio matrix switcher from Kramer’s XSPerience DSP family, featuring 20 configurable analog input/output ports. It includes multi-channel DSP, a built-in 2 × 60W amplifier at 8Ω, a 1 × 120W amplifier at 70V/100V, a 4 × 4 Dante interface, HDMI audio embedding and de-embedding, and S/PDIF connectivity. Its user-friendly graphical interface enables intuitive configuration and precise control of professional audio systems.
- Multi–Channel DSP
- Intuitive and Comprehensive Configuration and Control
- Built–in Power Amp — 2x60W @ 8Ω and 1x120W @ 70V / 100V
- HDMI audio embedding and de–embedding
- 4x4 Dante interface with 2 multicast flows
| Inputs |
1 HDMI: On a female HDMI connector 1 S/PDIF: On an RCA connector |
| Outputs |
1 HDMI: On a female HDMI connector 1 S/PDIF: On an RCA connector 1 S/PDIF: On an RCA connector |
| Ports |
1 Dante: On an RJ−45 female connector 1 mini USB: On a female mini USB−A connector |
| Amplifier |
Input Sensitivity Attains full power @ 0.3V (–10dBV) Output Power 2 x 60W @ 4Ω or 8Ω, 1 x 120W @ 70V or 100V Maximum Voltage Gain 26dB SE / 32dB BTL Frequency Response 20Hz to 20kHz @ +/–1dB S/N Ratio 80dB — 10dBV, 20 Hz — 20 kHz |
| Video | Max Bandwidth: 10.2Gbps (3.4Gbps per graphic channel) Max Resolution: 4K UHD @60Hz (4:2:0) 24bpp resolution Compliance: HDMI and HDCP 1.4 |
| User Interface | Front Panel LEDs: 1 status, 20 analog audio ports, 4 Dante I/O, HDMI embed, HDMI de-embed, 2 S/PDIF I/O, and 2 amplifier channels |
