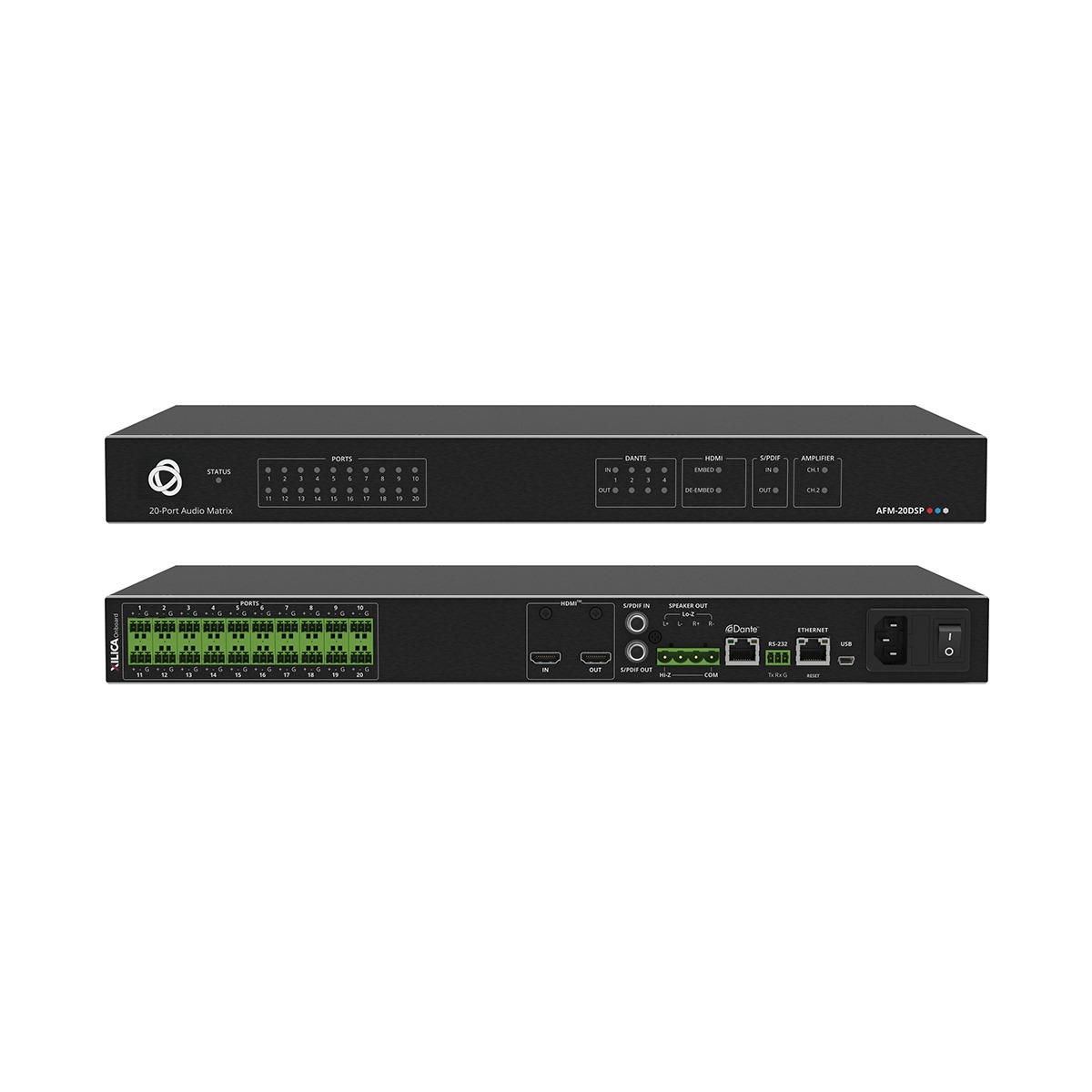

AFM-20DSP-LE DSP and Interchangeable Inputs & Outputs
The AFM-20DSP-LE is a professional audio matrix switcher from Kramer’s XSPerience DSP family, featuring 20 configurable analog ports and multi-channel digital signal processing (DSP). Its user-friendly graphical interface simplifies audio system configuration, providing flexible and efficient control for professional audio applications.
- Multi–Channel DSP
- Intuitive and Comprehensive Configuration and Control
- Advanced Audio Matrix Switcher — Professional, studio-grade signal conversion technology, including the latest generation 32–bit advanced Digital-to-Analog Converter architecture to achieve excellent dynamic performance and improved tolerance to clock jitter.
- Maintains the quality of the original audio signal with selectable sampling rates up to 96 kHz.
- Flat frequency response, unmatched sonic performance, excellent signal-to-noise ratio, and extraordinarily low distortion levels.
| Ports | 1 USB: On a female mini USB–A connector 1 RS-232: On a 3–pin terminal block 1 Ethernet: On an RJ–45 female connector |
| User Interface | Front Panel LEDs: 1 status, 20 analog audio ports |
| Control RS-232 | Baud Rate: 115200 |
| Supported Web Browsers | Windows: Chrome |
| Power | Consumption: 340mA Source: 100–240V AC 50/60Hz |
| Environmental Conditions | Operating Temperature: 0° to +40°C (32° to 104°F) Storage Temperature: –40° to +70°C (–40° to 158°F) Humidity: 10% to 90%, RHL non–condensing |
| Enclosure | Size: 19” 1U Type: Aluminum Cooling: Fans |
| Accessories | Included: Power cord |
