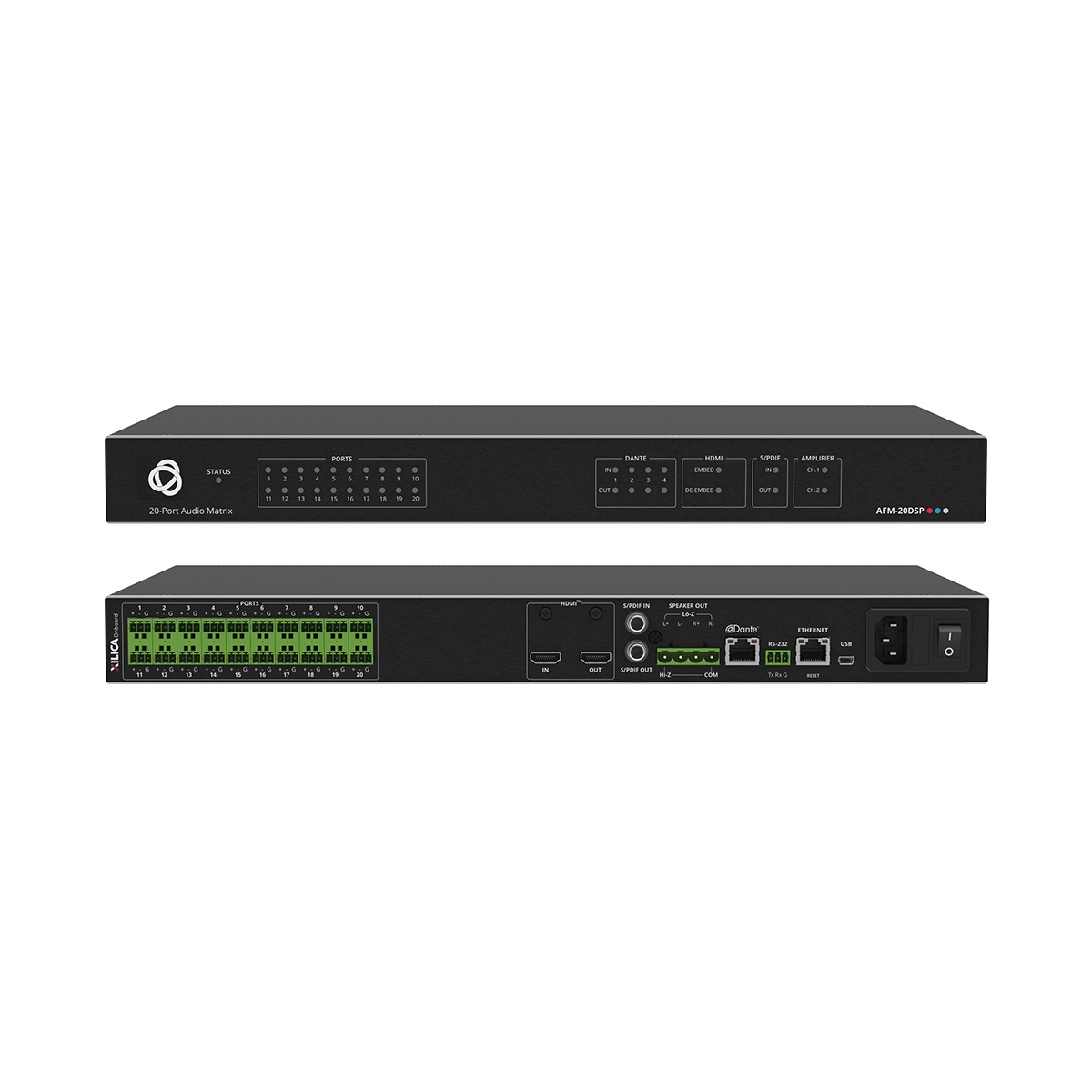

AFM-20DSP Matrix with DSP and Interchangeable Inputs & Outputs

The AFM-20DSP is a professional audio matrix switcher from Kramer’s XSPerience DSP family, featuring 20 configurable analog ports, multi-channel DSP, and built-in power amplification. It supports 2×60W at 8Ω and 1×120W at 70V/100V, along with a 4×4 Dante interface, HDMI audio embedding and de-embedding, and S/PDIF connectivity. Its user-friendly graphical interface simplifies audio system configuration and management.

Contact to Seller
  • Multi–Channel DSP
  • Intuitive and Comprehensive Configuration and Control
  • Built–in Power Amp — 2x60W @ 8Ω and 1x120W @ 70V / 100V
  • HDMI audio embedding and de–embedding
  • 4x4 Dante interface with 2 multicast flows
Download Product catalog
Inputs

1 HDMI: On a female HDMI connector

1 S/PDIF: On an RCA connector
Outputs

1 HDMI: On a female HDMI connector

1 S/PDIF: On an RCA connector

120W Amplifier: On a 4−pin large terminal block
Ports

1 Dante: On an RJ−45 female connector

1 mini USB: On a female mini USB−A connector

1 RS-232: On a 3−pin terminal block
Amplifier Input Sensitivity Attains full power @ 0.3V (–10dBV) Output Power 2 x 60W @ 4Ω or 8Ω, 1 x 120W @ 70V or 100V Amplifier Type Class D Maximum Voltage Gain 26dB SE / 32dB BTL Dynamic Range 119dB Frequency Response 20Hz to 20kHz @ +/–1dB S/N Ratio 80dB — 10dBV, 20 Hz — 20 kHz Audio THD + Noise THD+N (1kHz @ 1W) 0.003 % Audio 2nd Harmonic 0.08% @ 75W RMS @ 4Ω 6.67kHz
Video Max Bandwidth: 10.2Gbps (3.4Gbps per graphic channel) Max Resolution: 4K UHD @60Hz (4:2:0) 24bpp resolution Compliance: HDMI and HDCP 1.4
User Interface Front Panel LEDs: 1 status, 20 analog audio ports, 4 Dante I/O, HDMI embed, HDMI de-embed, 2 S/PDIF I/O, and 2 amplifier channels
Power Consumption: 190VA max Source: 100−240V AC 50/60Hz
Environmental Conditions Operating Temperature: 0° to +40°C (32° to 104°F) Storage Temperature: −40° to +70°C (−40° to 158°F) Humidity: 10% to 90%, RHL non−condensing
