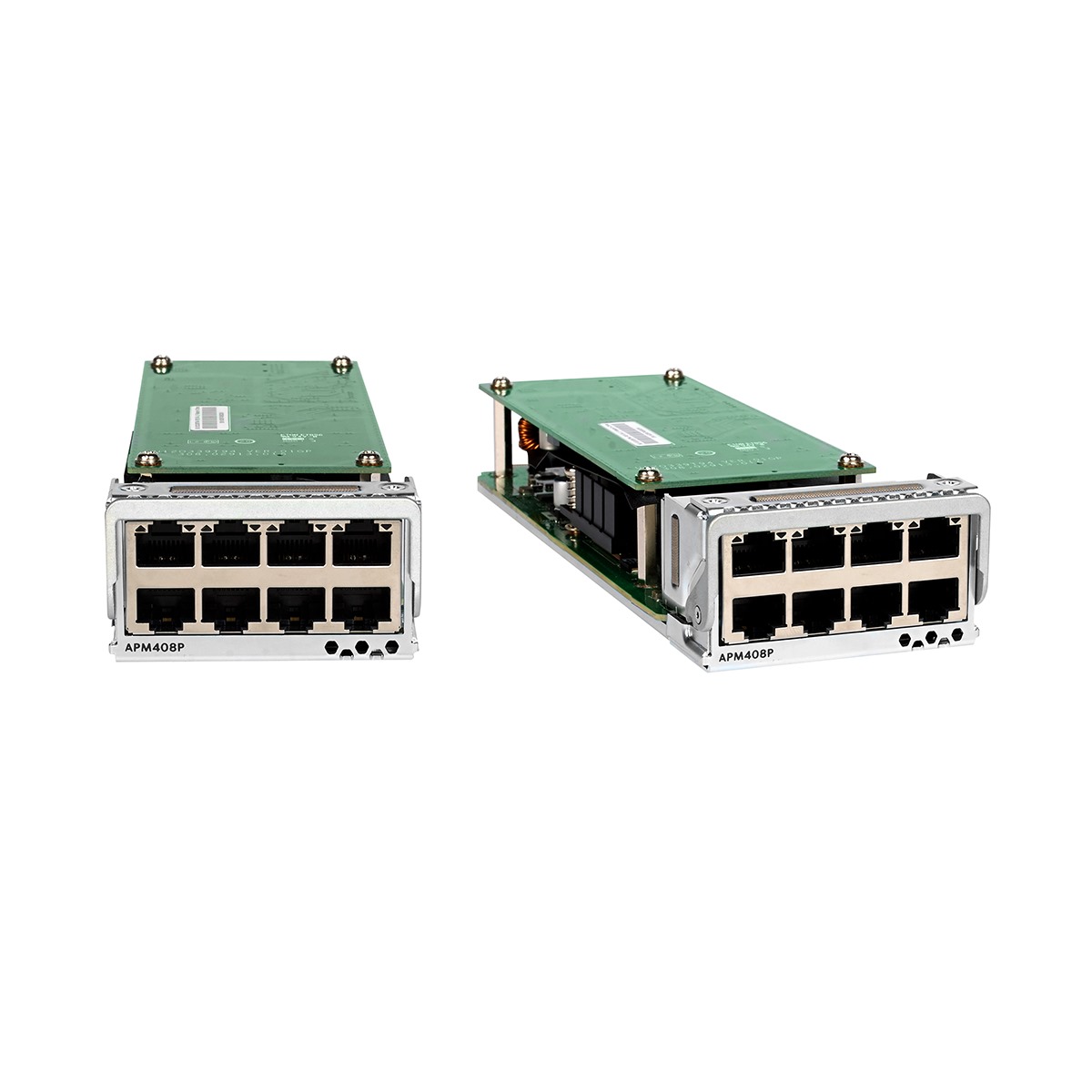

The APM408P is a PoE-powered port card designed for the M4300-96X modular switch chassis, featuring eight PoE+ ports with 10G fiber optic connectivity. It is recommended for large KDS-8 copper deployments; note that only the first six slots of the M4300-96X provide PoE power to the APM408P.
-
8 × 10G Ethernet Ports for high-speed network connectivity.
-
PoE+ Support to deliver power and data over Ethernet.
-
RJ-45 Connectors for copper Ethernet connections.
-
Modular Switch Compatibility designed for the NETGEAR M4300-96X chassis.
-
High-Speed Networking suitable for bandwidth-intensive network deployments.
-
KDS-8 Deployment Support: Recommended for large KDS-8 copper deployments.
-
Power Consumption: 38W.
-
Compact Design: 21.20 × 6.70 × 3.80 cm.
-
Lightweight Construction: approximately 0.4 kg
| Ports | 8 10G Ethernet with PoE+: On RJ−45 connectors |
| Power | Consumption: 38W |
| Product Dimensions | 21.20cm x 6.70cm x 3.80cm (8.35" x 2.64" x 1.50" ) W, D, H |
| Product Weight | 0.4kg (0.9lbs) approx |
| Shipping Dimensions | 24.00cm x 9.30cm x 5.90cm (9.45" x 3.66" x 2.32" ) W, D, H |
| Shipping Weight | 0.5kg (1.2lbs) approx |
