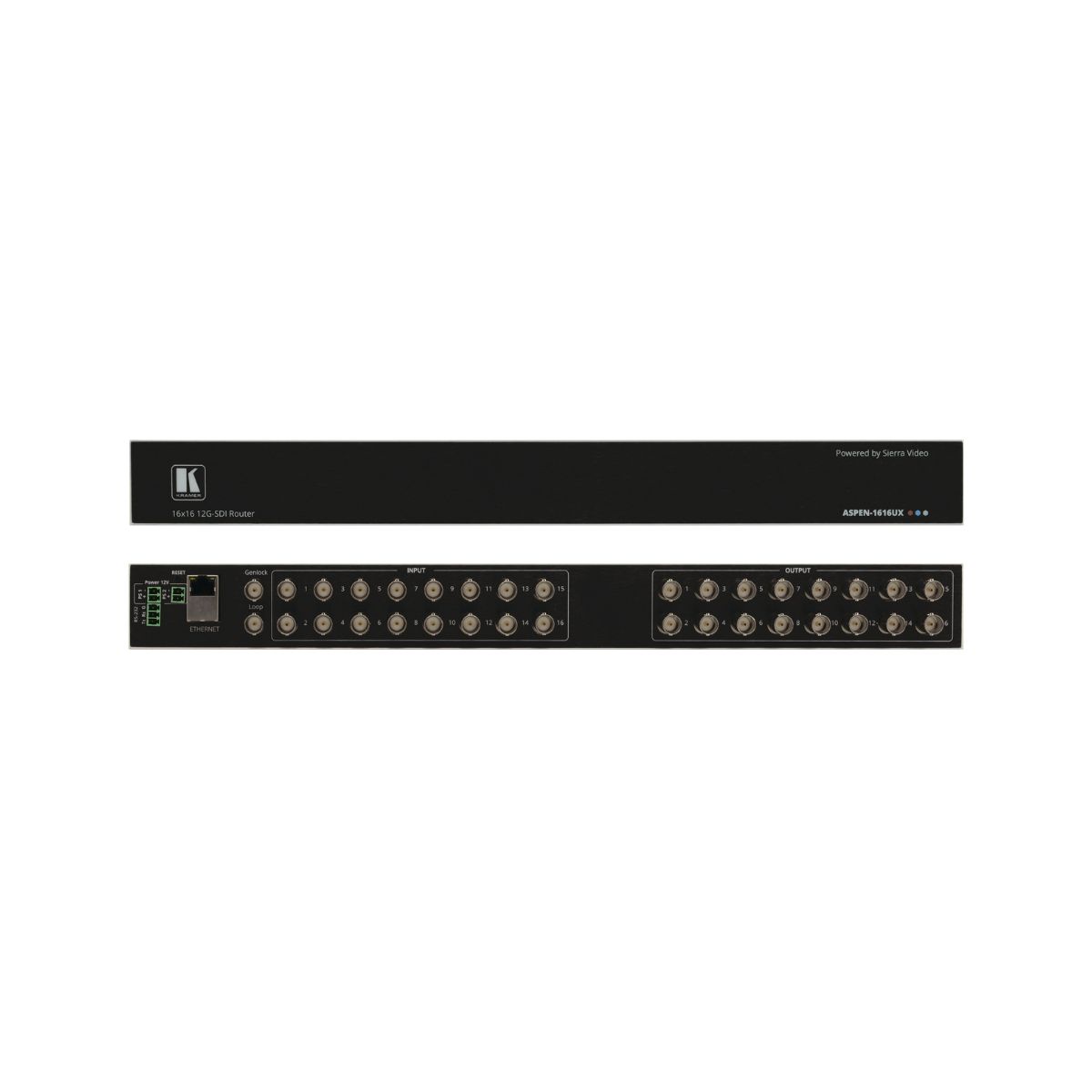

ASPEN-1616UX

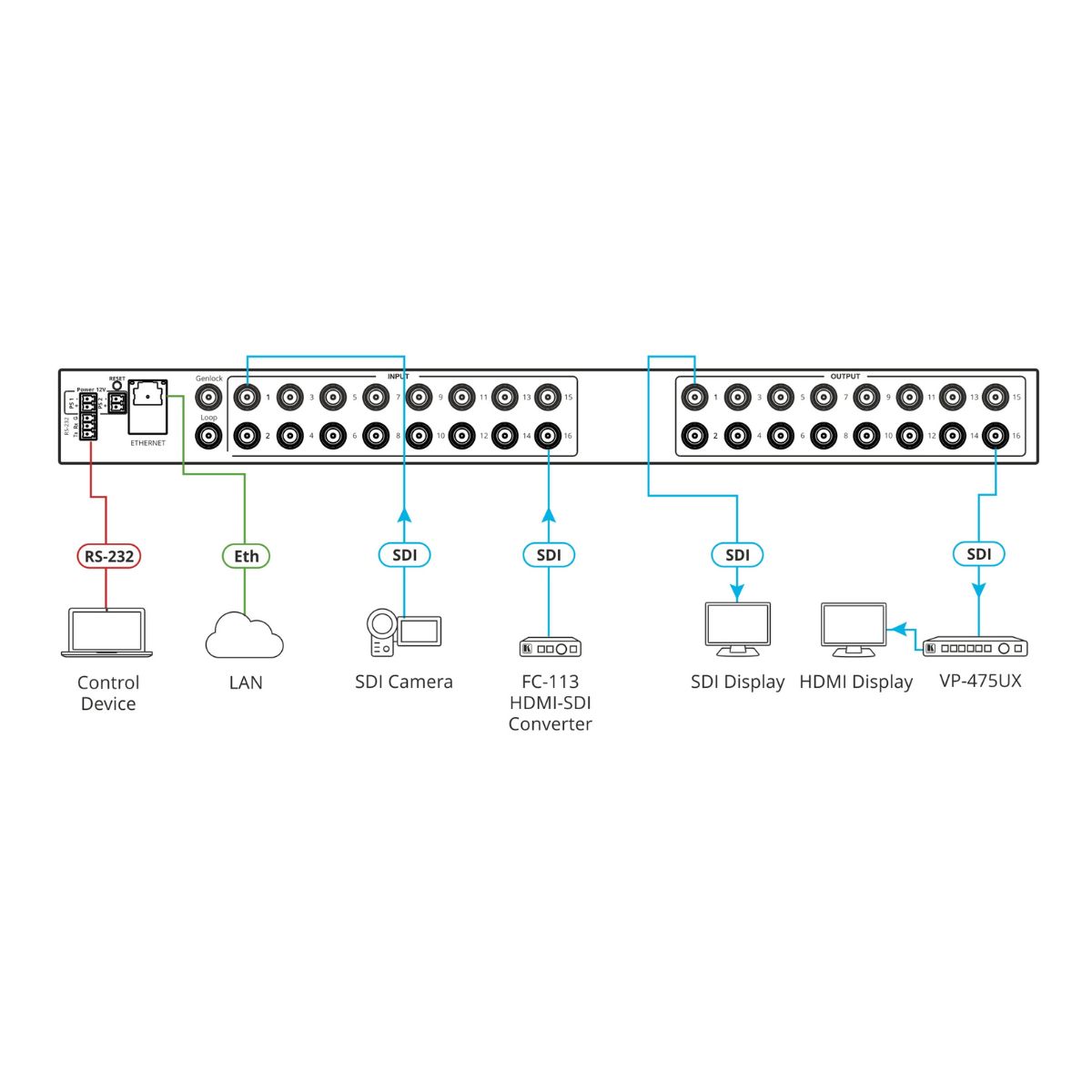

ASPEN−1616UX is a 16x16 matrix switcher for SDI signals of up to 12G. It equalizes the input signal and reclocks the output signal to gain an extended−reach signal extension. ASPEN−1616UX is easy to operate and control through the network using the intuitive web pages and through RS−232 using a serial controller.

Contact to Seller
  • SDI signals up to 12G
  • Multi–Standard Operation — SDI, HD–SDI, 3G HD–SDI, 6G, and 12G SDI
  • Depth — 4 inches
  • Genlock clean switching and versatility

Inputs
  • 16 12G SDI/HD-SDI/SDI Video: 75Ω on BNC connectors
  • 1 Genlock: Looping on a BNC connector

Outputs
  • 16 12G SDI/HD-SDI/SDI Video: 75Ω on BNC connectors
  • 1 Genlock Loop: Passive loop output on a BNC connector

Video
  • Standards: 12G–SDI — SMPTE ST–2082–1, 3G HD–SDI — SMPTE 424M, HD–SDI — SMPTE 292M, SDI–SMPTE 259M/344M
  • Max Resolution: 4K@60Hz (4:2:2)
  • Max Bandwidth: 12Gbps

Extension Line
  • SD Signals: Up to 300m
  • 1.5G HD Signals: Up to 200m
  • 3G Signals: Up to 100m
  • 6G Signals: Up to 100m
  • 12G Signals: Up to 80m
  • Coupling: DC

User Interface
  • Controls: Remote RS–232, Ethernet, web pages

Power
  • Consumption: 12V DC, 1.35A
  • Source: 12V DC, 5A
