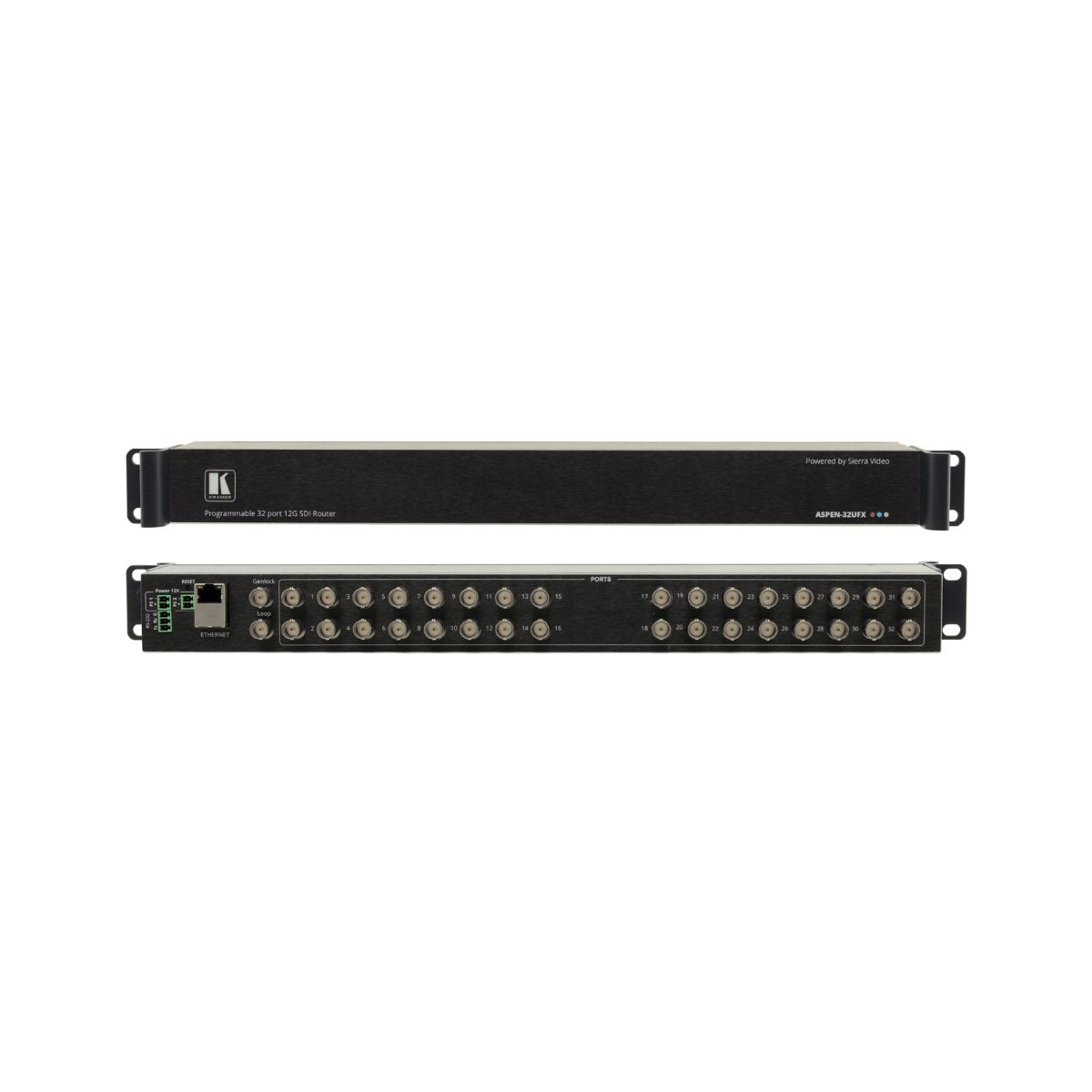

ASPEN-32UFX

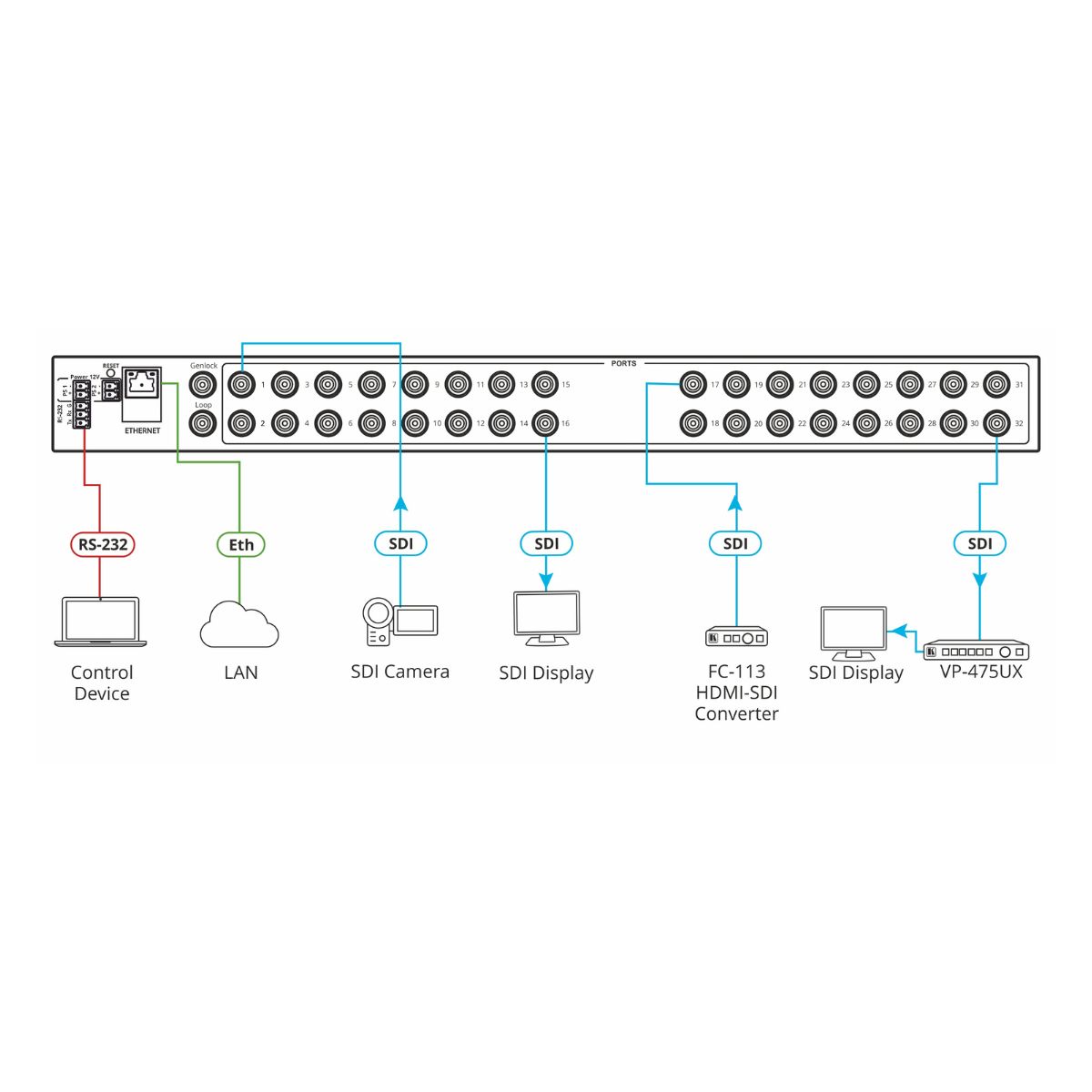

ASPEN−32UFX is a 32−port matrix switcher for SDI signals of up to 12G SDI. Each SDI port can be defined as either an input or output, enabling flexible configurations such as a 1x31 distribution amplifier, 31x1 switcher, 16x16 matrix switcher or any other possible input−output combination. ASPEN−32UFX is easy to operate and control through the network using the intuitive web pages and through RS−232 using a serial controller.

Contact to Seller
  • Max. Data Rate — 12Gbps.
  •  HDTV Compatible.
  •  Multi–Standard Operation — 12G–SDI — SMPTE ST–2082–1, 3G–SDI — SMPTE 424M, HD–SDI — SMPTE 292M, SDI — SMPTE 259M/344M
  •  Kramer Equalization & re–Klocking™ Technology — Rebuilds the digital signal to travel longer distances.
  •  Supports ANC Data — Embedded audio, teletext, time code, etc.

Ports
  • 32 12G-SDI/3G-SDI/HD-SDI/SDI Video: 75Ω on BNC connectors (by default, 1 to 16 are set as inputs and 17 to 32 are set as outputs)
  • 1 Genlock: 75Ω on a BNC connector

Video
  • Standards: 12G–SDI — SMPTE ST–2082–1, 3G–SDI — SMPTE 424M, HD–SDI — SMPTE 292M, SDI — SMPTE 259M/344M
  • Max Resolution: 4K@60Hz (4:2:2)
  • Max Bandwidth: 12Gbps

Extension Line
  • SD Signals: Up to 300m
  • 1.5G HD Signals: Up to 200m
  • 3G Signals: Up to 100m
  • 6G Signals: Up to 100m
  • 12G Signals: Up to 80m
  • Coupling: DC

User Interface
  • Controls: Remote RS–232, Ethernet, Web pages

Power
  • Consumption: 12V DC, 2A
  • Source: 12V DC, 5A

Environmental Conditions
  • Operating Temperature: 0° to +40°C (32° to 104°F)
  • Storage Temperature: –40° to +70°C (–40° to 158°F)
  • Humidity: 10% to 90%, RHL non–condensing
