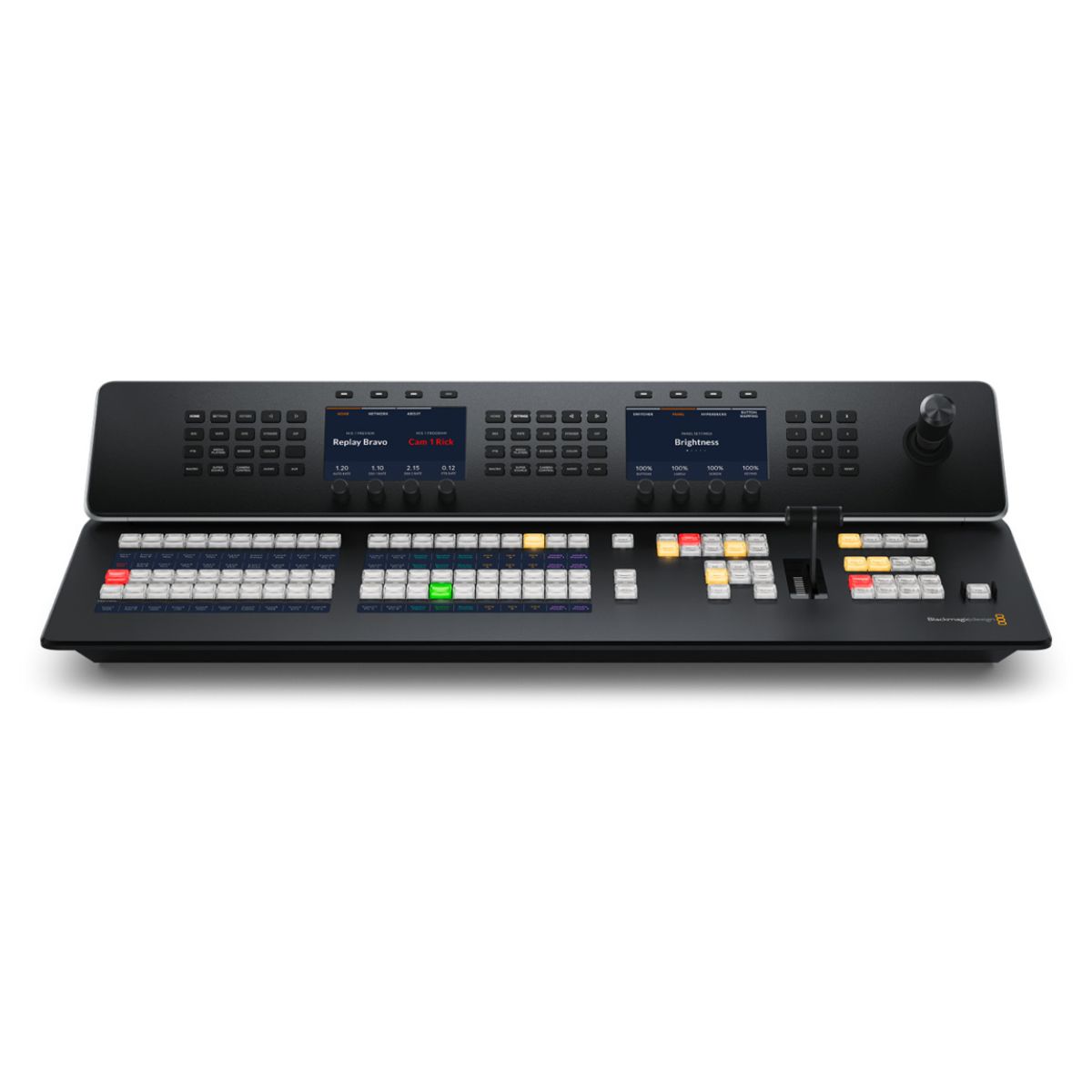

ATEM 1 M/E Advanced Panel 20

The ATEM 1 M/E Advanced Panel 20 is a single M/E, 20 input button switching panel that includes the features and flexibility needed for switching big and small productions in a highly portable and compact design. It has 2 independent system control LCDs plus it can control up to 4 M/Es in larger switchers. All input buttons include LCDs for custom labeling and there is an independent select bus. Dual power inputs provide redundancy, and the built-in 4-port Ethernet switch means no additional network equipment is needed, so it will fit even the most challenging live production spaces!

Contact to Seller

Connections

  • Ethernet
  • 4 x 10/100/1000 BASE-T with loop outputfor additional control panels or computers.
  • Software Updates
  • 1 x USB-C for firmware updates.

Number of Mix Effects Rows

1

Direct Cross Points

20

Shifted Cross Points

40

Crosspoint Button Type

Tri-Color LED

Preview Transition

1

Transition Rate Displays

Via main menu
