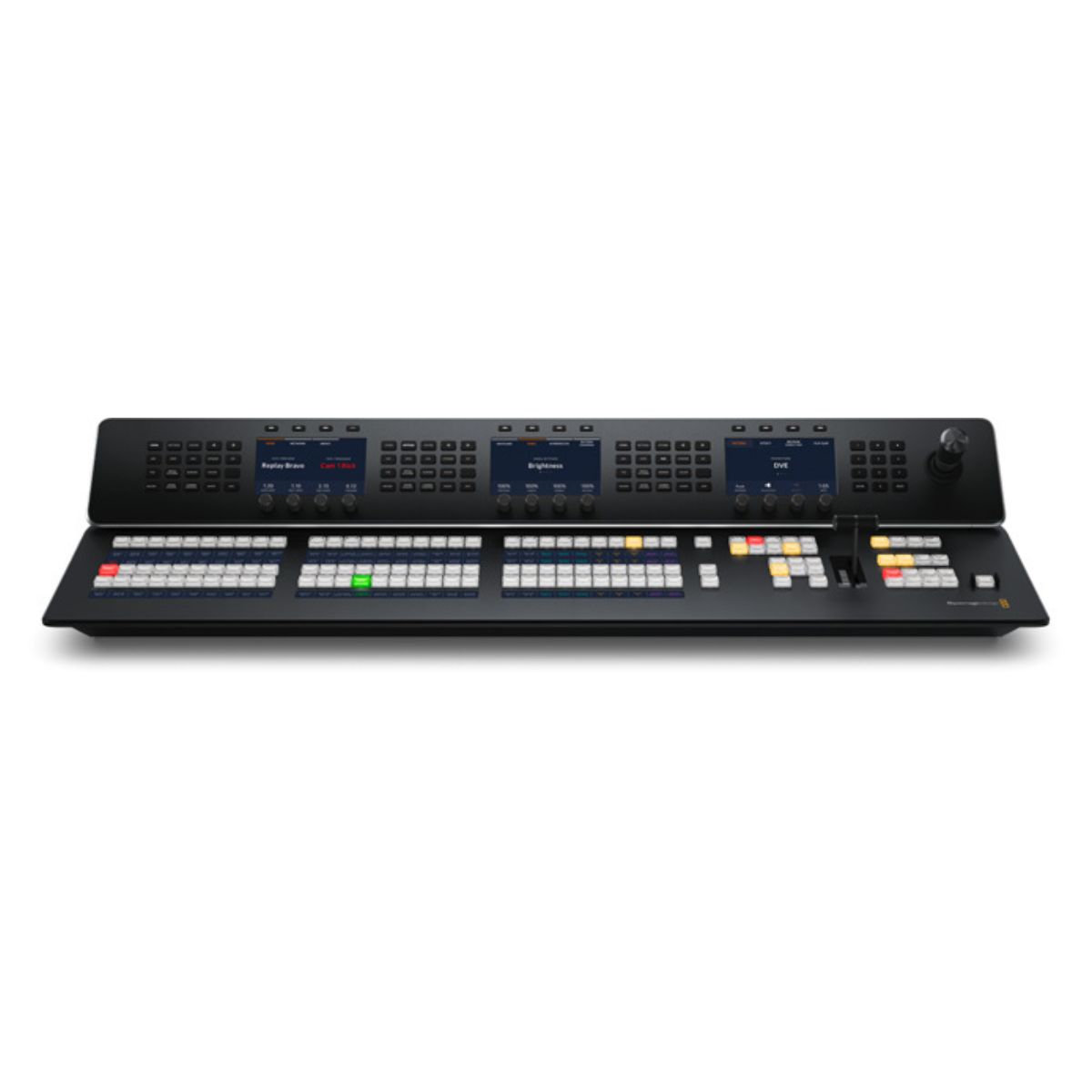

The ATEM 1 M/E Advanced Panel 30 features a single M/E row, 30 input button design that is ideal for switching big productions from desk surfaces that are not deep enough for a bigger panel. It has 3 independent system control LCDs plus it can control up to 4 M/Es in larger switchers. All input buttons include LCDs for custom labeling and it also includes an independent select bus! Dual power inputs provide redundancy, and the built-in 4-port Ethernet switch means no additional network equipment is needed, so it will fit even the most challenging live production spaces!
|
Number of Mix Effects Rows |
1 |
|
Direct Cross Points |
30 |
|
Shifted Cross Points |
60 |
|
Crosspoint Button Type |
Tri-Color LED |
|
Preview Transition |
1 |
|
Transition Rate Displays |
Via main menu |
|
LCD Menu Displays |
3 |
|
Menu Control |
3 x 20 buttons |
|
Dedicated Macro Buttons |
1 x 30 |
|
Transport Control Buttons |
8 |
|
Destination Bus |
1 |
|
Source Select Bus |
1 |
|
Fader Bar |
1 |
|
3 Axis Joystick |
1 |
|
Numeric Keypad |
1 |
|
Ethernet |
4 x 10/100/1000 BASE-T with loop outputfor additional control panels or computers. |
|
Software Updates |
1 x USB-C for firmware updates. |
