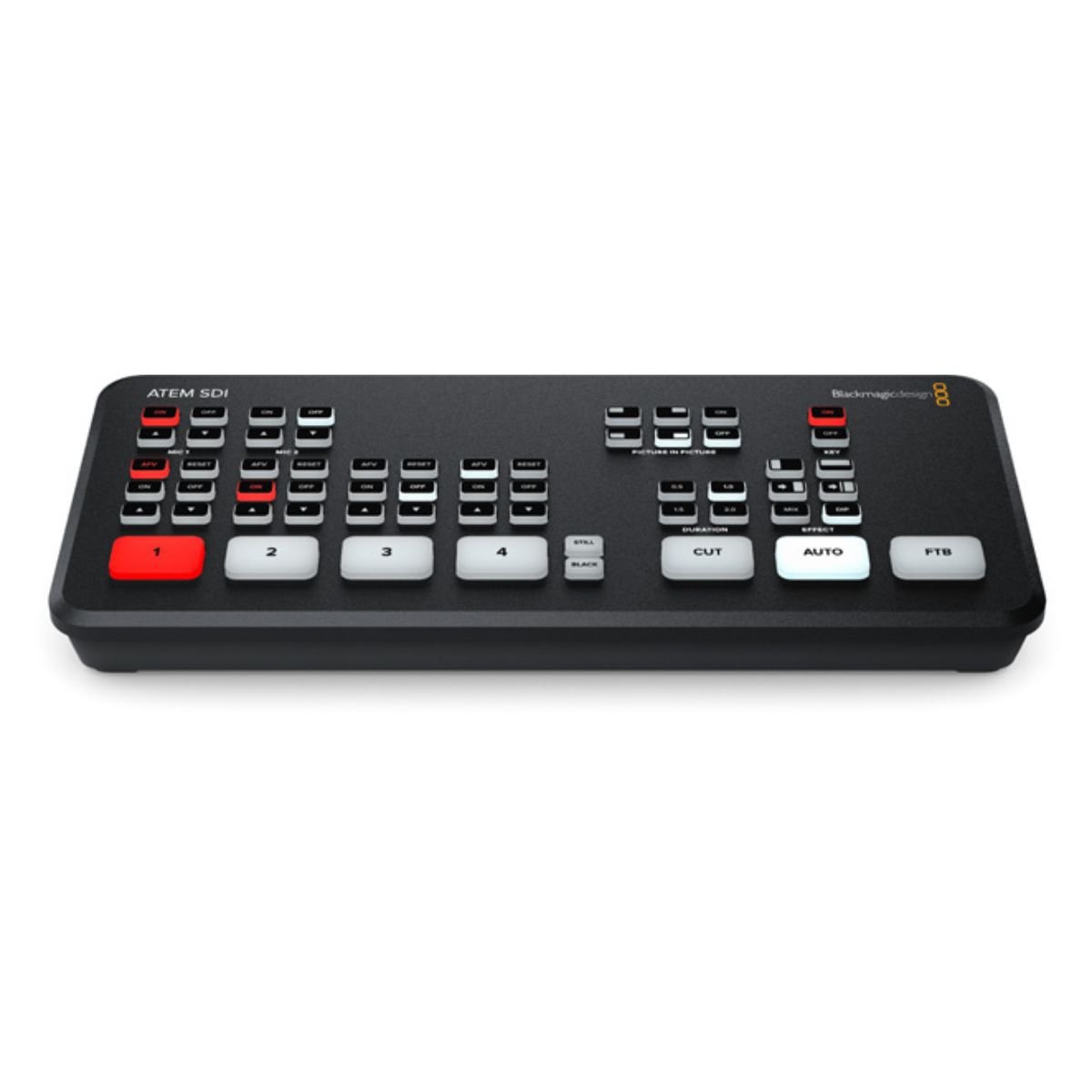

ATEM SDI is fast to set up and easy to use. It includes 4 standards-converted SDI inputs, a USB webcam, 2 SDI outputs, a Fairlight audio mixer with EQ and dynamics, DVE for picture-in-picture, transition effects, green screen chroma key, a 20-still media pool for titles, and free ATEM Software Control.
Product Specifics
|
Upstream Keyers |
1 |
|
Downstream Keyers |
1 |
|
Advanced Chroma Keyers |
1 |
|
Linear/Luma Keyers |
2 |
|
Transition Keyer |
DVE only. |
|
Total Number of Layers |
5 |
|
Pattern Generators |
1 |
|
Color Generators |
2 |
|
DVE With Borders and Drop Shadow |
1 |
|
Interface |
Minimum monitor resolution of 1366 x 768. |
Audio
|
Audio Mixer |
6 input x 2 channel mixer. Selectable On/Off/Audio-Follow-Video per channel plus separate gain control per channel. Level and Peak metering. Plus new Fairlight audio enhancements: Compressor, Gate, Limiter, 6 bands of parametric EQ. Master gain control. |
|
Analog Input |
Unbalanced stereo |
|
Analog Input Delay |
Up to 8 frames |
|
Input Impedance |
1.8k |
|
Max Input Level |
+6dBV |
|
Mic Plug-In Power |
Available on both 3.5mm mini jack connections. |
Media Player
|
Media Players |
1 |
|
Channels |
Fill and key for each Media Player. |
|
Media Pool Still Image Capacity |
20 with fill and key. |
|
Media Pool Still Image Format |
PNG, TGA, BMP, GIF, JPEG and TIFF. |

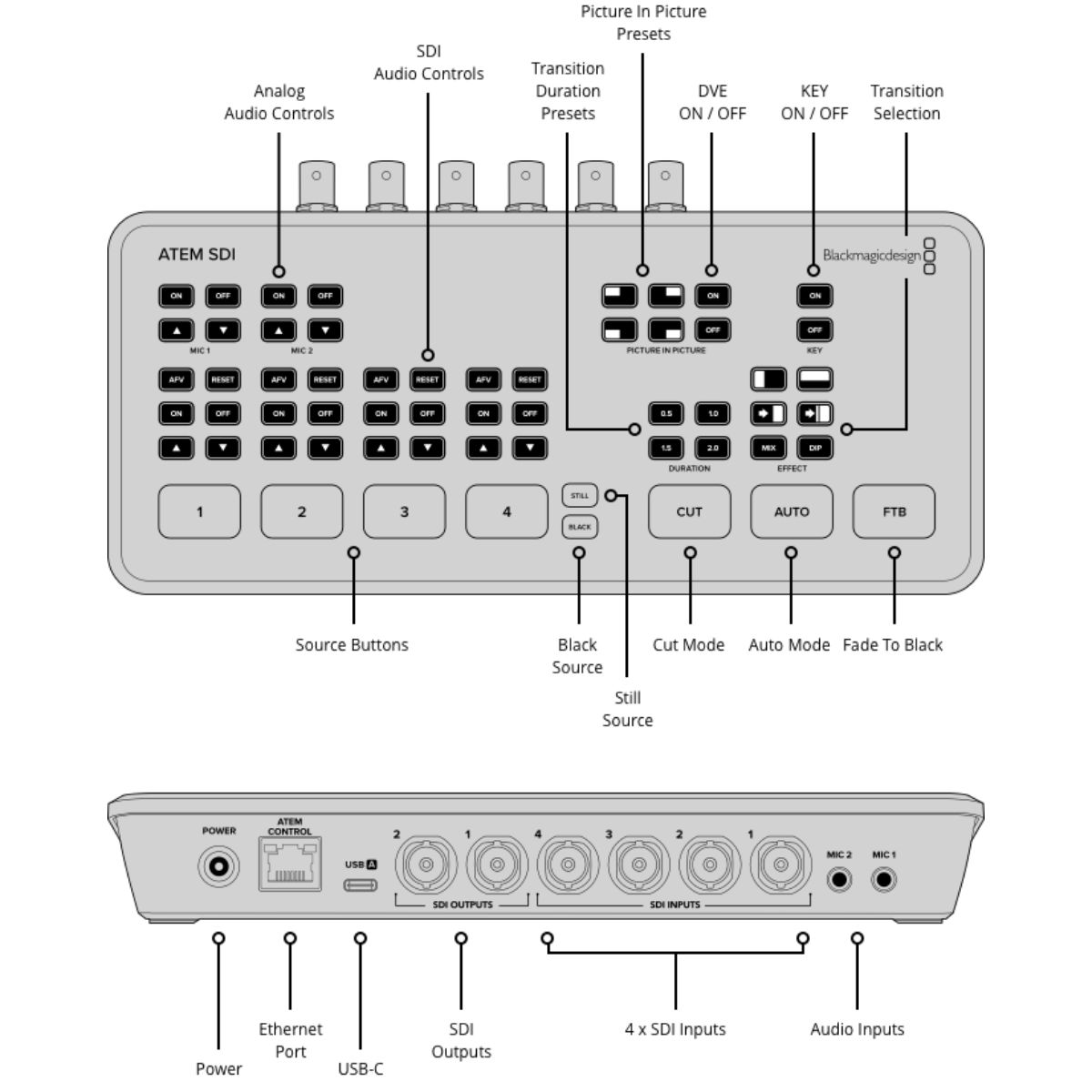

Connections
|
Total Video Inputs |
4 |
|
Total Outputs |
3 |
|
Total Aux Outputs |
2 |
|
Total Audio Inputs |
2 x 3.5 mm stereo mini jack. |
|
Total Audio Outputs |
None, embedded audio only. |
|
Timecode Connection |
None |
|
SDI Video Inputs |
4 x 3G-SDI, 10-bit HD switchable. 2-channel embedded audio. |
|
Video Input Re-Sync |
On all 4 SDI inputs. |
|
Frame Rate and Format Converters |
On all 4 SDI inputs. |
|
SDI Program Outputs |
2 |
