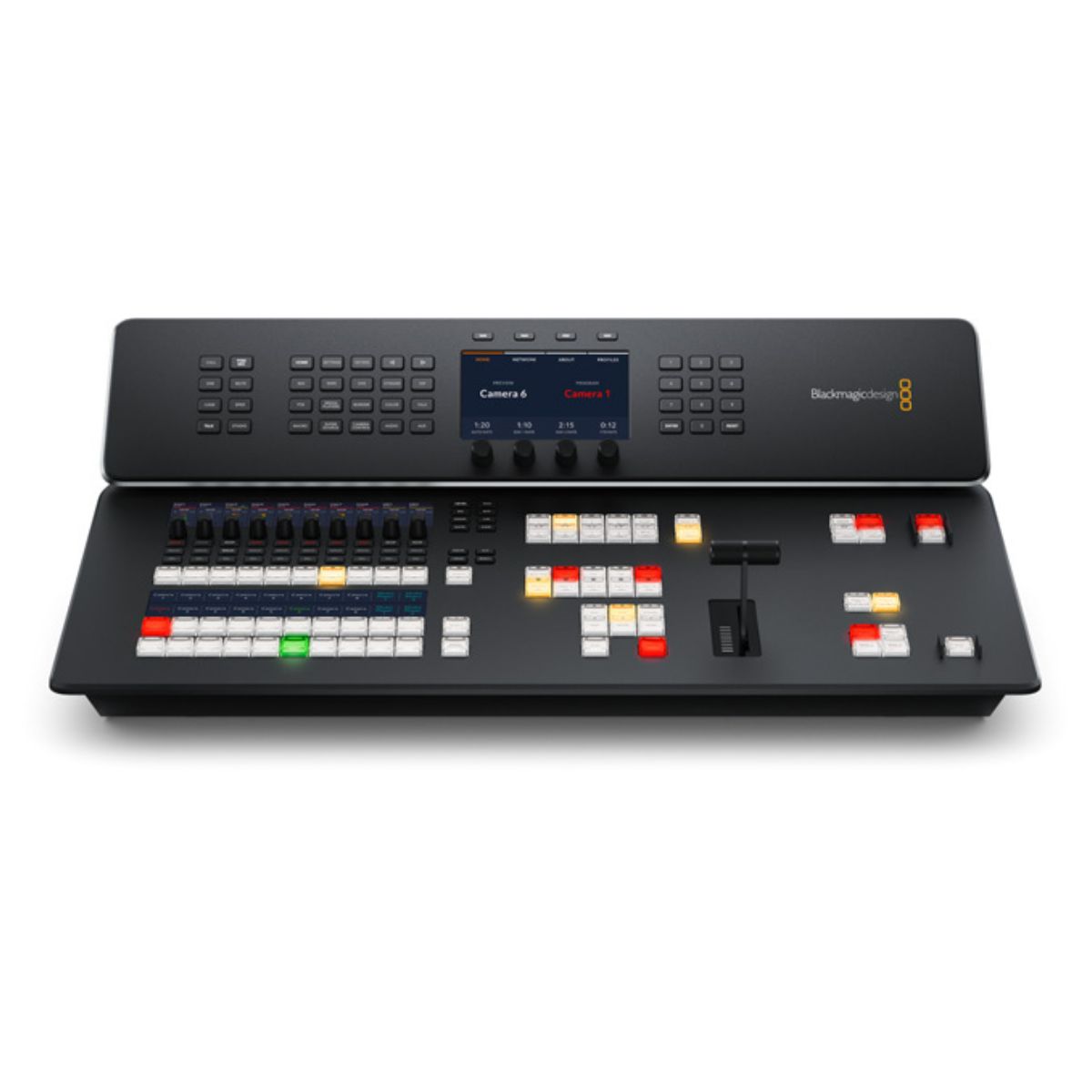

ATEM Television Studio HD8 ISO includes all the features of ATEM Television Studio HD8 plus adds ISO recording of all 8 inputs to separate video files. Also supports up to 8 remote cameras via local Ethernet or globally via the internet. Remote cameras even support tally and camera control!
Product Specifics
|
Number of Mix Effects Rows |
1 |
|
Direct Cross Points |
10 |
|
Shifted Cross Points |
20 |
|
Crosspoint Button Type |
Tri-Color LED |
|
Crosspoint Label |
6 rows 24-character LCD |
|
Preview Transition |
1 |
|
Source Select Bus |
1 |
|
Dedicated Macro Buttons |
10 plus shift 10 |
|
Transition Type Buttons |
5 |
|
Transition Rate |
Set via system LCD menu display |
|
Key Buttons |
8 |
|
AUX Buttons |
12 |
|
Fader Bar |
1 |
|
Record Buttons |
2 |
|
Stream Buttons |
2 |
|
DSK Transition Selectors |
6 |
|
Fade to Black Buttons |
1 |
|
System LCD Displays |
1 |
|
Numeric Keypad |
1 |
|
3 Axis Joystick |
1 |
|
Upstream Keyers |
4 |
|
Downstream Keyers |
2 |
Media Player
|
Media Players |
2 |
|
Channels |
Fill and key for each media player. |
|
Media Pool Still Image Capacity |
20 |
|
Media Pool Still Image Format |
PNG, TGA, BMP, GIF, JPEG and TIFF. |
|
Media Pool Clip Capacity |
2 x up to 1080p60. |
|
Media Player Clip Length in 720 HD |
400 frames. |
|
Media Player Clip Length in 1080 HD |
200 frames. |
|
Media Pool Video File Format |
TGA sequence. |
|
Media Pool Audio File Format |
WAV, MP3 and AIFF. |
Media Player
|
Media Players |
2 |
|
Channels |
Fill and key for each media player. |
|
Media Pool Still Image Capacity |
20 |
|
Media Pool Still Image Format |
PNG, TGA, BMP, GIF, JPEG and TIFF. |
|
Media Pool Clip Capacity |
2 x up to 1080p60. |
|
Media Player Clip Length in 720 HD |
400 frames. |
|
Media Player Clip Length in 1080 HD |
200 frames. |
|
Media Pool Video File Format |
TGA sequence. |
|
Media Pool Audio File Format |
WAV, MP3 and AIFF. |

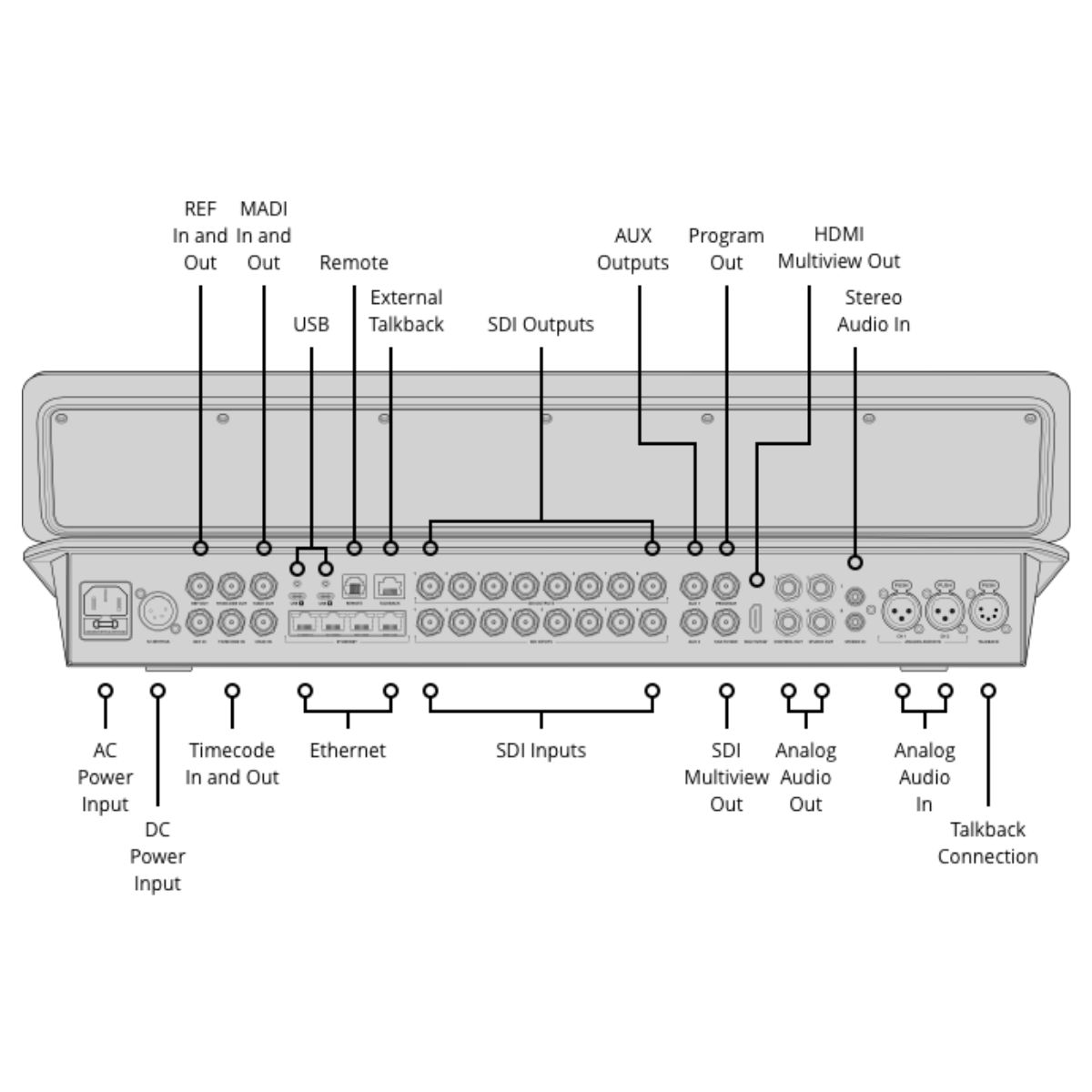

Connections
|
SDI Video Inputs |
8 |
|
SDI Video Outputs |
12 |
|
SDI Rates |
1.5G, 3G |
|
HDMI Video Outputs |
1 |
|
Total Audio Inputs |
2 x XLR balanced analog audio, 1 x BNC 32 Ch MADI digital audio, 2 x RCA stereo analog audio, 1 x 5-pin XLR Talkback. |
|
Total Audio Outputs |
4 x 1/4 inch Jack analog audio, 1 x BNC 64 Ch MADI digital audio, up to 50 active, 1 x 5-pin XLR Talkback. |
|
SDI Audio Inputs |
4 Ch embedded audio on all SDI inputs. |
|
SDI Audio Outputs |
2 Ch embedded audio on all SDI outputs. |
|
Timecode Connections |
1 x BNC In, 1 x BNC Out. |
|
Reference Input |
1 x BNC In, 1 x BNC Out. Tri-Sync or Black Burst. |
|
Video Input Re-Sync |
On all 8 inputs. |
|
Frame Rate and Format Converters |
On all 8 inputs. |
|
SDI Aux Outputs |
2 |
|
SDI Program Outputs |
1 |
|
Webcam Output |
2 x USB-C supporting 720p or 1080p at PGM frame rate. |
|
Total Multi Views |
1 x 3G-SDI 1 x HDMI |
|
Remote |
RJ12 supports RS-422 |
|
Control Panel Connection |
Ethernet. Direct connection between panel and chassis, or via network. |
|
Internal Timecode Generator |
Yes |
|
Talkback |
RJ45 for 3rd party talkback systems. |
|
Tally Output |
Added via Ethernet connection to Blackmagic Design GPI and Tally Interface product. (Not included). |
|
Ethernet |
4 x RJ45 with internet network switch. Supports 10/100/1000 BASE-T. |
|
Computer Interface |
2 x USB-C supports USB 3.0 for external drive recording, webcam output, software control, software updates, and switcher connection. |
