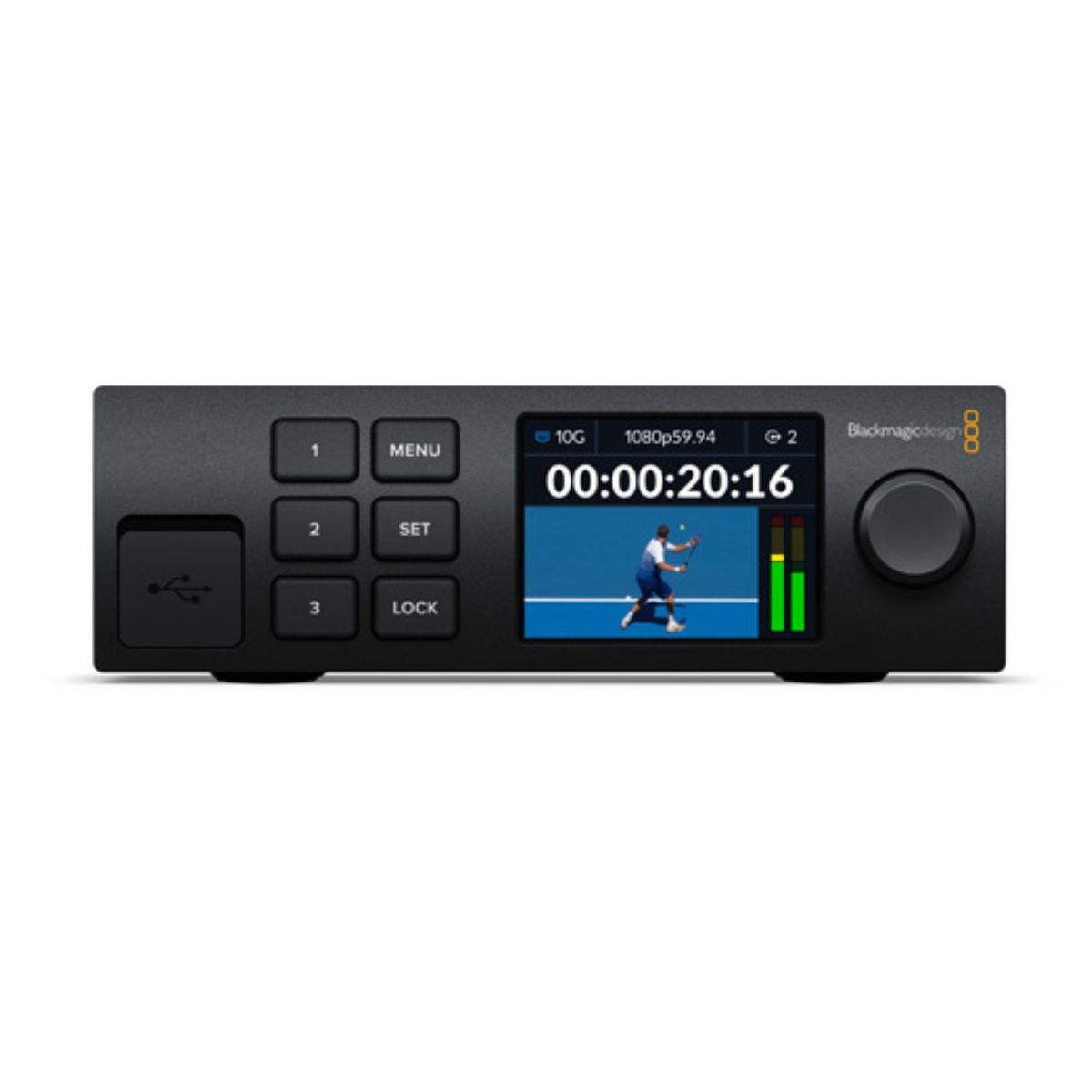

The new Blackmagic 2110 IP Converter 3x3G lets you convert 3 separate 3G-SDI devices to 2110 IP video systems. That’s because its 10G Ethernet connection can handle 3 separate video channels at the same time. Plus each channel has independent SDI inputs and SDI outputs, so you could even connect to 6 completely different SDI devices! All 3G-SDI inputs feature loop outputs so you can install the converter in line within existing SDI systems. There’s also a reference output, timed to the 2110 PTP clock! Blackmagic 2110 IP Converter 3x3G includes an elegant front panel with a color LCD for monitoring, menus, and diagnostics. You can even route IP inputs from the panel!
Video Standards
|
HD Video Standards |
720p50, 720p59.94, 720p60 1080i50, 1080i59.94, 1080i60 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60 |
|
SDI Compliance |
SMPTE 292M, SMPTE 296M, SMPTE 424M, SMPTE 425M, ITU-R BT.656, ITU-R BT.601. |
|
SDI Metadata Support |
RP 188/SMPTE 12M-2 and closed captioning. |
|
Audio Sampling |
Television standard sample rate of 48 kHz and 24-bit. |
|
Color Precision |
8, 10-bit RGB 4:4:4 in all modes up to 1080p30 and 8, 10-bit YUV 4:2:2 in all modes. |
|
Color Space |
REC 709 |
IP Video Compliance
|
SMPTE 2110-20 (Uncompressed Video) |
IGMP v3 |
|
SMPTE 2110-21 (Traffic Shaping) |
Sender: Narrow Receiver: Narrow, Wide Synchronous, Asynchronous |
|
SMPTE 2110-30 (PCM) |
Audio Conformance level: Level C |
|
SMPTE 2110-40 (Ancillary Data) |
Full access to entire SMPTE ancillary data stream. Includes RP 188/SMPTE 12M-2, closed captioning, and HDR static metadata. |
|
Precision Time Protocol |
IEEE 1588-2008 (PTP v2) ST 2059-1 ST 2059-2 |
|
NMOS IS-04 Discovery and Registration |
v1.3.2 Peer-to-peer via mDNS/DNS-SD |
|
NMOS IS-05 Connection Management |
v1.1.2 |
|
NMOS BCP-002-01 |
Natural Grouping |
|
NMOS BCP-004-01 |
Receiver capabilities |
Control
Built-in Control Panel
6 buttons with spin knob control and 2.2-inch color display for device control and menu settings.
External Control
RJ-45 10Gb/s Ethernet and USB-C

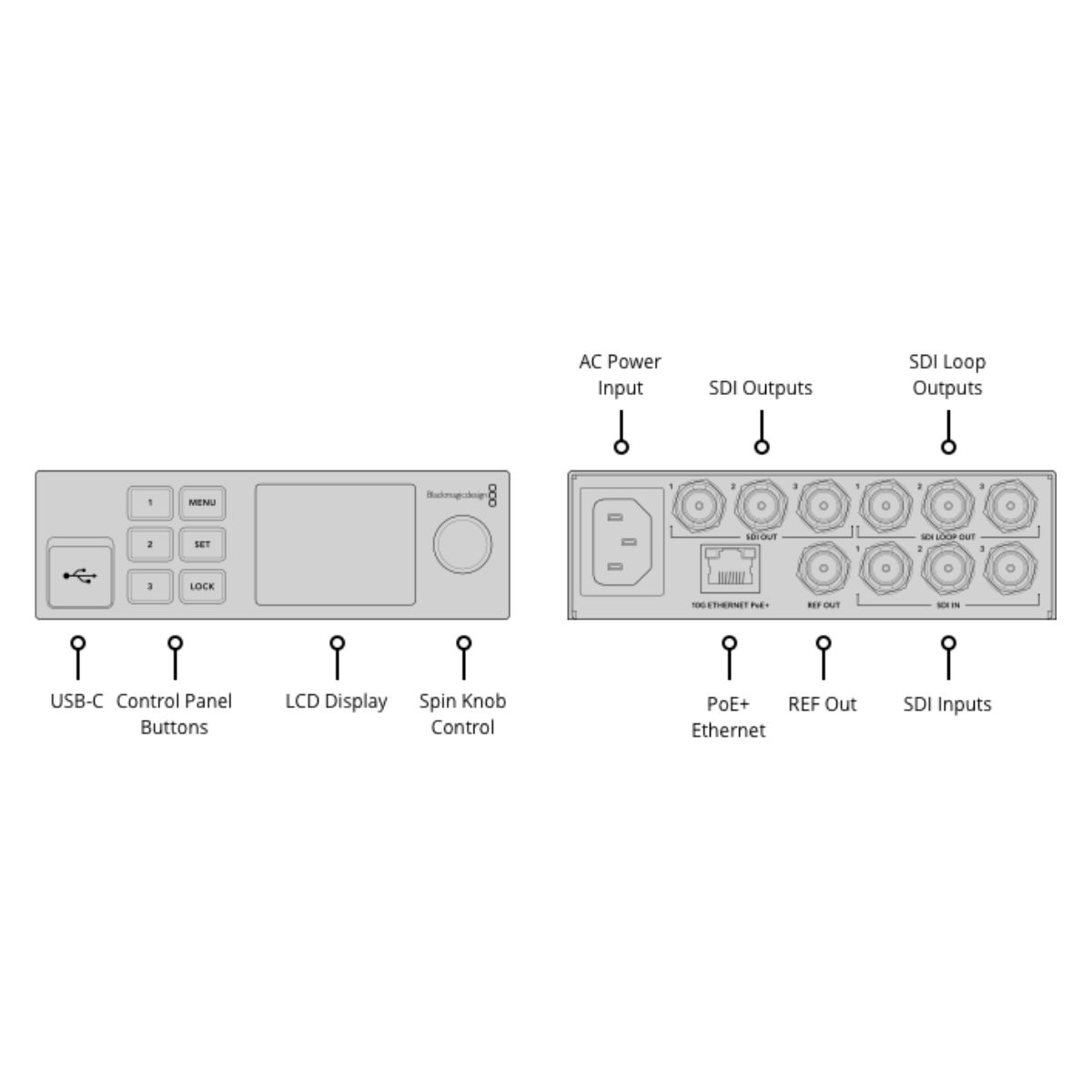

Connections
|
SDI Inputs |
3 |
|
SDI Loop Outputs |
3 |
|
SDI Outputs |
3 |
|
SDI Audio Inputs |
16 channels of embedded audio. |
|
SMPTE 2110 Input / Output |
10G Ethernet supports 3 x video input channels and 3 x video output channels, each up to 1080p60 and up to 16 channels of embedded audio plus ancillary data. |
|
10G Ethernet Port |
1 x 10Gb/s PoE+ RJ‑45 connector supports 10/100/1000/10G BASE-T. |
|
Reference Output |
Tri-Sync or Black Burst. |
|
Computer Interface |
USB-C for updates, configuration, and control. |
