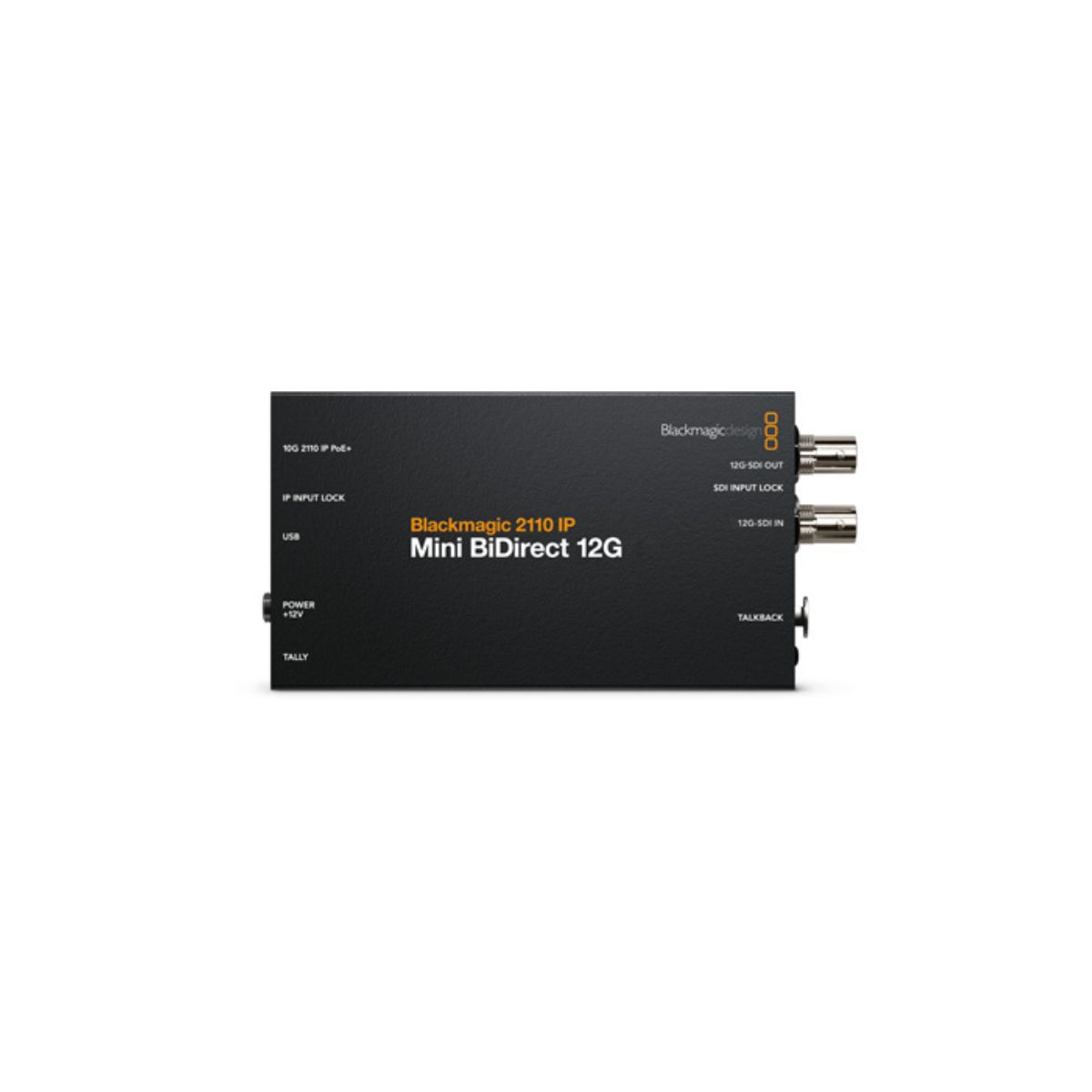

Blackmagic 2110 IP Mini BiDirect 12G lets you convert broadcast cameras with SDI connections to SMPTE-2110 IP video systems. Its 12G-SDI connection supports SD, HD and Ultra HD standards up to 2160p60 and even handles the SDI program return. Blackmagic 2110 IP Mini BiDirect 12G also has a 5-pin XLR talkback headset connection with talkback volume control and a press-to-talk button. It connects and powers from 10G Ethernet or the included DC power supply.
SDI Video Standards
|
HD Video Standards |
720p50, 720p59.94, 720p60 1080i50, 1080i59.94, 1080i60 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p47.95, 1080p48, 1080p50, 1080p59.94, 1080p60 1080PsF25, 1080PsF29.97, 1080PsF30 |
|
Ultra HD Video Standards |
2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30, 2160p47.95, 2160p48, 2160p50, 2160p59.94, 2160p60 |
|
4K Video Standards |
4Kp23.98 DCI, 4Kp24 DCI, 4Kp25 DCI, 4Kp29.97 DCI, 4Kp30 DCI, 4Kp47.95 DCI, 4Kp48 DCI, 4Kp50 DCI, 4Kp59.94 DCI and 4Kp60 DCI. |
|
SDI Compliance |
SMPTE 292M, SMPTE 296M, SMPTE 424M, SMPTE 425M, SMPTE 2081‑1, SMPTE 2081‑10, SMPTE 2082‑1, SMPTE 2082‑10, SMPTE ST2110‑20, SMPTE ST2110‑21, SMPTE ST2110‑30, SMPTE ST2110‑40. |
|
SDI Video Rates |
SDI video connections are switchable between standard definition, 720p, 1080i, 1080p, 2K DCI, Ultra HD and 4K DCI. |
|
SDI Color Precision |
4:2:2 |
|
SDI Color Space |
YUV |

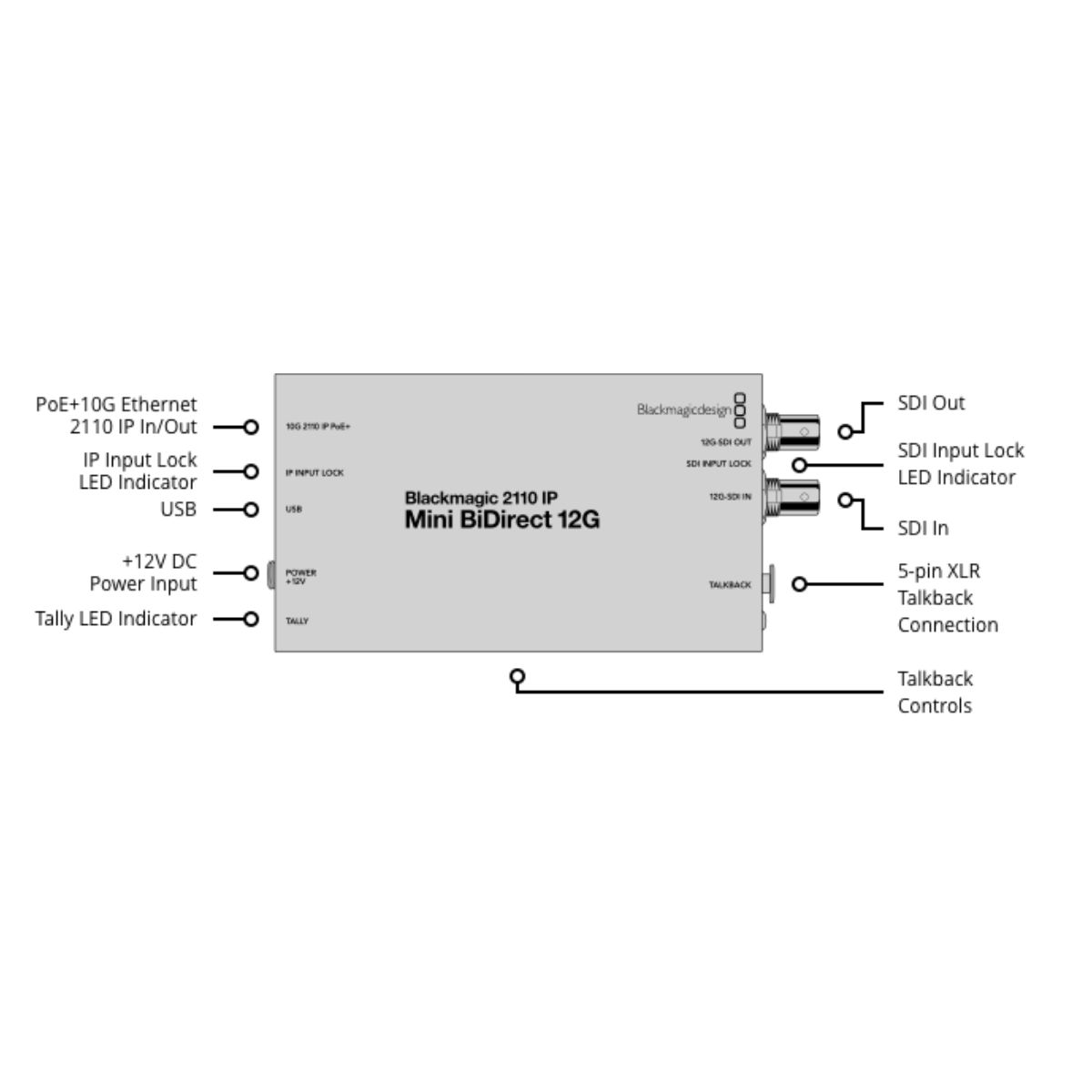

Connections
|
SDI Video Inputs |
1 |
|
SDI Video Outputs |
1 |
|
SDI Rates |
1.5G, 3G, 6G, 12G.
|
|
SMPTE ST-2110 IP Video Inputs/Outputs |
1 x 10G Ethernet |
|
Analog Audio Inputs |
1 x 5-pin XLR Talkback. |
|
Analog Audio Outputs |
1 x 5-pin XLR Talkback. |
|
SDI Audio Inputs |
16 Ch embedded audio on SDI input. |
|
SDI Audio Outputs |
16 Ch embedded audio on SDI output. |
|
SMPTE ST 2110 IP Audio Inputs |
16 Ch embedded audio on ST-2110 IP video via 10G Ethernet. |
|
SMPTE ST 2110 IP Audio Outputs |
16-channel embedded audio on ST-2110 IP video via 10G Ethernet. |
|
Multi-Rate Support |
Auto detection of HD, Ultra HD, and 4K. |
|
Reclocking |
Yes |
|
Ethernet |
1 x 10Gb/s RJ‑45 connector for SMPTE‑2110 IP video in and out. |
|
Computer Interface |
1 x USB‑C for configuration and firmware updates. |
