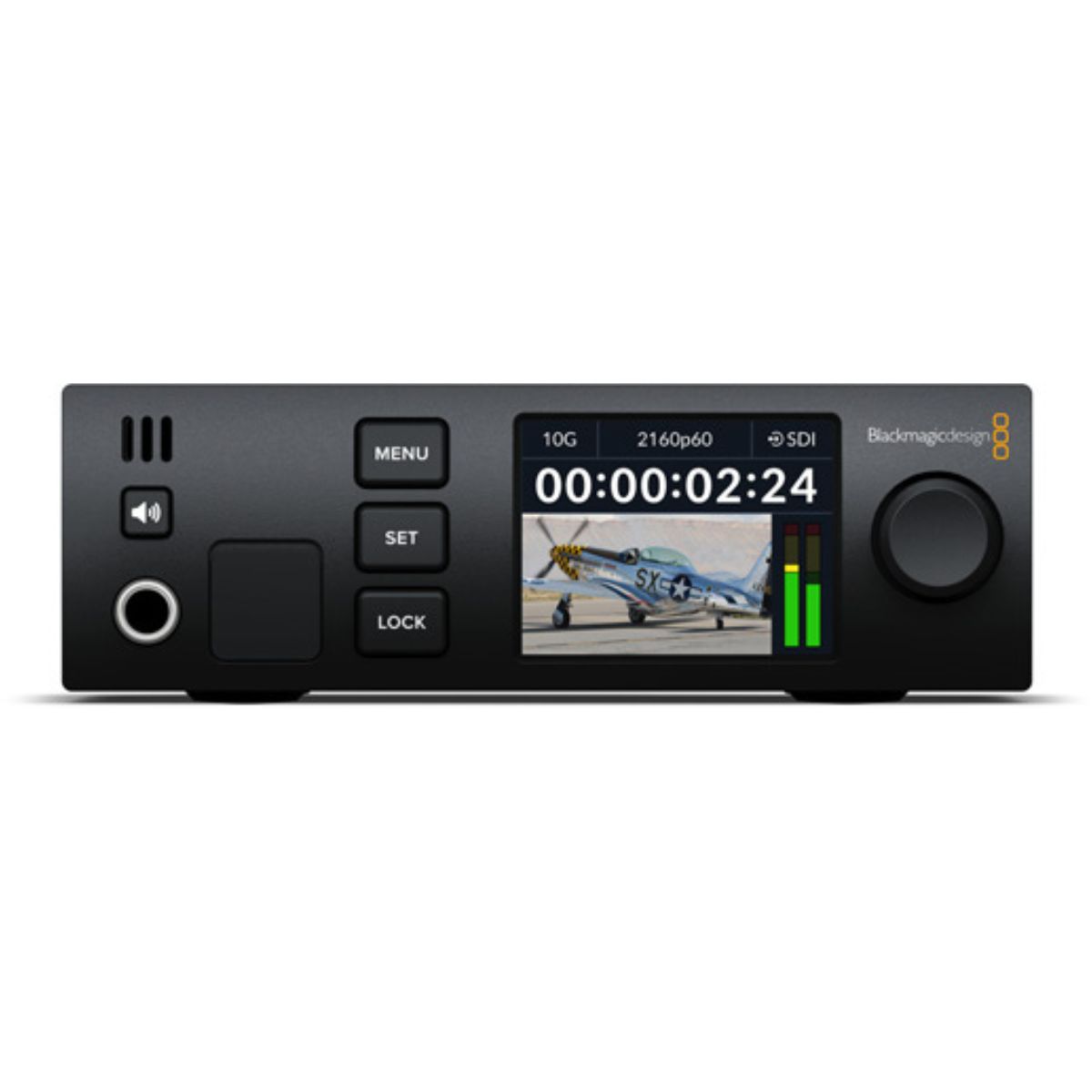

Blackmagic 2110 IP SDI to HDMI 12G converts 12G-SDI or SMPTE-2110 video to HDMI in a rack-mount design. You get the highest quality conversion between all SD, HD, and Ultra HD video standards with 3D LUTs for accurate calibration of HDMI displays. Includes front panel LCD with video, meters and menus, 2-channel XLR monitoring outputs with variable gain and delay, speaker and headphone connector.
Video Standards
|
SD Video Standards |
525i59.94 NTSC, 625i50 PAL |
|
HD Video Standards |
720p50, 720p59.94, 720p60 1080i50, 1080i59.94, 1080i60 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p47.95, 1080p48, 1080p50, 1080p59.94, 1080p60, 1080PsF23.98, 1080PsF24, 1080PsF25, 1080PsF29.97, 1080PsF30 |
|
2K Video Standards |
2Kp23.98 DCI, 2Kp24 DCI, 2Kp25 DCI, 2Kp29.97 DCI, 2Kp30 DCI, 2Kp47.95 DCI, 2Kp48 DCI, 2Kp50 DCI, 2Kp59.94 DCI, 2Kp60 DCI, 2KPsF23.98 DCI, 2KPsF24 DCI, 2KPsF25 DCI, 2KPsF29.97 DCI, 2KPsF30 DCI |
|
Ultra HD Video Standards |
2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30, 2160p47.95, 2160p48, 2160p50, 2160p59.94, 2160p60 |
|
4K Video Standards |
4Kp23.98 DCI, 4Kp24 DCI, 4Kp25 DCI, 4Kp29.97 DCI, 4Kp30 DCI, 4Kp47.95 DCI, 4Kp48 DCI, 4Kp50 DCI, 4Kp59.94 DCI, 4Kp60 DCI |
|
SMPTE Compliance |
SMPTE 259M, SMPTE 274M, SMPTE 292M, SMPTE 296M, SMPTE 424M, SMPTE 425M level A and B, SMPTE 2036‑1, SMPTE 2048‑1, SMPTE 2081‑10, SMPTE 2081‑11, SMPTE 2081‑12, SMPTE 2082‑10, SMPTE 2082‑11, SMPTE 2082‑12 and SMPTE ST2108‑1 |
|
SDI Metadata Support |
RP 188/SMPTE 12M‑2 and closed captioning. |
|
Audio Sampling |
Television standard sample rate of 48 kHz and 24 bit. |
|
Color Precision |
8, 10 RGB 4:4:4 in all modes up to 1080p30 and 8, 10‑bit YUV 4:2:2 in all modes. |
|
Color Space |
Rec. 601, Rec. 709, Rec. 2020 |
|
HDMI HD Video Standards |
720p50, 720p59.94, 720p60 1080i50, 1080i59.94, 1080i60 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p47.95, 1080p48, 1080p50, 1080p59.94, 1080p60 |
|
HDMI Ultra HD Video Standards |
2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30, 2160p47.95, 2160p48, 2160p50, 2160p59.94, 2160p60 |
|
HDMI 4K Video Standards |
4Kp23.98 DCI, 4Kp24 DCI, 4Kp25 DCI, 4Kp29.97 DCI, 4Kp30 DCI, 4Kp47.95 DCI, 4Kp48 DCI, 4Kp50 DCI, 4Kp59.94 DCI and 4Kp60 DCI |
|
HDMI Color Precision |
4:2:2 |
Audio
Local Audio Monitoring
Front panel audio monitor speaker with speaker control button, plus 6.35 mm headphone socket.
Control
|
Built-in Control Panel |
Built-in control panel including 4 buttons, spin knob control and 2.2-inch color display. |
|
External Control |
RJ-45 10Gb/s Ethernet and USB‑C. REST API over Ethernet for external control via HTTP when used with REST client applications. |

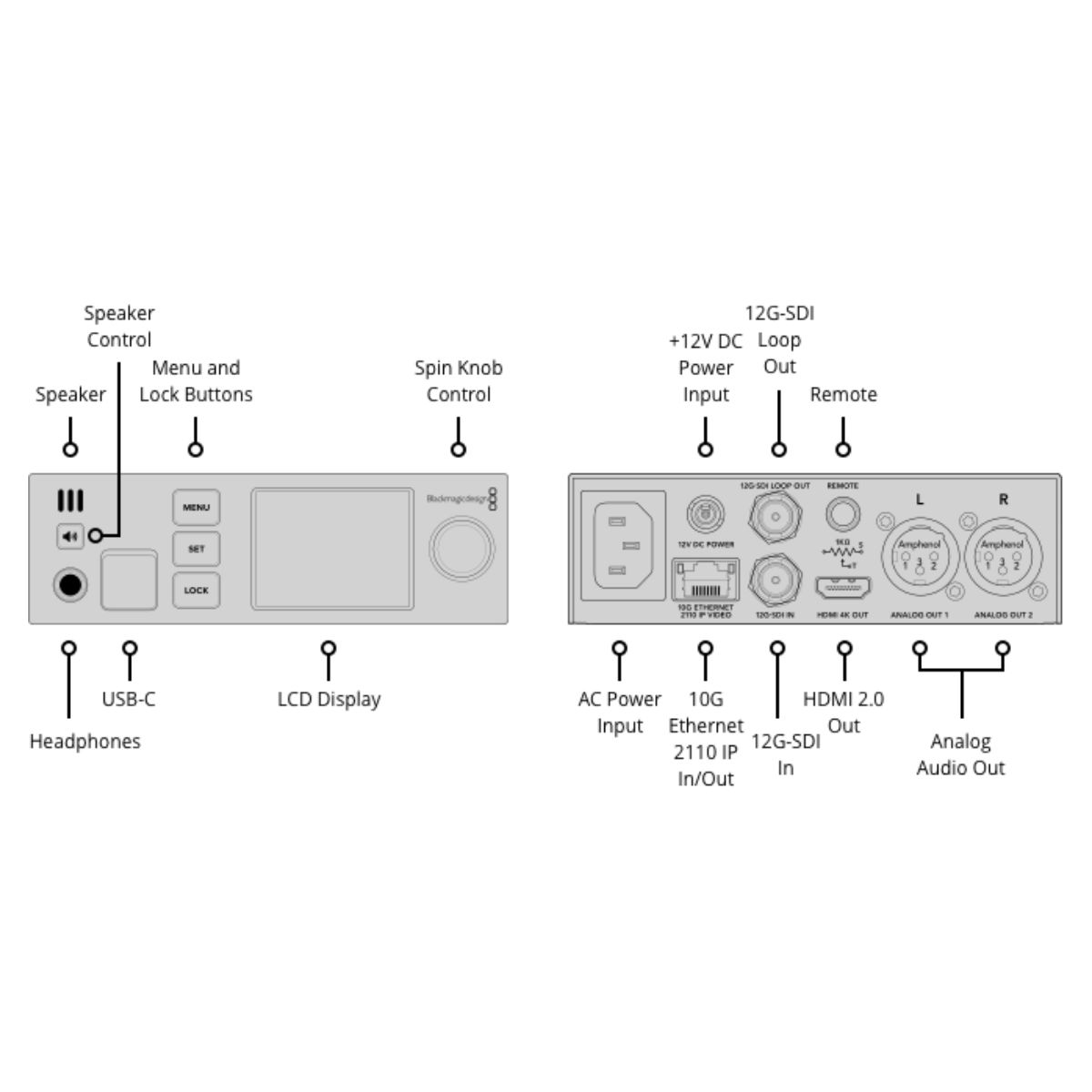

Connections
|
SDI Inputs |
1 |
|
SDI Loop Outputs |
1 |
|
SDI Rates |
SD, 1.5G, 3G, 6G and 12G |
|
HDMI 2.0 Video Outputs |
1 |
|
SMPTE 2110 Input / Output |
1 x 10G Ethernet |
|
SMPTE ST 2110 IP Audio Inputs / Outputs |
16 channels of embedded input and output audio on ST‑2110 IP video via 10G Ethernet. |
|
SDI Audio Inputs |
16 channels of embedded audio. |
|
SDI Audio Outputs |
16 channels of embedded audio. |
|
HDMI Audio Inputs |
8 channels of embedded audio. |
|
HDMI Audio Outputs |
8 channels of embedded audio. |
|
Analog Audio Outputs |
2 channels of professional balanced analog audio with 3‑pin XLR connectors. 1 x 6.35 mm headphone jack. |
|
Webcam Outputs |
1 x USB‑C up to 1080p60 |
|
Ethernet |
Ethernet supports 10/100/1000/10G BASE‑T for SMPTE 2110 IP video in and out, configuration, and software updates. |
|
Computer Interface |
USB‑C for webcam out, updates and configuration |
