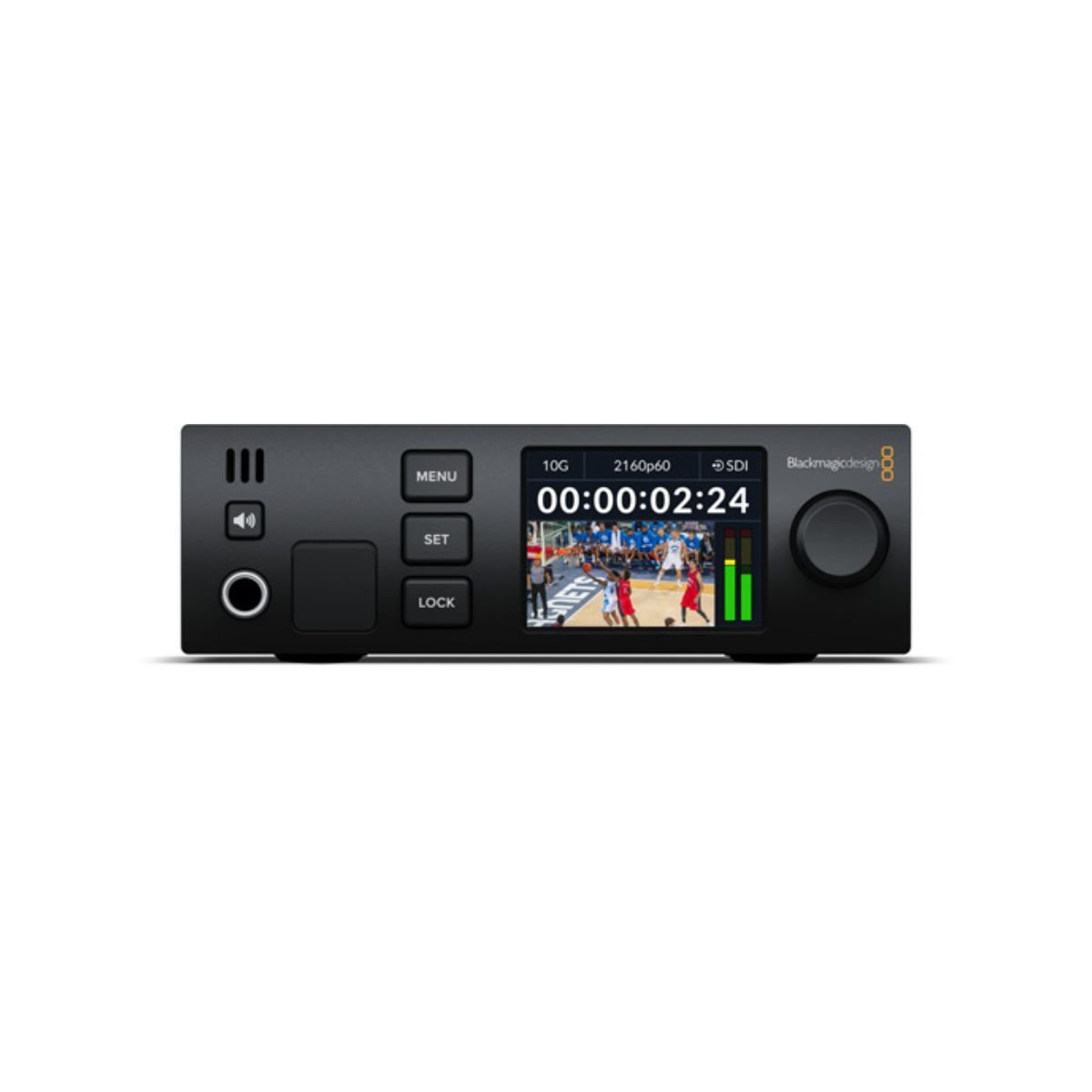

Blackmagic 2110 IP UpDownCross 12G is a professional standards converter that lets you convert between any equipment with SMPTE-2110 IP video, 12G‑SDI, and HDMI video connections. You get the highest quality conversion between all SD, HD, or Ultra HD video standards, plus a reference input for built-in re-sync and redundant power supplies.
Video Standards
|
SD Video Standards |
525i59.94 NTSC, 625i50 PAL |
|
HD Video Standards |
720p50, 720p59.94, 720p60 1080i50, 1080i59.94, 1080i60 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p47.95, 1080p48, 1080p50, 1080p59.94, 1080p60, 1080PsF23.98, 1080PsF24, 1080PsF25, 1080PsF29.97, 1080PsF30 |
|
Ultra HD Video Standards |
2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30, 2160p47.95, 2160p48, 2160p50, 2160p59.94, 2160p60 1080PsF23.98, 1080PsF24, 1080PsF25, 1080PsF29.97, 1080PsF30 |
|
4K Video Standards |
4Kp23.98 DCI, 4Kp24 DCI, 4Kp25 DCI, 4Kp29.97 DCI, 4Kp30 DCI, 4Kp47.95 DCI, 4Kp48 DCI, 4Kp50 DCI, 4Kp59.94 DCI, 4Kp60 DCI |
|
SMPTE Compliance |
SMPTE 259M, SMPTE 274M, SMPTE 292M, SMPTE 296M, SMPTE 424M, SMPTE 425M level A and B, SMPTE 2036‑1, SMPTE 2048‑1, SMPTE 2081‑10, SMPTE 2081‑11, SMPTE 2081‑12, SMPTE 2082‑10, SMPTE 2082‑11, SMPTE 2082‑12 and SMPTE ST2108‑1 |
|
SDI Metadata Support |
RP 188/SMPTE 12M-2 and closed captioning. |
|
Audio Sampling |
Television standard sample rate of 48 kHz and 24-bit. |
|
Color Precision |
8-, 10-bit RGB 4:4:4 in all modes up to 1080p30 and 8-, 10-bit YUV 4:2:2 in all modes. |
|
Color Space |
Rec. 601, Rec. 709, Rec. 2020 |
|
HDMI HD Video Standards |
720p50, 720p59.94, 720p60 |
|
HDMI Ultra HD Video Standards |
2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30, 2160p47.95, 2160p48, 2160p50, 2160p59.94, 2160p60 |
|
HDMI 4K Video Standards |
4Kp23.98 DCI, 4Kp24 DCI, 4Kp25 DCI, 4Kp29.97 DCI, 4Kp30 DCI, 4Kp47.95 DCI, 4Kp48 DCI, 4Kp50 DCI, 4Kp59.94 DCI and 4Kp60 DCI. |
|
HDMI Color Precision |
4:2:2 |
|
HDMI Color Space |
YUV |
Audio
Local Audio Monitoring
Front panel audio monitor speaker with speaker control button, plus 6.35 mm headphone socket.

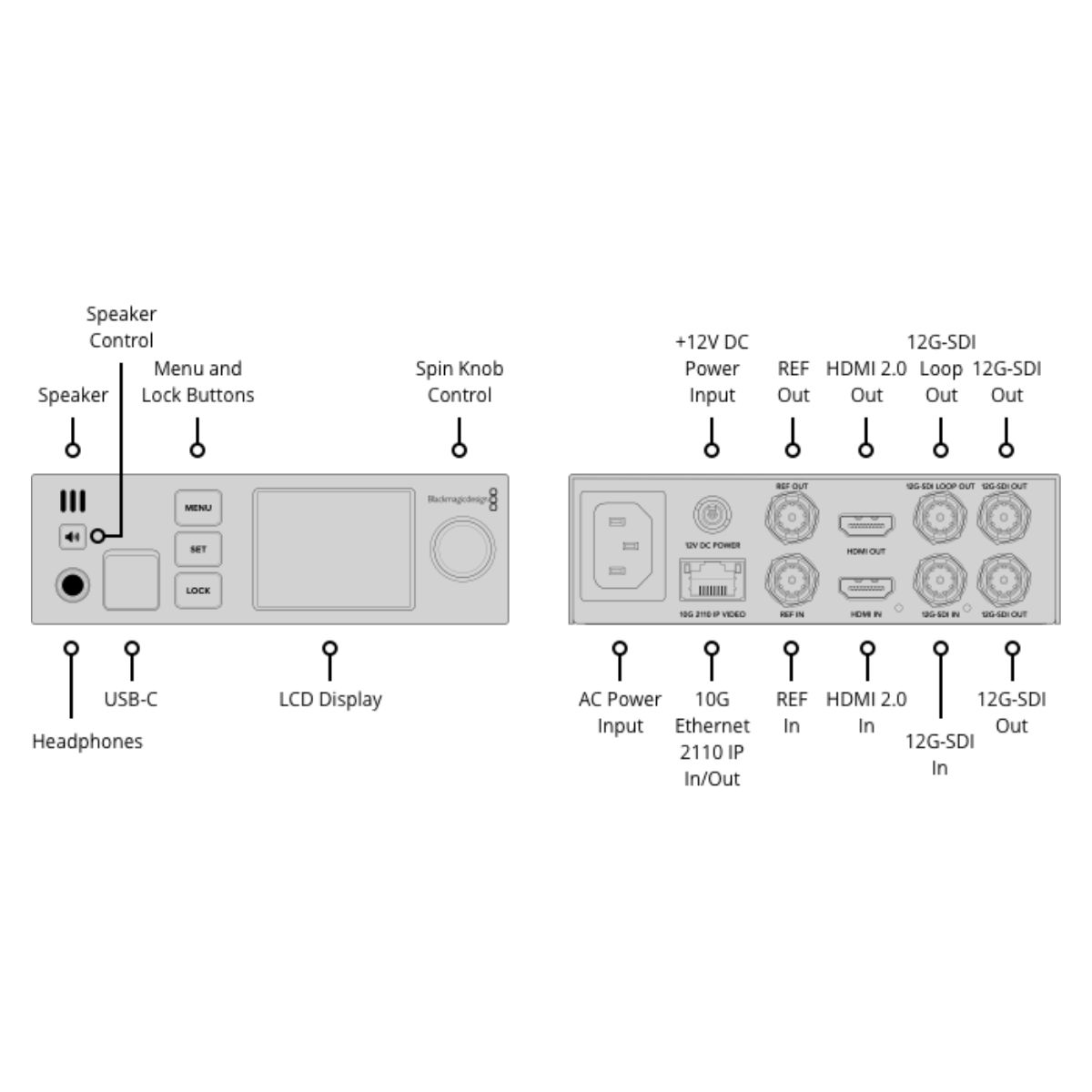

Connections
|
SDI Inputs |
1 |
|
SDI Loop Outputs |
1 |
|
SDI Outputs |
2 |
|
SDI Rates |
SD, 1.5G, 3G, 6G and 12G |
|
HDMI 2.0 Video Inputs |
1 |
|
HDMI 2.0 Video Outputs |
1 |
|
SMPTE 2110 Input / Output |
1 x 10G Ethernet |
|
SMPTE ST 2110 IP Audio Inputs / Outputs |
16 channels of embedded input and output audio on ST‑2110 IP video via 10G Ethernet. |
|
SDI Audio Inputs |
16 channels of embedded audio. |
|
SDI Audio Outputs |
16 channels of embedded audio. |
|
HDMI Audio Inputs |
8 channels of embedded audio. |
|
HDMI Audio Outputs |
8 channels of embedded audio. |
|
Analog Audio Outputs |
1 x 6.35 mm headphone jack. |
|
Reference In |
1 |
|
Reference Output |
1 |
|
Ethernet |
Ethernet supports 10/100/1000/10G BASE-T for SMPTE 2110 IP video in and out, configuration, and software updates. |
|
Computer Interface |
USB‑C for configuration and firmware updates. |
