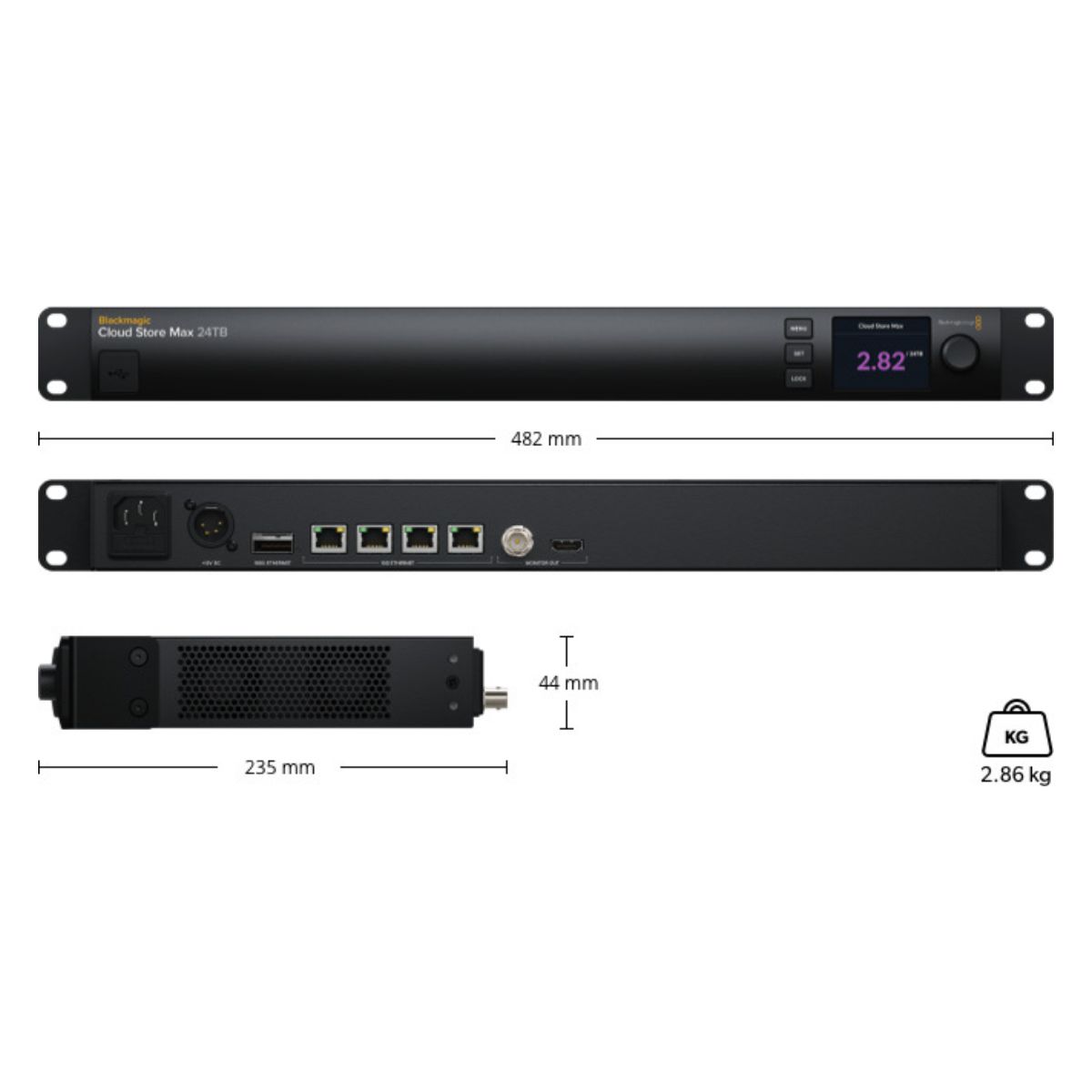

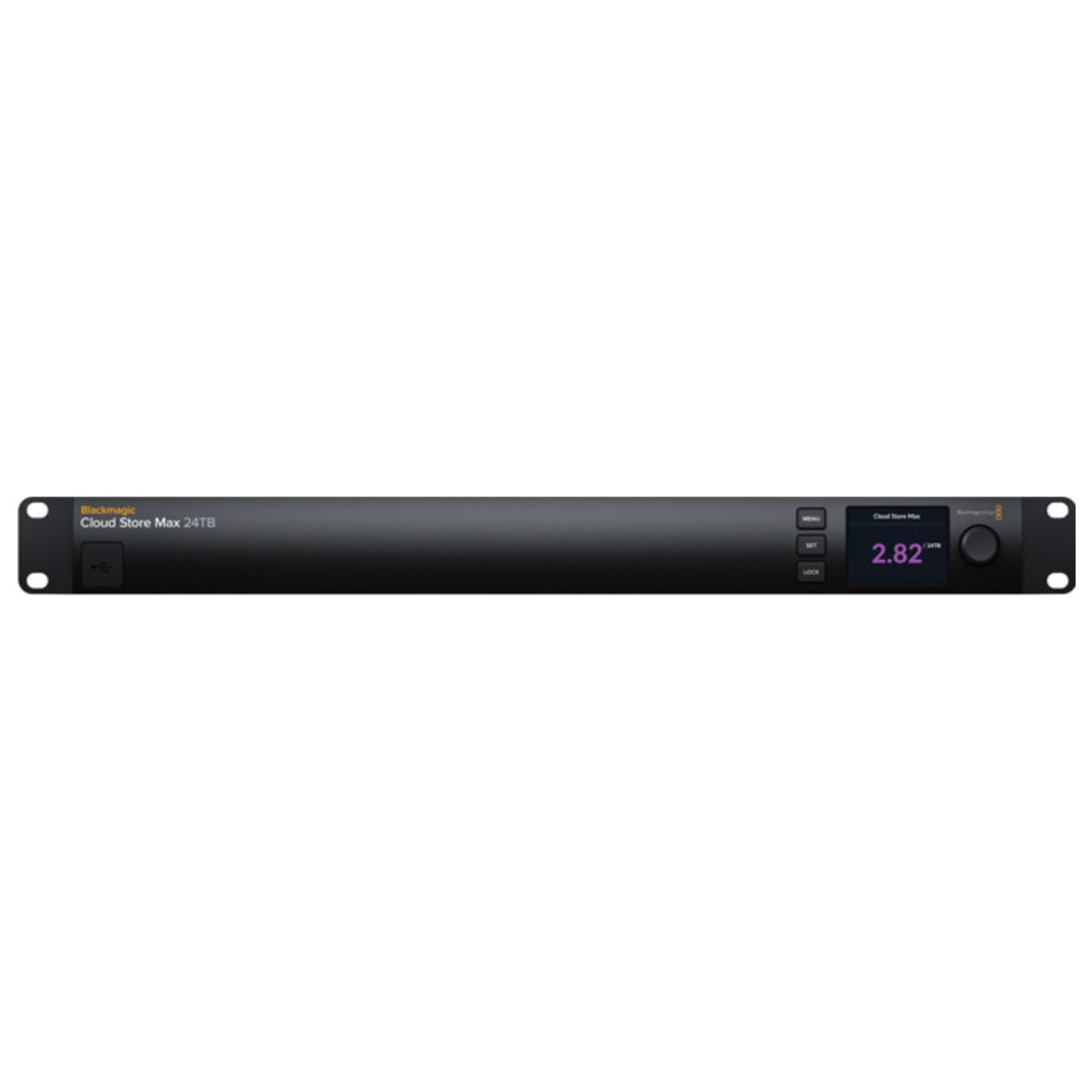

Blackmagic Cloud Store Max 24TB is an extremely high performance flash storage solution in a compact 1RU design. Cloud Store Max features 24TB capacity, 12-card RAID 0 flash memory core, 4 x 10G Ethernet, 100G Ethernet, QSFP connection for high-speed copper cables or longer optical fiber cables, USB-C, and Blackmagic Cloud sync for distributing files globally. It’s fast, even with lots of simultaneous users all accessing files at the same time!

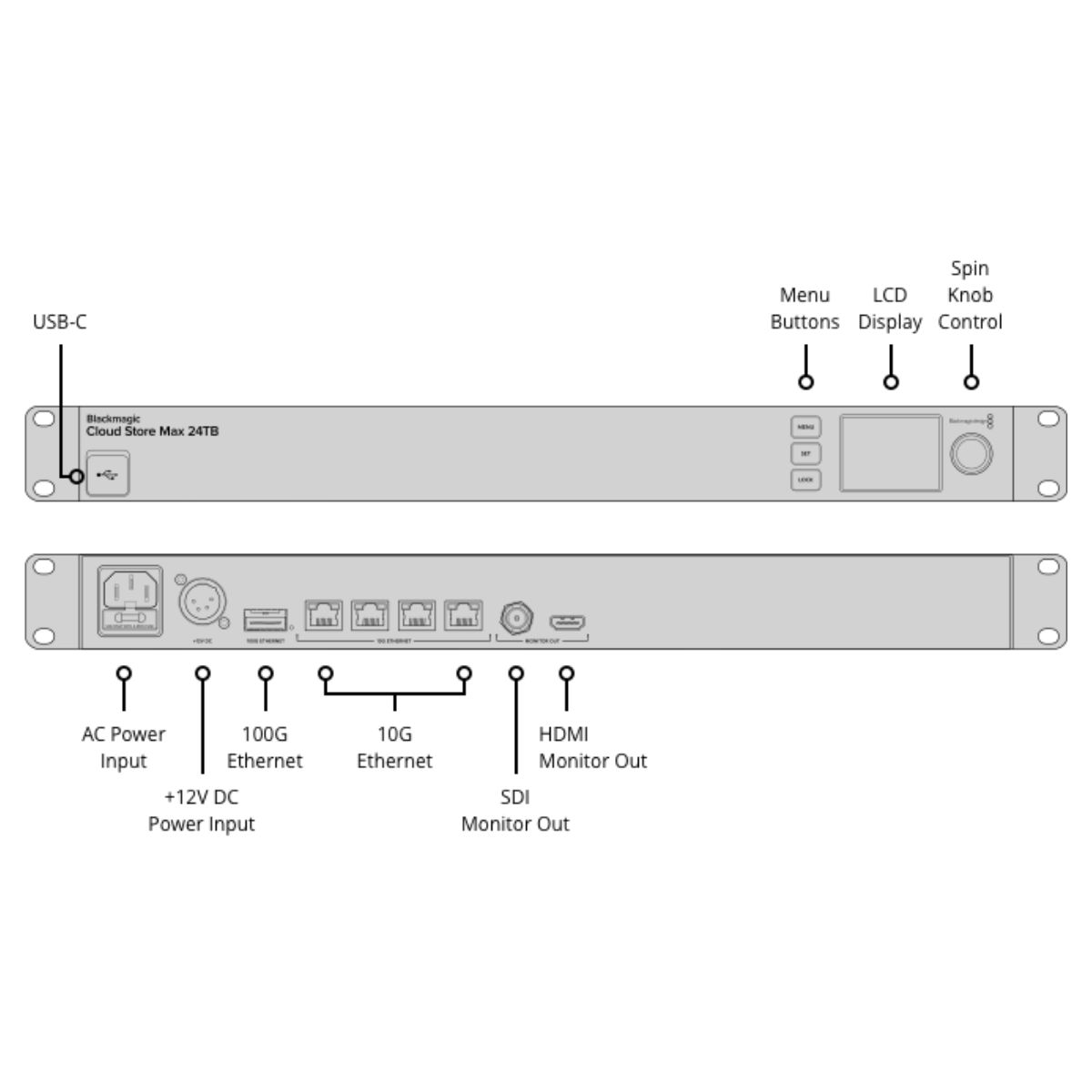

Connections
|
10G Ethernet Ports |
4 x RJ45 Ethernet 100/1000/10G BASE-T |
|
100G Ethernet Ports |
1 x QSFP28 Ethernet 100G BASE-T |
|
USB-C Port |
1 x USB 3.0 (up to 5Gb/s). Supports Ethernet Over USB |
|
SDI Monitor Outputs |
1 |
|
HDMI Monitor Outputs |
1 |
Displays
|
SDI Monitor Out Standards |
1080p50, 1080p59.94, 1080p60 |
|
HDMI Monitor Out Standards |
1080p50, 1080p59.94, 1080p60 |
|
Monitor Out Displays |
Device Name, storage capacity and use, Cloud Sync status, User Activity, Hardware Status, storage map, network data rate graph. |
|
Front Panel Display |
Built with a 2.2-inch LCD for settings, storage name, capacity, and use. |
