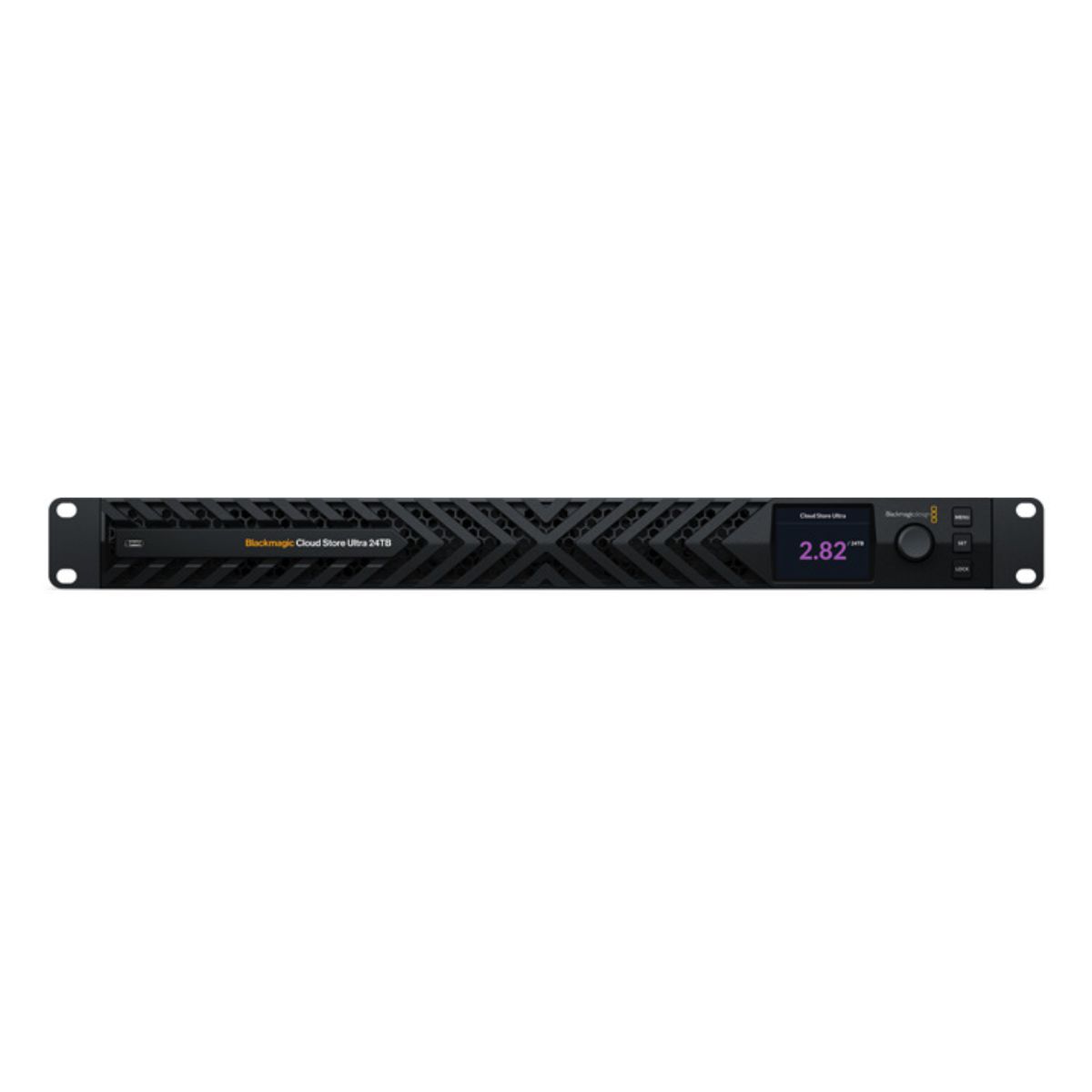

Blackmagic Cloud Store Ultra 24TB is an extremely high-performance network storage solution in a compact 1RU design with server-style front-to-rear cooling. Cloud Store Ultra features 24TB capacity, 12-card RAID 0 flash memory core, 2 x 100G Ethernet ports, RAID 5 support for data protection, two redundant power supplies, USB-C, and Blackmagic Cloud Sync for distributing files globally. It’s fast, even with lots of simultaneous users all accessing files at the same time.

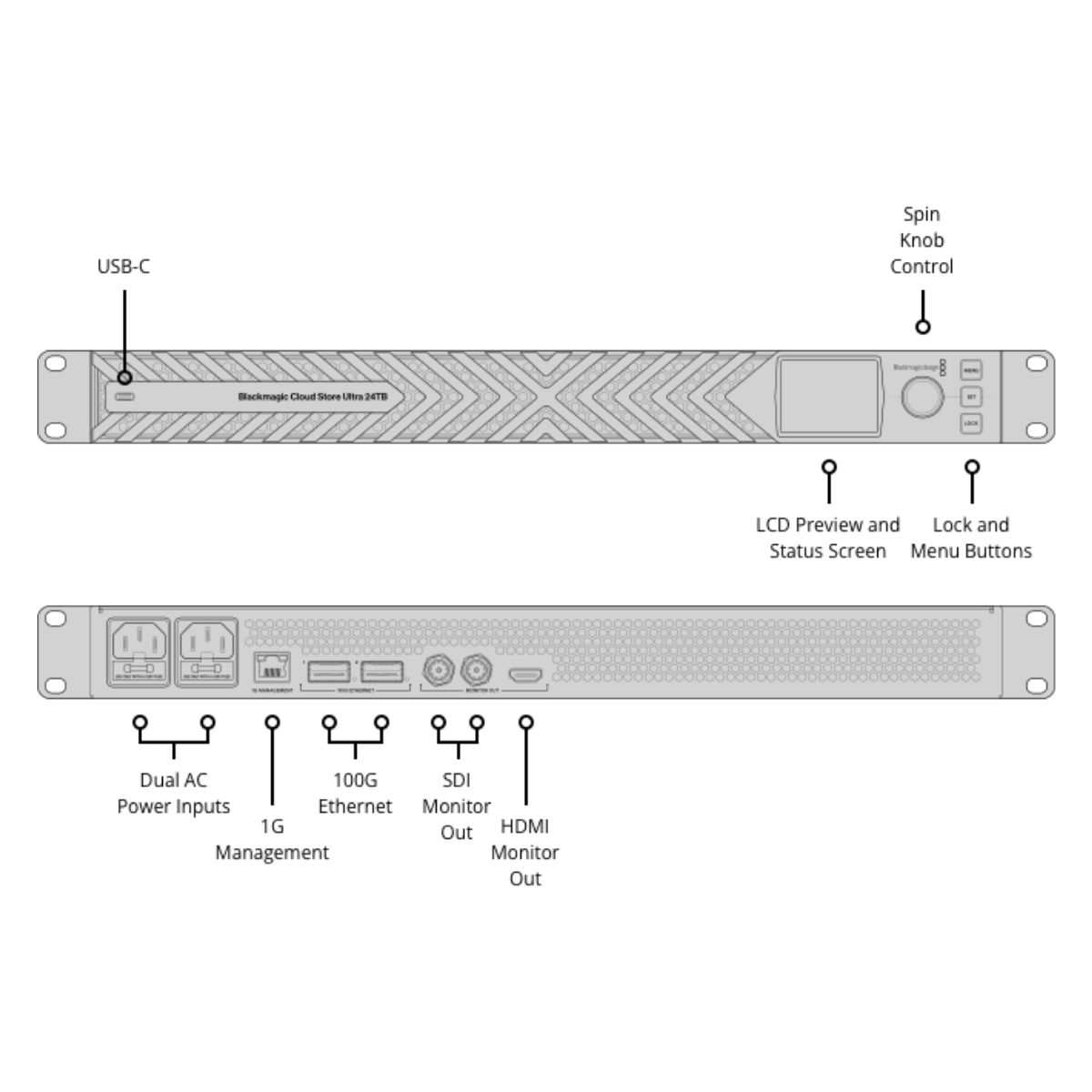

Connections
|
100G Ethernet Networks |
2 x 100G QSFP28 connections. Each 100G port can be assigned an independent IP address and subnet mask for up to 200G bandwidth and load balancing when used with a managed switch. |
|
1G Management |
1 x RJ45 Ethernet. Supports 10/100/1000 BASE-T. For Cloud Store Setup utility and software updates. |
|
SDI Monitor Outputs |
2 |
|
Computer Interface |
1 x USB-C for Cloud Store Setup utility and software updates. |
Displays
|
Front Panel Display |
Built with a 2.2-inch LCD for settings, plus storage name, capacity, and use. |
|
Monitor Out Displays |
Device Name, storage capacity and use, Cloud Sync status, User Activity, Hardware Status, storage map, network data rate graph. |
|
SDI Monitor Out Standards |
1080p50, 1080p59.94, 1080p60 |
|
HDMI Monitor Out Standards |
1080p50, 1080p59.94, 1080p60 |
