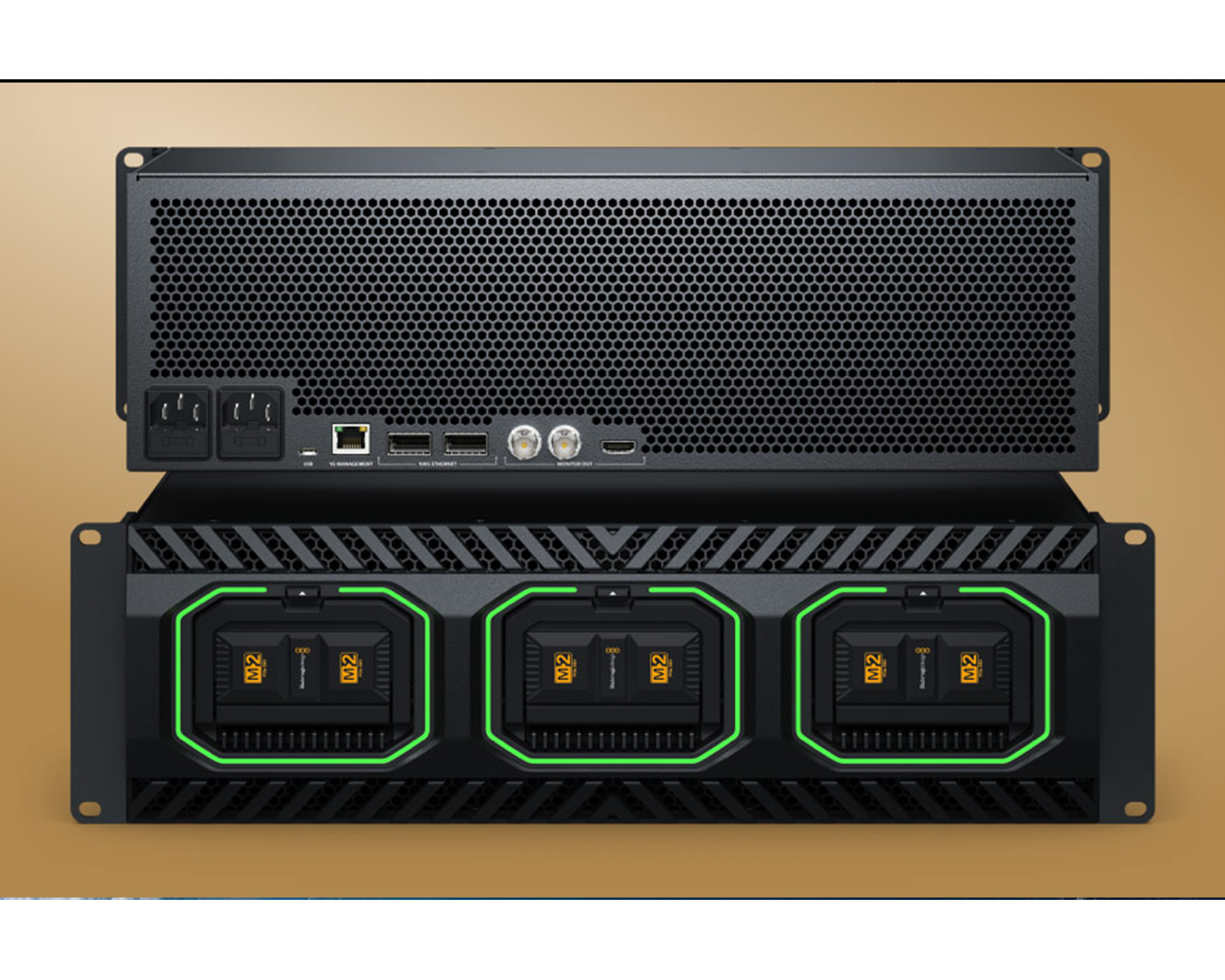

Blackmagic Media Dock Ultra
More powerful model holds 3 Blackmagic Media Modules in a front-to-back ventilated 3RU design. Includes SDI and HDMI monitoring, illuminated LED rings, and 2 x 100G Ethernet on separate networks
|

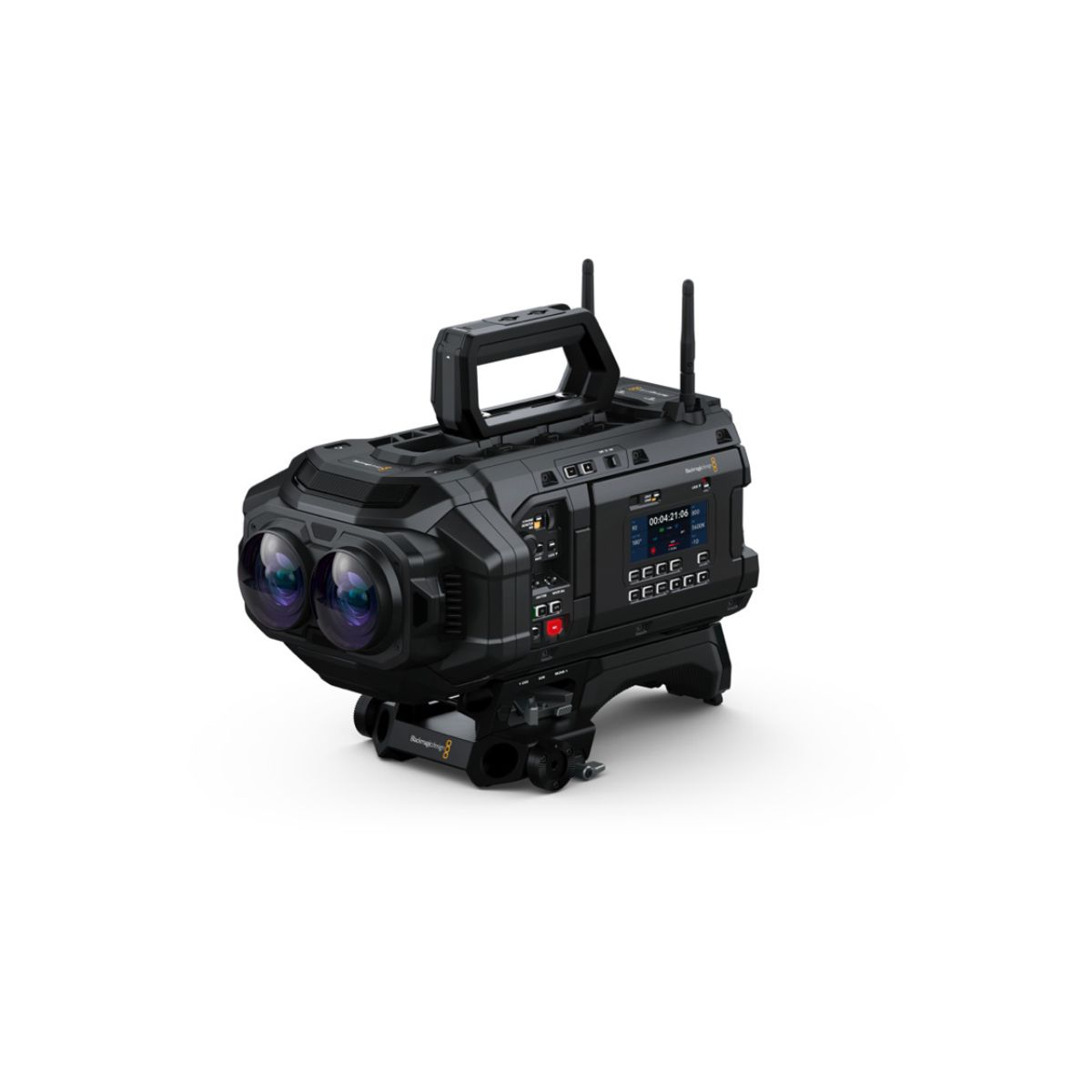

Sensors |
2 x 8K sensors. Left eye and right eye. |
|
Effective Sensor Size |
23.66 mm x 20.88 mm each. |
|
Pixel Pitch |
2.9 microns. |
|
Lens |
Fixed focal length, 180°+ field of view, stereo lens pair. |
|
Dynamic Range |
16 Stops. |
|
Shooting Formats |
8160 x 7200 x 2 (stereo immersive) |
|
Frame Rates |
Project frame rates of 23.98, 24, 25, 29.97, 30, 50,59.94, 60, and 90 fps are supported. |
|
High Speed Frame Rates |
8K stereo immersive up to 90 fps. |
Operating Temperature
0° to 40°C (32° to 104°F)
Storage Temperature
-20° to 45°C (-4° to 113°F)
Relative Humidity
0% to 90% non-condensing
