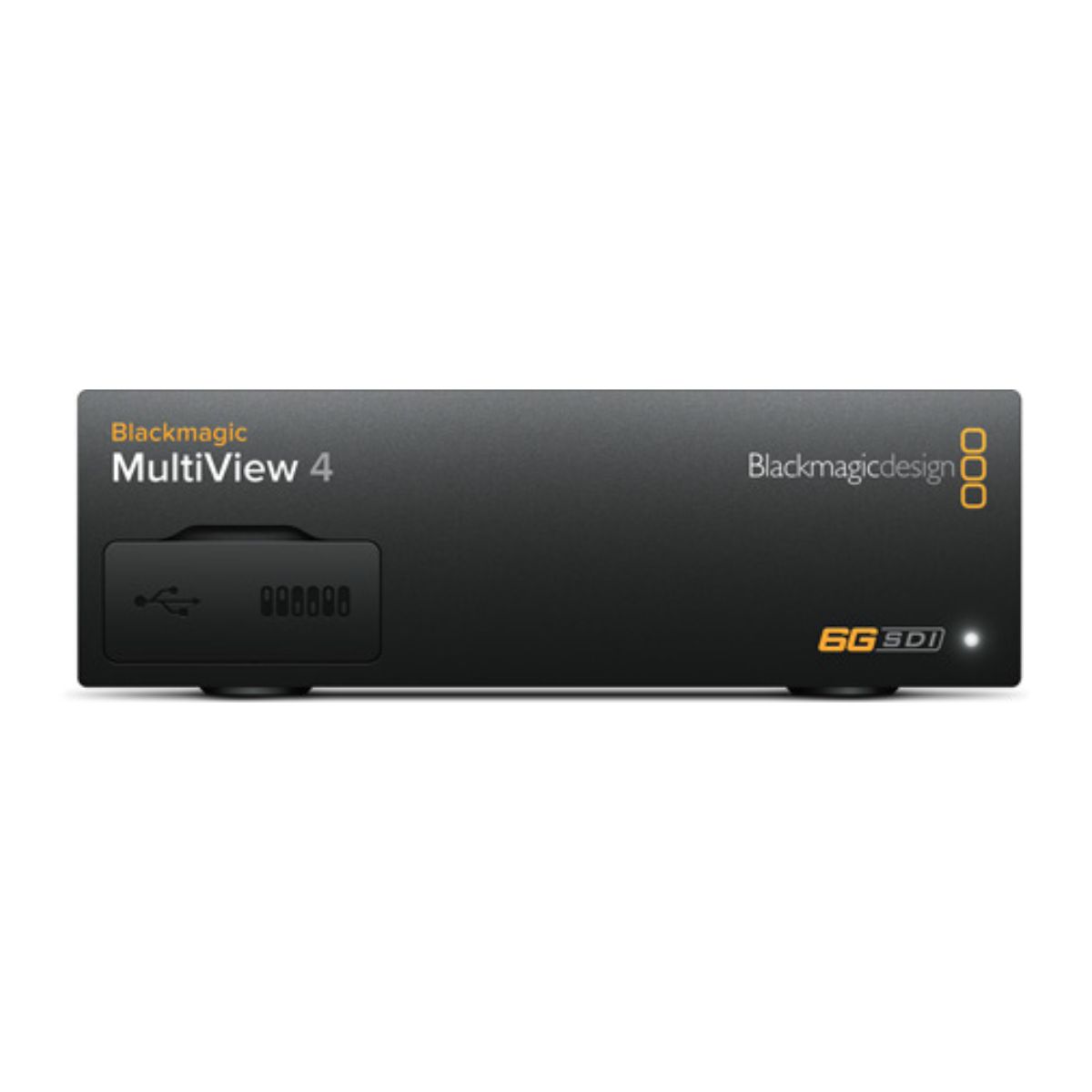

Blackmagic MultiView 4 is a multi-viewer that lets you monitor 4 completely independent SDI video sources on a single display! Featuring 4 6G-SDI inputs with full re-synchronization, MultiView 4 lets you monitor any combination of SD, HD, and Ultra HD video formats and frame rates all at the same time. Blackmagic MultiView 4 can output to both 1080 HD and 2160p Ultra HD displays, so you can connect it to either regular HD or Ultra HD televisions. If you connect an Ultra HD television or monitor, you can take advantage of the extra resolution of Ultra HD and see full resolution 1920 x 1080 HD in each view for incredible sharpness! You can even turn on audio meter overlays, custom labels, and more in each view!

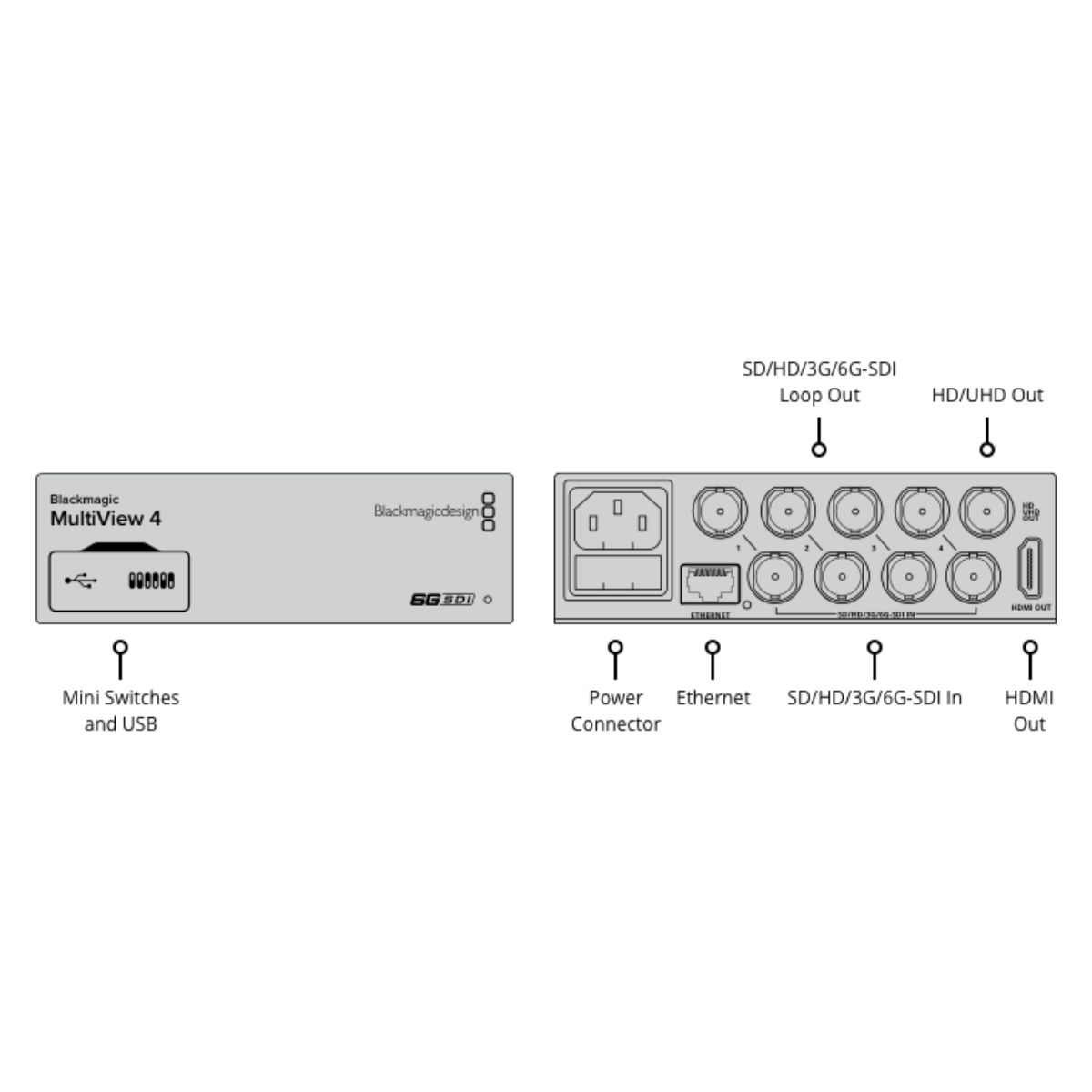

Connections
|
SDI Video Inputs |
4 x 10-bit SD-SDI, HD-SDI, and 6G‑SDI. |
|
SDI Video Outputs |
4 loop, 1 HD/Ultra HD. |
|
SDI Rates |
270Mb, 1.5G, 3G, 6G. |
|
SDI Video Multi View Outputs |
1 x 10-bit HD-SDI and 10-bit 6G‑SDI |
|
HDMI Video Multi View Outputs |
1 x HDMI type A connector. Output supports the EDID of the monitor. |
|
SDI Reclocking |
On all SDI outputs, auto-switching between standard definition, high definition, or 6G‑SDI video. |
Standards
|
SD Video Standards |
525i59.94 NTSC, 625i50 PAL |
|
HD Video Standards |
720p50, 720p59.94, 720p60 1080i50, 1080i59.94, 1080i60 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60 1080PsF23.98, 1080PsF24, 1080PsF25, 1080PsF29.97, 1080PsF30 |
|
2K Video Standards |
2Kp23.98 DCI, 2Kp24 DCI, 2Kp25 DCI, 2KPsF23.98 DCI, 2KPsF24 DCI, 2KPsF25 DCI |
|
Ultra HD Video Standards |
2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30 |
|
4K Video Standards |
4Kp24 DCI |
|
SDI and HDMI HD Video Output Standards |
1080i50, 1080i59.94 |
