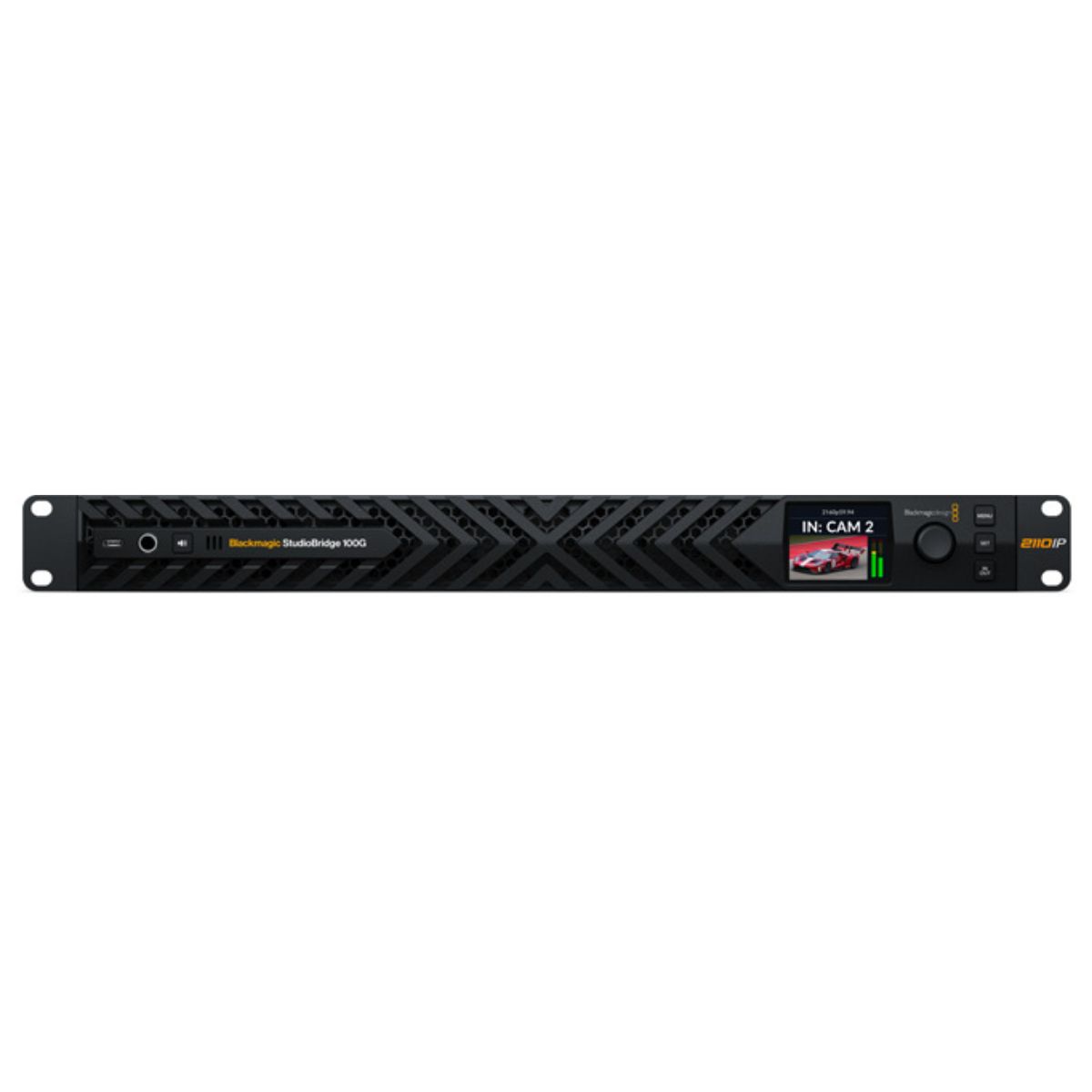

The Blackmagic StudioBridge 100G bridges a single 100G Ethernet SMPTE-2110 connection into a redundant dual 100G Ethernet broadcast system. It also has two 100G Ethernet camera connections that can be combined if total bandwidth doesn't exceed 100 Gb/s! This lets you interface two cameras such as the URSA Cine 12K 100G into a redundant broadcast system. It also includes a separate 10G Ethernet channel for accessories, an NMOS control port, and dual redundant power supplies.
Video Standards
|
HD Video Standards |
720p50, 720p59.94, 720p60 1080i50, 1080i59.94, 1080i60 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60 1080PsF25, 1080PsF29.97, 1080PsF30 |
|
Ultra HD Video Standards |
2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30, 2160p50, 2160p59.94, 2160p60 |
|
8K Video Standards |
8160 x 7200 x 2 stereo immersive |
|
SMPTE Compliance |
SMPTE 2110‑20, SMPTE 2110‑21, SMPTE 2110‑30, SMPTE 2110‑40, SMPTE 2022-7 |
|
Color Precision |
10-bit 4:2:2 YUV |
|
Color Space |
Rec. 709, Rec. 2020. |
|
SDI Auto Switching |
Automatically detects HD and Ultra HD. |

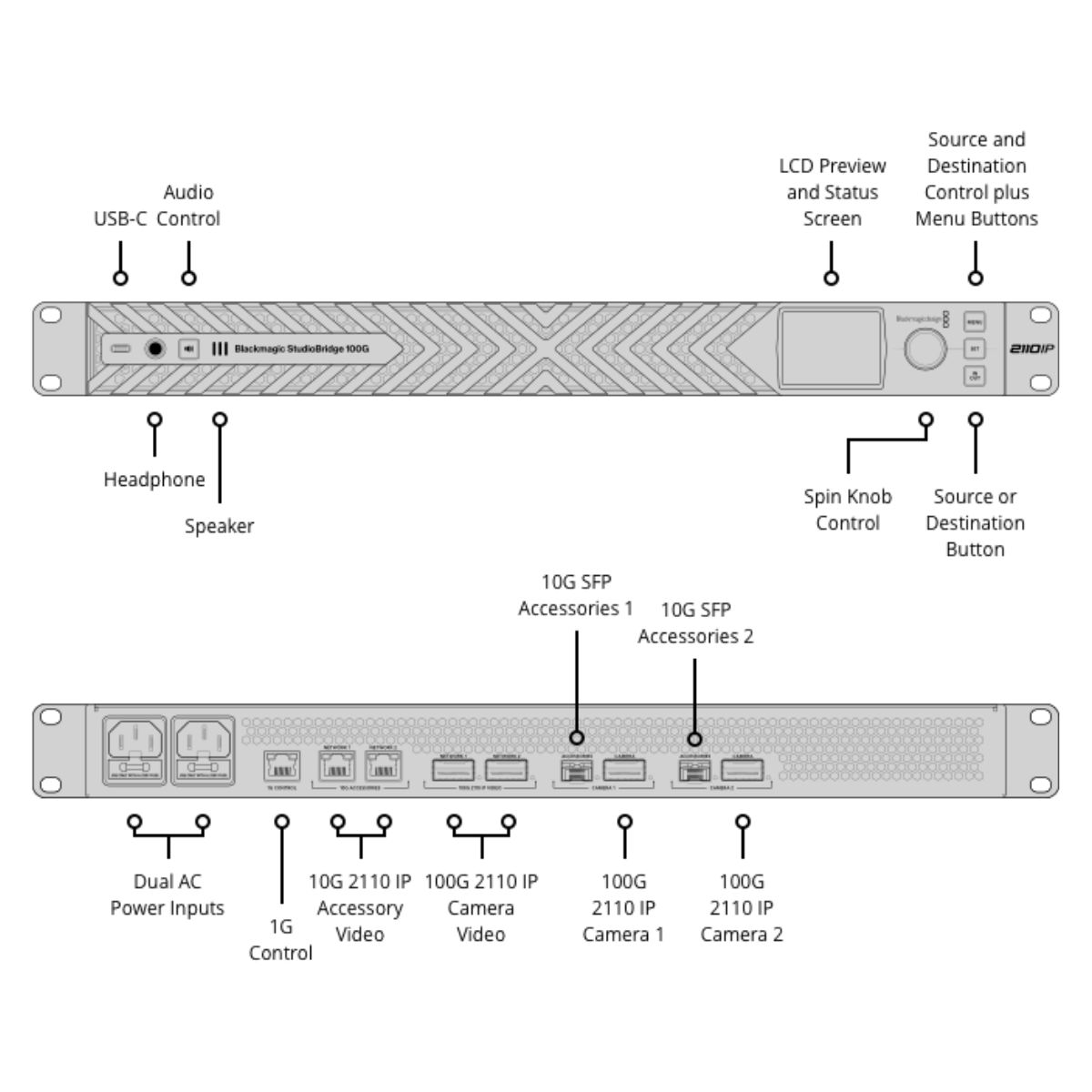

Connections
|
100G 2110 IP Networks |
2 x 100G QSFP28 Network connections. Supports ST 2022-7 redundant delivery of IP streams over the two ‘100G 2110 IP Video’ network connections. |
|
100G 2110 IP Camera |
2 x 100G QSFP28 Camera connections. |
|
Senders and Receivers per 100G Pair |
1 x 100G URSA Cine or 2 x URSA Cine Immersive / URSA Immersive. |
|
10G 2110 IP Networks |
2 x 10G SFP optical fiber connections. 2 x 10G RJ45 connections. |
|
Senders and Receivers per 100G Pair |
8 x Ultra HD or HD. |
|
1G Control Network |
1 x 1G RJ45 for NMOS control, configuration and software updates. |
|
SMPTE ST 2110 IP Audio Inputs |
16 Ch embedded audio on each 2110 IP video stream over 100G and 10G Ethernet. |
|
SMPTE ST 2110 IP Audio Outputs |
16 Ch embedded audio on each 2110 IP video stream over 100G and 10G Ethernet. |
|
Multi-Rate Support |
Auto detection of HD, Ultra HD and 4K. |
|
Computer Interface |
1 x USB-C for configuration and firmware updates. |
|
Power |
2 x IEC C14 power inputs. |
