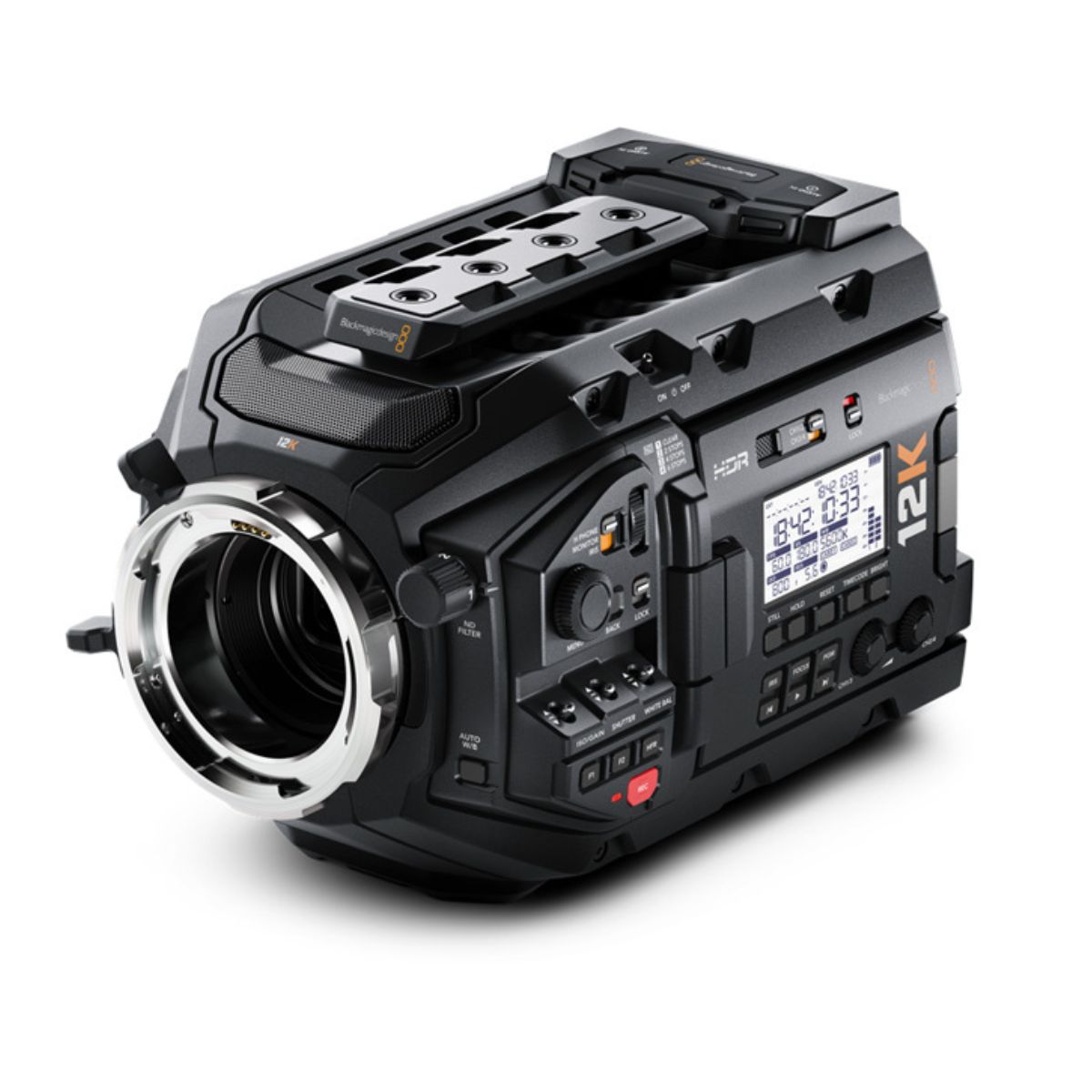

URSA Mini Pro 12K is a revolution in digital film with a 12,288 x 6480 12K Super 35 sensor and 14 stops of dynamic range. The third generation URSA Mini Pro features new color science and shoots 80 megapixels per frame in Blackmagic RAW. You also get built in ND filters, user-changeable lens mount, and recording to dual CFast or SD cards. URSA Mini Pro 12K even supports recording directly to a flash disk or SSD using its built-in SuperSpeed USB‑C connection!
|
Effective Sensor Size |
27.03mm x 14.25mm (Super35) |
|
Lens Mount |
PL mount included. Interchangeable with optional EF and F lens mounts. |
|
Lens Control |
12-pin broadcast connector for compatible lenses and electronic control via EF mount pins on the optional EF lens mount. |
|
Dynamic Range |
14 Stops |
|
High Speed Frame Rates |
12K 17:9 full sensor up to 60 fps 12K 2.4:1 up to 75 fps 8K DCI full sensor up to 120 fps 4K DCI full sensor up to 120 fps 8K 2.4:1 and 4K 2.4:1 up to 160 fps |
| 6K Super 16 up to 120 fps |
4K Super 16 up to 240 fps |
|
Built-in ND Filters |
Four-position ND filter wheel with clear, 2-stop, 4-stop, and 6-stop IR ND filters. |
|
Operating Temperature |
0° to 40°C (32° to 104°F) |
|
Storage Temperature |
-20° to 45°C (-4° to 113°F) |
|
Relative Humidity |
0% to 90% non-condensing |
