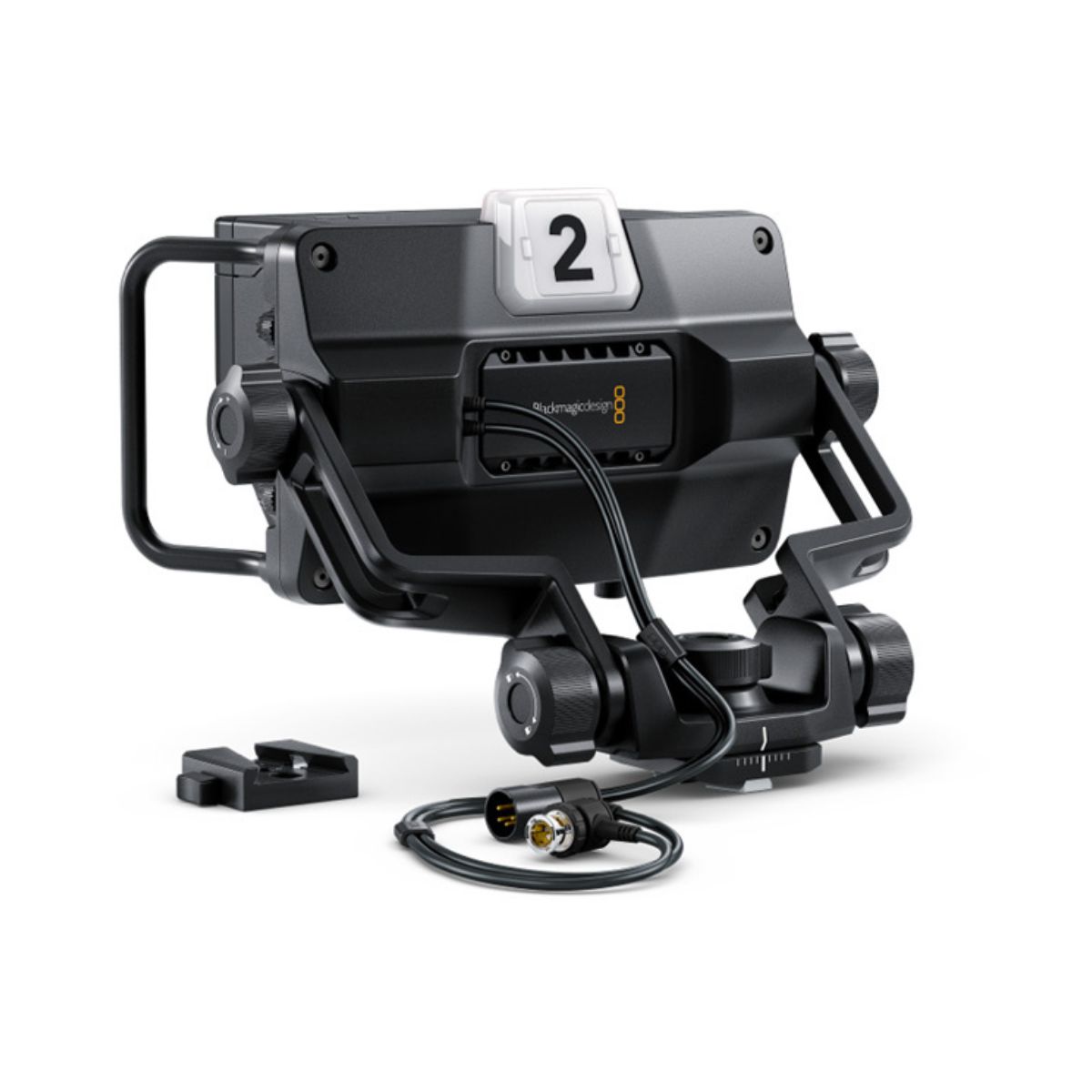

Blackmagic URSA Studio Viewfinder G2

When you’re working live in the studio or out at an event in a large venue such as a stadium, the URSA Studio Viewfinder G2 gives you everything you need to comfortably operate your URSA Mini in live production! The bright 7” screen has a detachable sunshade and includes large handles and an articulated pivot mount that let you position and move the viewfinder independent of the camera! The large rotary control dials and customizable function buttons let you make on the fly adjustments without having to take your eyes off the action! Set up is quick and easy using the included V-Lock plate, and it connects directly to the SDI monitor and power output on your URSA Mini, so you don’t need additional cables or power supplies.

Contact to Seller

SDI Video Input

1 x BNC.

SDI Rates

1.5G, 3G.

Power Input

1 x 4 pin XLR 12V.

Screen Dimensions

7" 1920 x 1200 resolution.

Screen Type

7" high-brightness TFT LCD

Screen Brightness

2000 nits

Computer Interface

1 x USB type C connector for initial setup and software updates via Blackmagic Camera Setup software.



Operating Temperature

0° to 40° C (32° to 104° F)

Storage Temperature

-20° to 60° C (-4° to 140° F)

Relative Humidity

0% to 90% non-condensing
