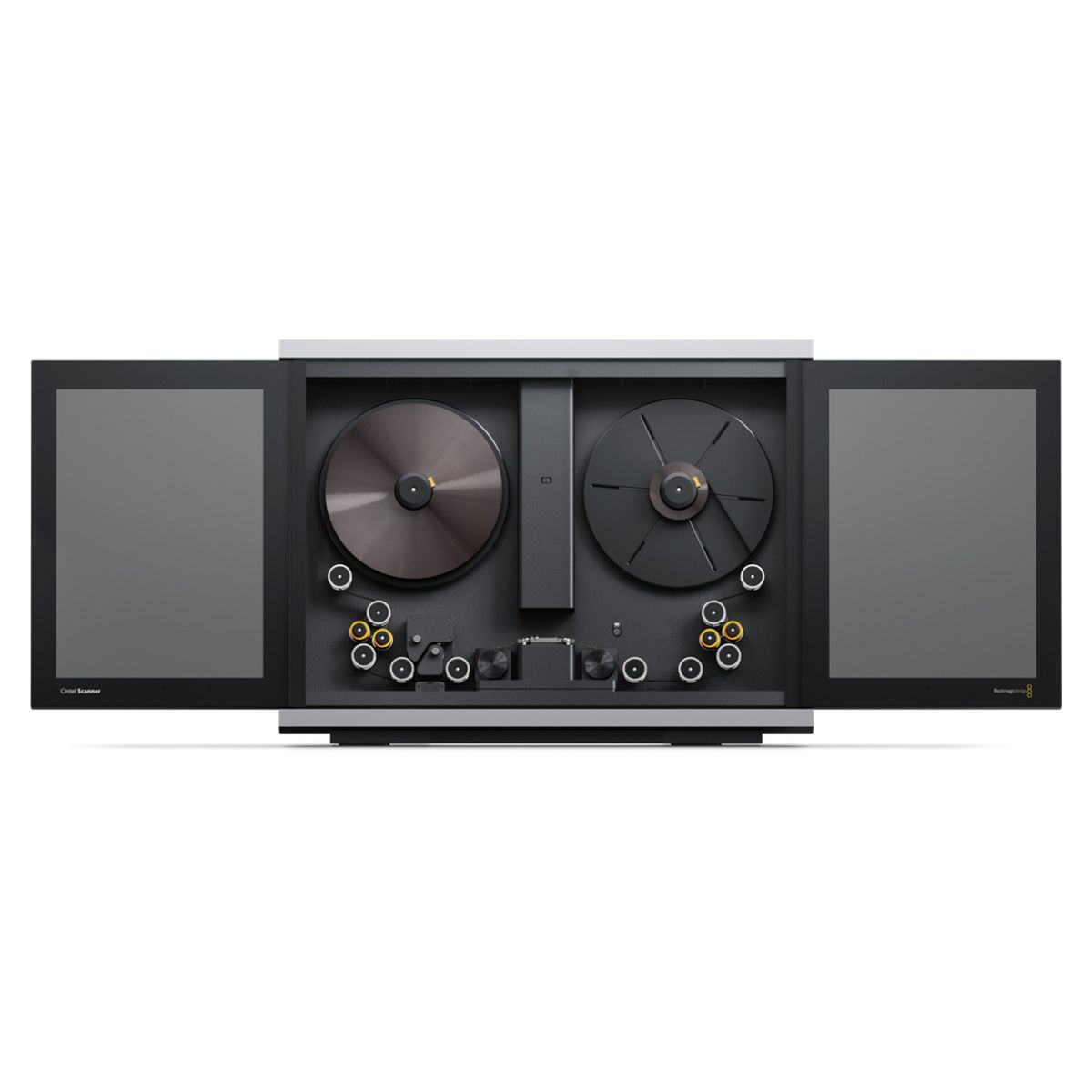

Cintel Scanner G3 HDR+

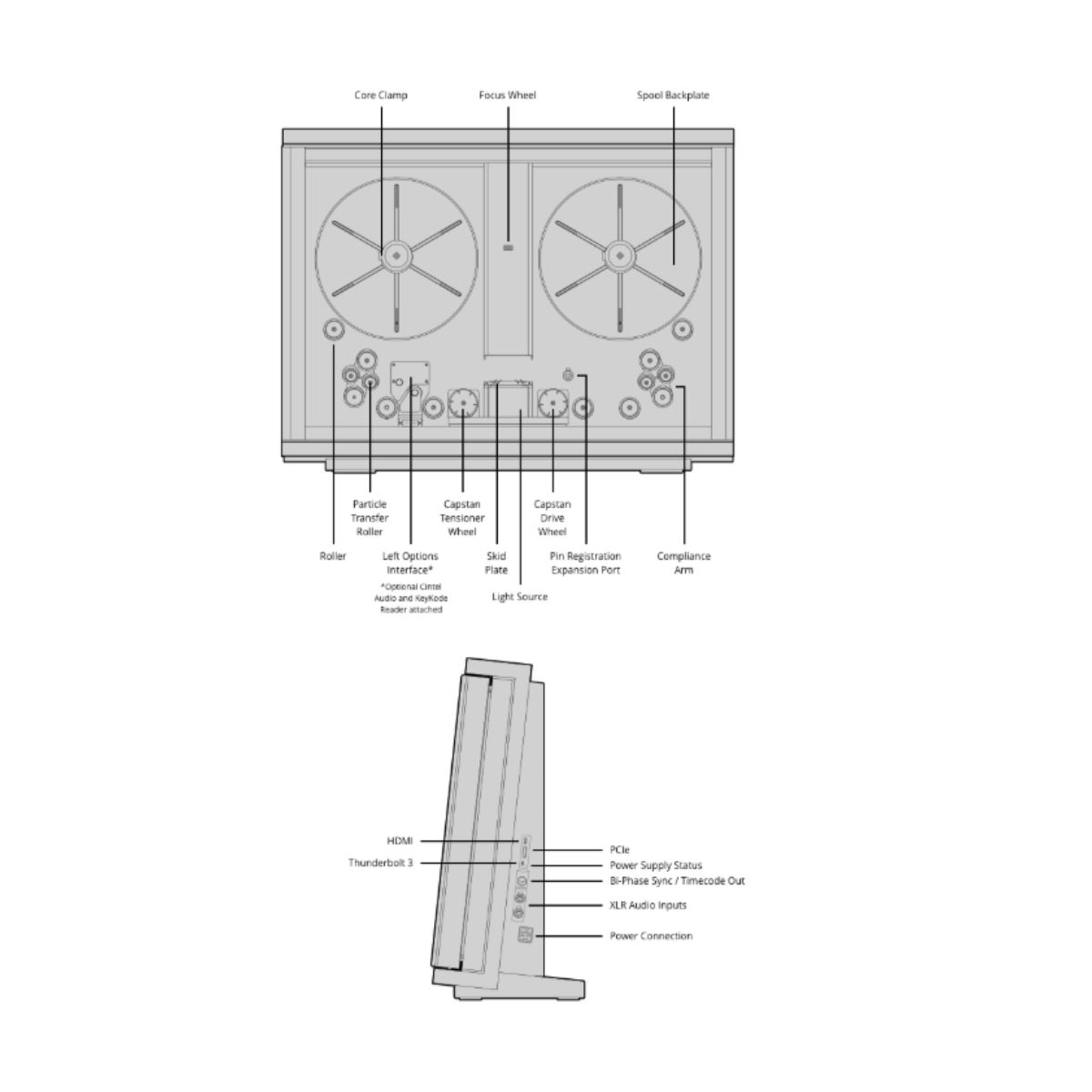

The Cintel Scanner is a complete solution to real-time film scanning and grading that features precision mechanical film handling components, optics, a high intensity diffuse light source, and a built-in camera. The precision capstans handle film more gently than ever before. Cintel Scanner includes a 35mm film gate, film spools, a set of four cleaning rollers, desk mount feet, and DaVinci Resolve Studio software. Cintel transfers film directly to DaVinci Resolve, which gives you the power to edit film rolls back together, scans to be color graded, reframed, noise reduced, and audio extracted. Using DaVinci Resolve to operate the scanner means you have much more creative control than a simple telecine because DaVinci Resolve has many more features than is possible to do in hardware.

Contact to Seller

Film Stocks

Print, Negative, Interpositive, Internegative.

Mono and Color.

Film Gauges

35mm (2, 3, 4 perforations),

Super 35mm (2, 3, 4 perforations).

16mm, Super 16mm

8mm, Super 8mm

Native Resolution

4096 x 3072

Effective Resolutions

3840 x 2880 - Super 35

3390 x 2465 - Standard 35

3390 x 2865 - Anamorphic 35

1903 x 1143 - Super 16

1581 x 1154 - Standard 16

892 x 638 - Super 8

752 x 567 - Standard 8

HDMI Formats

3840 x 2160 Ultra HD

1920 x 1080 HD

(auto-selected to match monitor resolution)

Dynamic Range

Normal Scans: 12 stops

HDR Scans: up to 3.5 additional stops



Connections

HDMI Video Output

1 x HDMI 1.4 10-bit 4:2:2 for preview purposes only.

Computer Interface

Thunderbolt™ 3 for capture of image and audio, software updates, and supports USB-C charging with 15W at 5V.

PCI Express 4 lane generation 2.

Bi-phase/Timecode Output

XLR3 Bi-phase: 4.5 Volt DC coupled.

Timecode: 1.5 Volt DC coupled with support for 24, 25, and 30 fps.

Analog Audio Inputs

2 Channels of professional balanced analog audio with sample rate converter via XLR connectors with 10dBV levels.

AES/EBU Audio Input

1 Channel with sample rate converter on XLR connector.

Options Interface

XLR6
