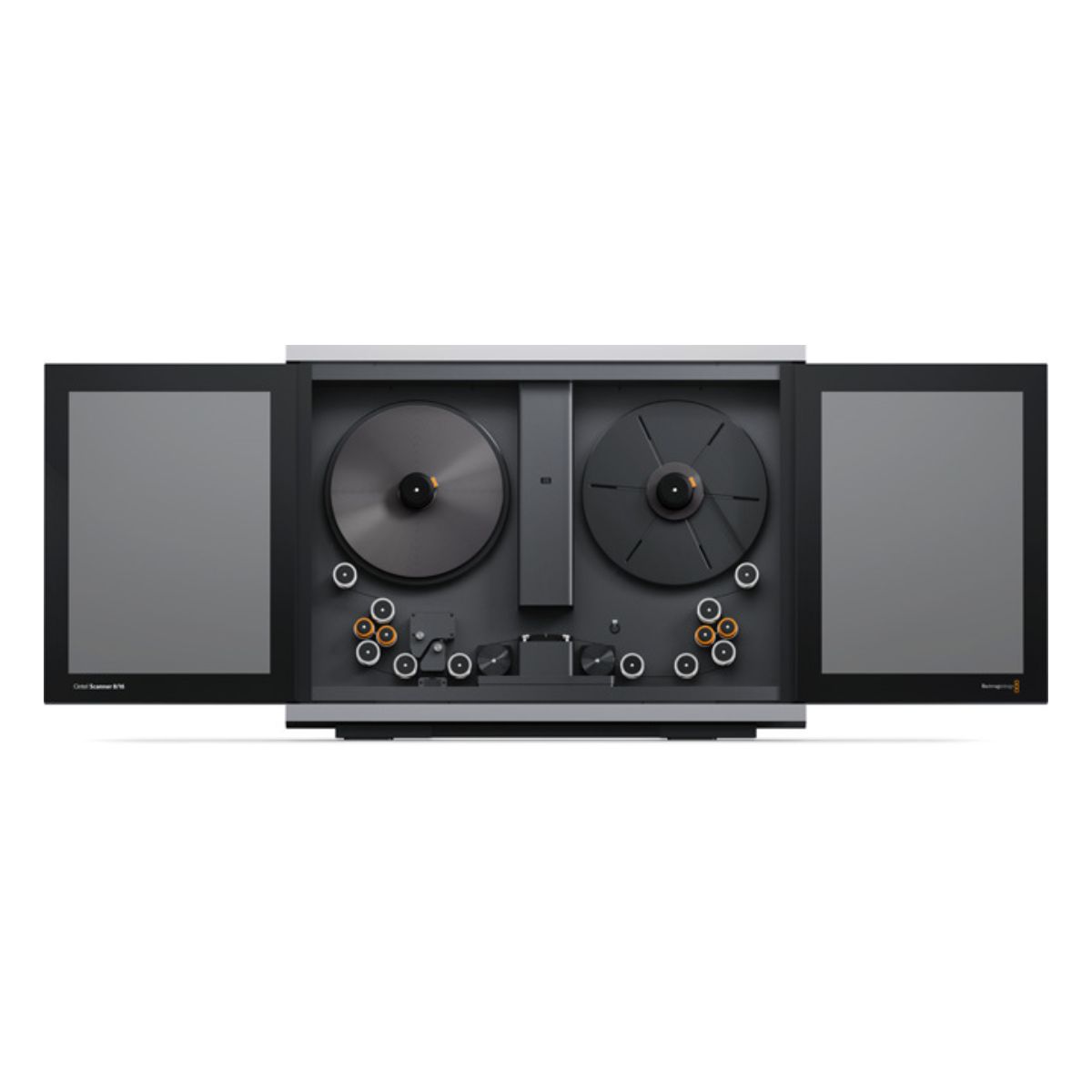

Cintel Scanner G3 HDR+ 8/16 is an advanced 8mm HD and 16mm Ultra HD film scanner with optics specifically designed for higher resolution capture of smaller format film. Includes capstan-based transport for delicate archive film, a new light source for higher speed, real-time HDR, powerful film restoration tools with DaVinci Resolve, and scanning via Thunderbolt to Mac and Windows computers.
|
Film Stocks |
Print, Negative, Interpositive, Internegative. Mono and Color. |
|
Film Gauges |
16mm, Super 16mm 8mm, Super 8mm |
|
Native Resolution |
4096 x 3072 |
|
Effective Resolutions |
2966 x 1781 - Super 16 2464 x 1798 - Standard 16 1390 x 994 - Super 8 1172 x 884 - Standard 8 |
|
HDMI Formats |
3840 x 2160 Ultra HD 1920 x 1080 HD (auto-selected to match monitor resolution) |
|
Dynamic Range |
Normal Scans: 12 stops HDR Scans: up to 3.5 additional stops |
Connections
|
HDMI Video Output |
1 x HDMI 1.4 10-bit 4:2:2 for preview purposes only. |
|
Computer Interface |
Thunderbolt™ 3 for capture of image and audio, software updates, and supports USB-C charging with 15W at 5V. PCI Express 4 lane generation 2. |
|
Bi-phase/Timecode Output |
XLR3 Bi-phase: 4.5 Volt DC coupled. Timecode: 1.5 Volt DC coupled with support for 24, 25 and 30 fps. |
|
Analog Audio Inputs |
2 Channels of professional balanced analog audio with sample rate converter via XLR connectors with 10dBV levels. |
|
AES/EBU Audio Input |
1 Channel with sample rate converter on XLR connector. |
|
Options Interface |
XLR6 |
