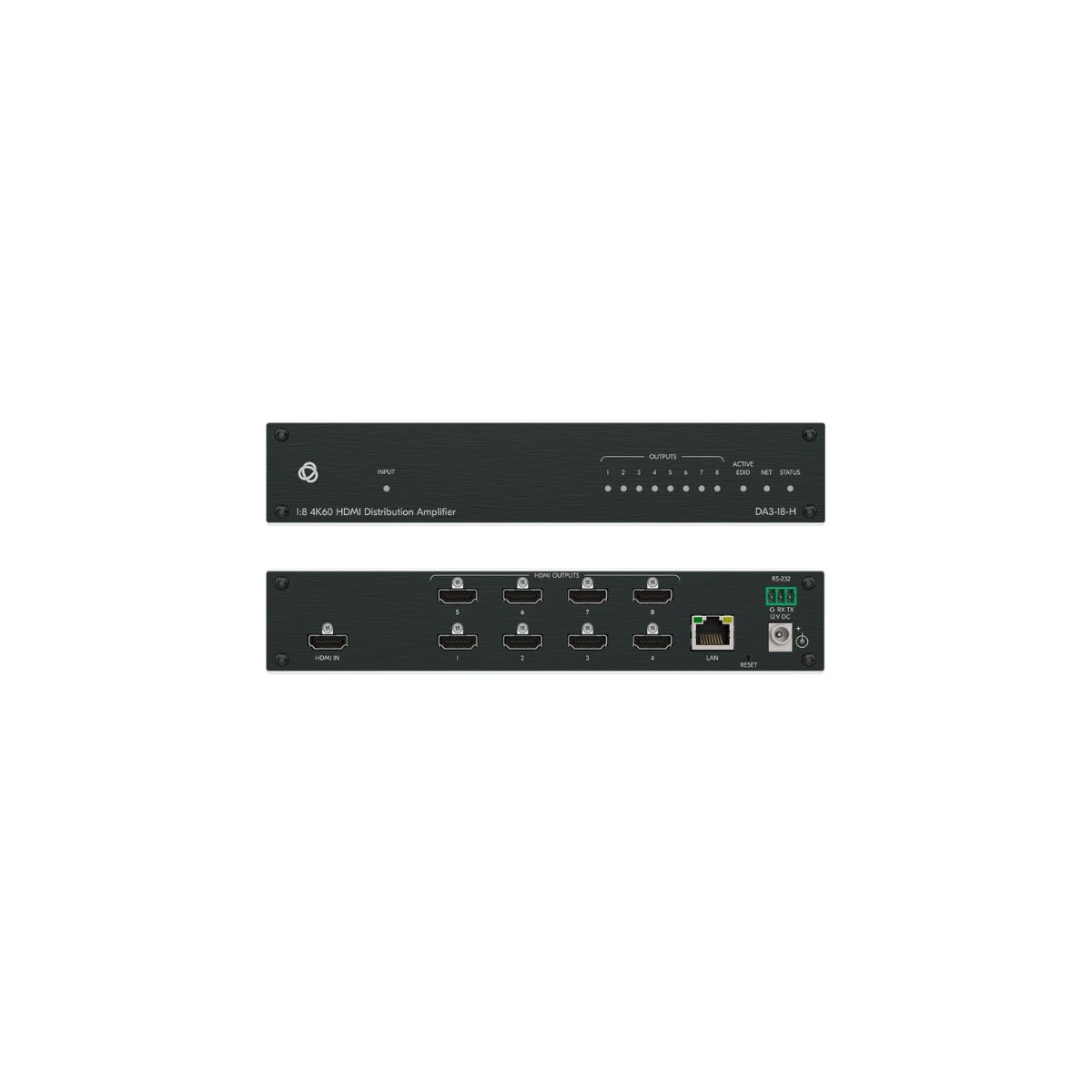

DA3-18-H

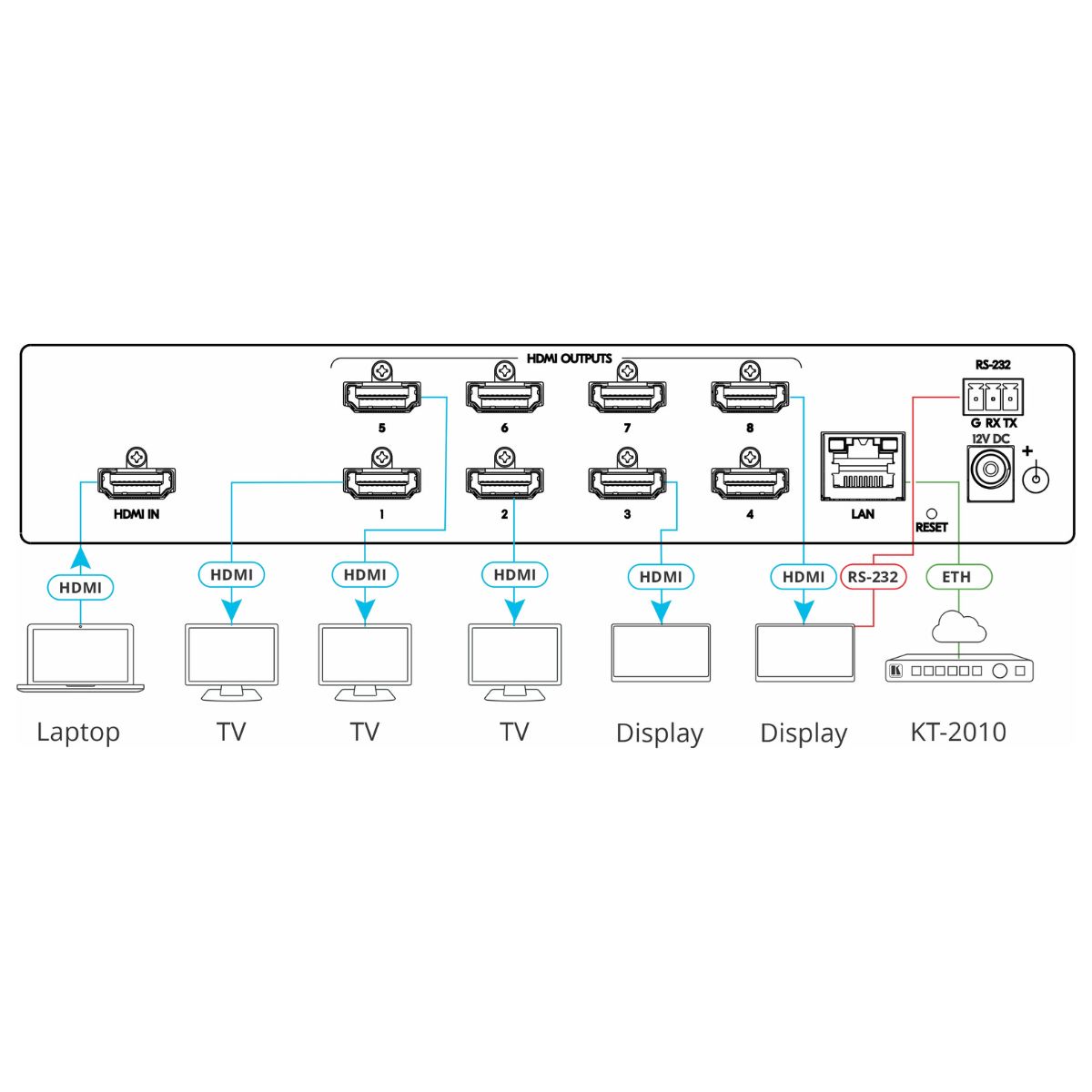

DA3−18−H is a 1:8 distribution amplifier for up to 4K 8K HDR, HDMI signals that comply with HDCP 2.2 content protection standard. The unit takes one HDMI input, equalizes and re−clocks the signal, and distributes it to eight identical outputs

Contact to Seller
  • 1:8 HDMI Distributor Amplifier
  • Fully managed (WEB GUI/P3K protocol)
  • Automatic down–scaling per output
  • Resolution — Up to 4K@60Hz (4:4:4)
  • Compliance — HDR10, HDCP 2.2
  • Simple, intelligent EDID operation
  • Force RGB
  • HDCP authorization control

INPUT

  • 1 HDMI connector

OUTPUTS

  • 8 HDMI connectors

PORT

  • 1 1000BaseT Ethernet
  • 2 RS–232

VIDEO

  • Max Bandwidth: 18Gbps (6Gbps per graphic channel)
  • Max Resolution: 4K@60Hz 4:4:4 24bpp resolution
  • Content Protection: HDCP 2.2
  • Compliance: HDMI 2.0b

SECURITY

  • Web–UI Communication: HTTPS
  • User Access: Multiple roles and credentials
  • IT LAN Authentication: 802.1x
  • Penetration Protection Certification: OWASP–10

POWER

  • Source: 12 VDC
  • Max Consumption: 18W
