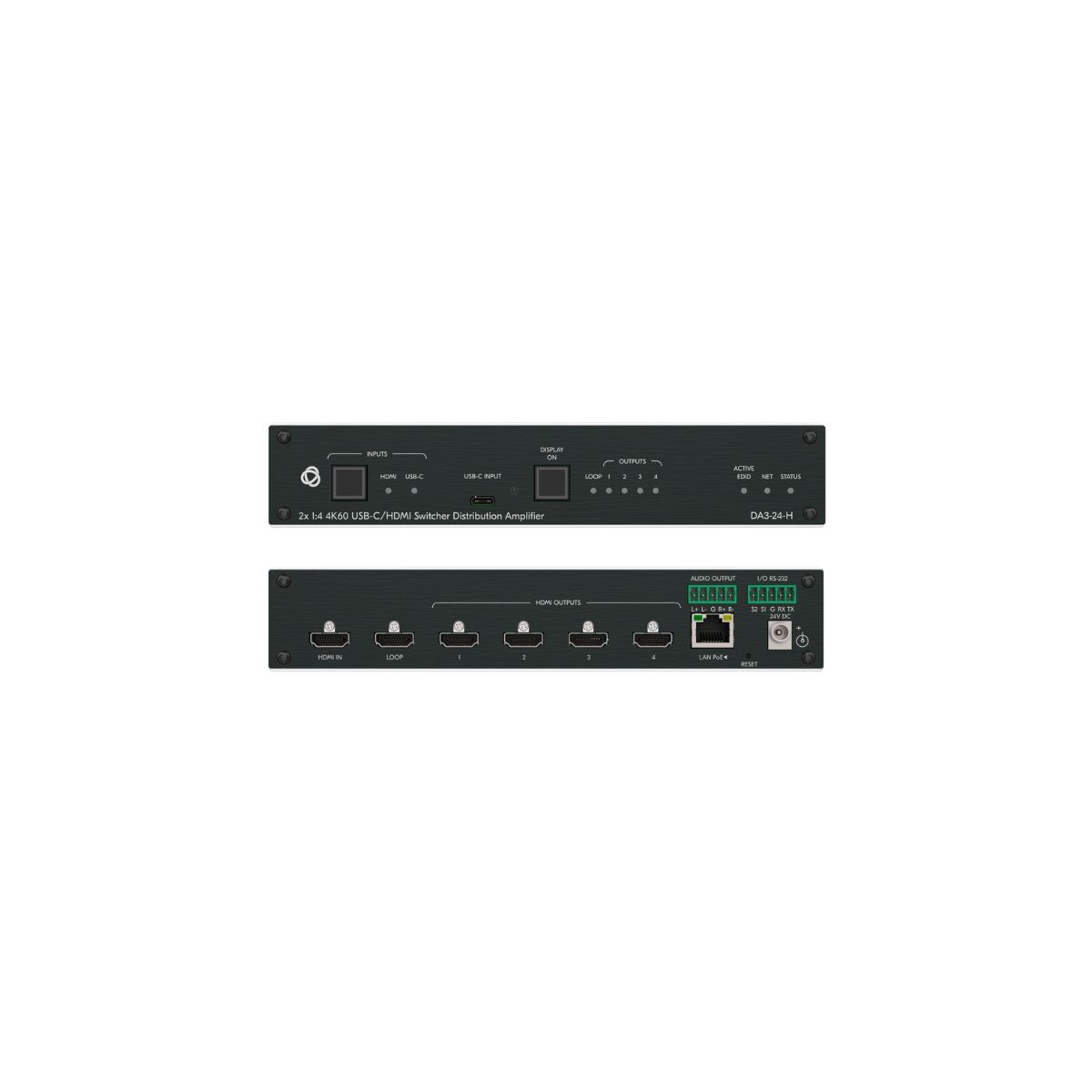

DA3-24-H

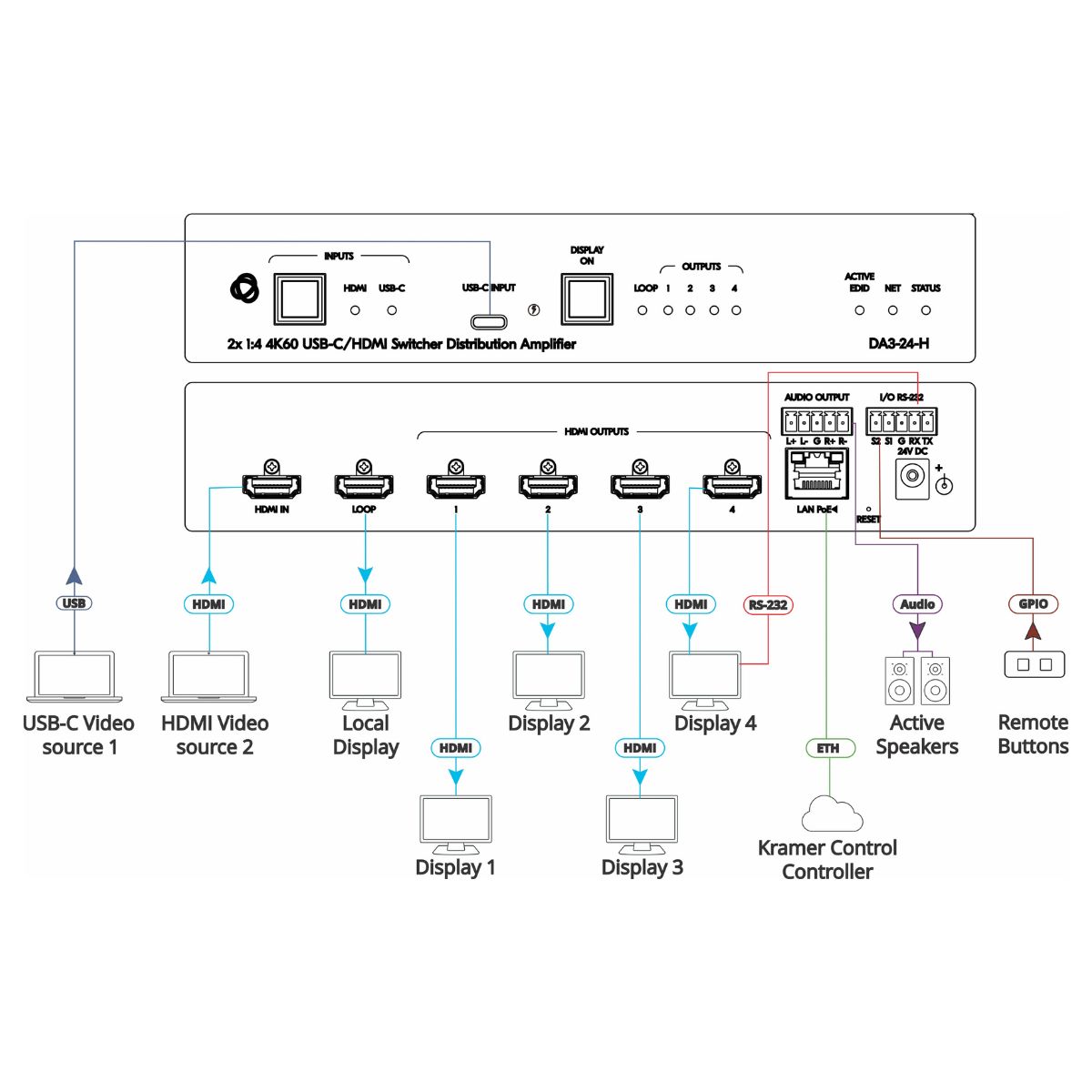

DA3−24−H is a premium 2x1:4 switcher and distribution amplifier for up to 4K HDR video signals that comply with HDCP 2.2 content protection standard. The unit switches between one of two inputs, HDMI or USB−C, equalizes and re−clocks the selected signal, and distributes it to four identical outputs.

Contact to Seller
  • Combined 2:1 switcher and 1:4 distributor amplifier
  • HDMI and USB–C video inputs
  • Automatic downscaling per output
  • Fully managed (WEB GUI/P3K protocol)
  • Resolution — Up to 4K@60Hz (4:4:4)
  • Analog audio extraction
  • Compliance — HDR10, HDCP 2.2
  • Simple, intelligent EDID operation
  • Force RGB
  • HDCP

Inputs

  • 1 HDMI: On a female HDMI connector
  • 1 USB-C: On a USB Type–C female connector

Outputs

  • 4 HDMI: On female HDMI connectors
  • 1 HDMI local: On a female HDMI connector

Ports

  • 1 1000BaseT Ethernet: On an RJ–45 female connector for LAN connection & extension
  • Analog Audio: On a 5–pin R–L analog audio output
  • IO: On 2–pin terminal block connectors
  • 2 RS-232: On 3–pin terminal block connectors

Video

  • Max Bandwidth: 18Gbps (6Gbps per graphic channel)
  • Max Resolution: 4K@60Hz 4:4:4 24bpp resolution
  • Content Protection: HDCP 2.3
  • Compliance: HDMI 2.0b

Security

  • Web-UI Communication: HTTPS
  • User Access: Multiple roles and credentials
  • IT LAN Authentication: 802.1x
  • Penetration Protection Certification: OWASP–10

Power

  • Source: 20 VDC
  • Max Consumption: 76W
  • Max Power Providing Per HDMI Port: 2.5W (5V@0.5A)
